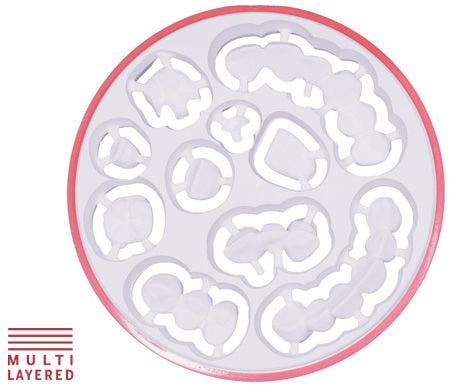

Diseño revolucionario de disco todo en uno

Esta innovadora combinación de materia prima de circonio de alta translucidez y resistencia es la mejor opción para su laboratorio dental.
KATANA™ Zirconia YML ofrece eficiencia, claridad, simplicidad y precisión cuando se trata de manipular un producto sin comprometer la calidad de su resultado.

¿POR QUÉ USAR KATANA™ Zirconia YML?

SOLUCIÓN TODO EN UNO

Todo el espectro de indicaciones está cubierto gracias a la combinación de alta translucidez y resistencia.

IMPECABLE ESTRUCTURA MULTICAPA

KATANA™ Zirconia YML combina tres materias primas con diferentes contenidos de yttria, dando lugar a una mezcla bien equilibrada de color/translucidez y gradación de resistencia a la flexión.

ESTÉTICA SENCILLA

La impecable tecnología multicapa elimina las líneas visibles de transición entre capas, realzando el color natural y la translucidez, y asegurando a su vez un procedimiento simple que ahorra tiempo.

CONTROL DE LAS DEFORMACIONES DE COCCIÓN

La exactitud en el ajuste de las restauraciones después del proceso de sinterizado reduce los riesgos de remanufacturación, lo que supone un ahorro de tiempo y materiales.

PROCESAMIENTO RÁPIDO

¿Reconstrucciones y casos urgentes? El sinterizado de alta velocidad (54 min) ofrece nuevas oportunidades. Termine el trabajo fácilmente en un día.

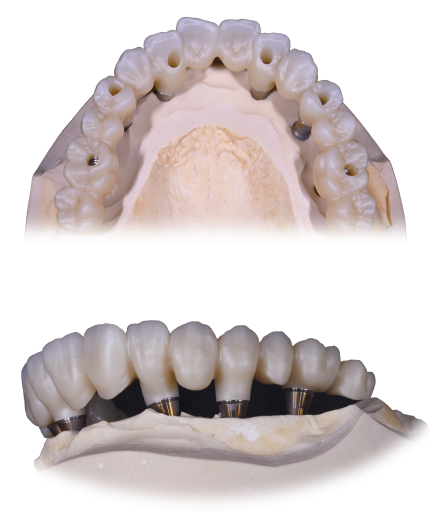

Basado en KATANA™ Zirconia YML A3 con CERABIEN™ ZR FC Paste Stain
Cortesía del técnico dental Marco Stoppaccioli – L’Aquila

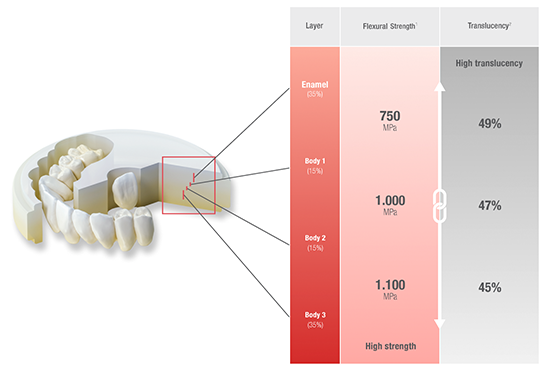

Image - desktop

(..%) porcentaje del grosor de cada capa en un disco

Condiciones de medición:
Evaluados por material de base (color blanco)
1 De acuerdo a lo dispuesto en la norma ISO 6872:2015, Tamaño de la muestra: 3 x 4 x 40 mm
2 Toda la transmisión de luz, iluminante: D65, Grosor de la muestra: 1,0 mm

Fuente de los datos: Noritake Dental Inc. El valor numérico varía dependiendo de una condición.

Image - mobile

(..%) porcentaje del grosor de cada capa en un disco

Condiciones de medición:
Evaluados por material de base (color blanco)
1 De acuerdo a lo dispuesto en la norma ISO 6872:2015, Tamaño de la muestra: 3 x 4 x 40 mm
2 Toda la transmisión de luz, iluminante: D65, Grosor de la muestra: 1,0 mm

Fuente de los datos: Noritake Dental Inc. El valor numérico varía dependiendo de una condición.

Tecnología innovadora multicapa

KATANA™ Zirconia YML ha sido desarrollado sobre la base del concepto “lifelike” (realista), que proporciona el color y la translucidez de un diente auténtico de una manera precisa y natural.

Capa de esmalte

Para proporcionar alta translucidez que no desentone con los demás dientes.

Capa de cuerpo 1

Para proporcionar un color y translucidez impecables a la capa de esmalte.

Capa de cuerpo 2, 3

Para proporcionar un color profundo e intenso, mientras se reduce el blanqueamiento.

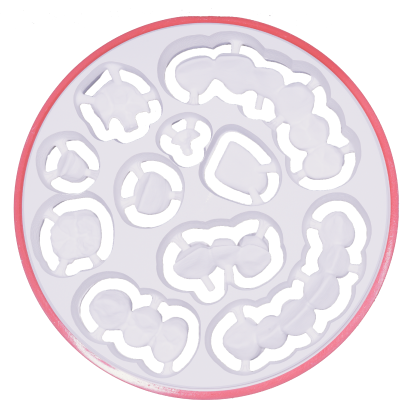

Versatilidad en el rango de aplicación

SOLUCIÓN TODO EN UNO

Diseño excepcionalmente flexible: desde carillas a restauraciones de arcada completa. En cada caso, se puede escoger un diseño monolítico, reducido o de estructura con el procedimiento de fabricación más apropiado dependiendo de las necesidades de cada individuo.

  • Puentes de gran envergadura
  • Puentes de tres unidades
  • Coronas
  • Inlays y Onlays
  • Carillas laminadas

SACANDO EL MÁXIMO PARTIDO A LAS CARACTERÍSTICAS DE KATANA™ Zirconia YML

CONTROL DE LAS DEFORMACIONES DE COCCIÓN

Gracias a sus capas de diferentes composiciones, se consiguen la reducción de alta precisión y unos valores CTE estables al controlar todo el proceso, desde el refinamiento hasta el moldeado. El extenso control de calidad en combinación con nuestro exclusivo proceso interno de tratamiento de materias primas nos permite ofrecer el mejor circonio de todos los tiempos.

Nos diferenciamos del resto por nuestro proceso interno de producción y tratamiento del circonio como materia prima, que garantiza el suministro de un material completamente fiable.


CÓMO FUNCIONA

Video

Reducción para restauraciones
más finas

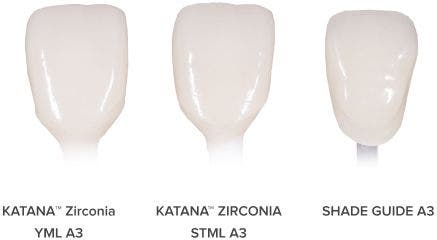

COMPARATIVA CON CIRCONIO DE ALTA TRANSLUCIDEZ

A continuación, se muestran KATANA™ Zirconia YML y STML con un grosor de capa de cuerpo ajustado a 0,4 mm para YML, y 0,8mm para STML. La capa de cuerpo de YML puede ajustarse de manera más fina, incrementando así su translucidez.

*Grosor mínimo recomendado por el fabricante.

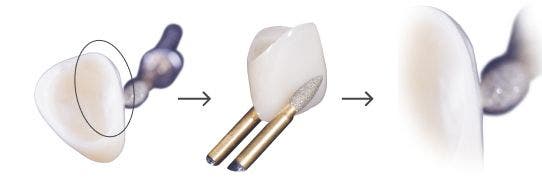

ESTABILIDAD MARGINAL Y PRECISIÓN DE ADAPTACIÓN MEJORADA

KATANA™ Zirconia YML ofrece márgenes fuertes y menos desprendimientos, dando a lugar una mejor adaptación marginal. Las restauraciones más finas muestran que este buen resultado en márgenes fuertes se consigue gracias al uso de KATANA™ Zirconia YML.


Incluso si los márgenes de la restauración han sido fresados hasta un perfil muy fino,
siguen mostrando márgenes suaves sin astillamientos o desprendimientos.

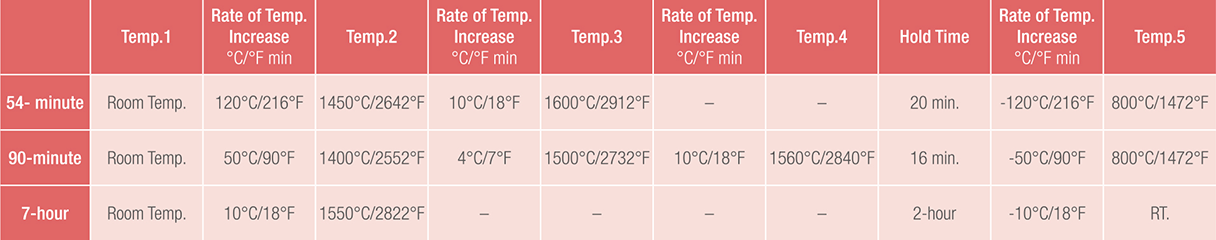

Sinterización de alta velocidad de puentes de hasta 3 unidades

La excelente calidad combinada con la velocidad es una característica absolutamente
única de KATANA™ Zirconia sobre todos los productos de la competencia.

Chart

La recomendación de sinterización anterior es solo una guía; es posible que se requieran algunos ajustes dependiendo del horno usado.
En el caso de la sinterización de 54 o 90 minutos, si no se puede configurar de acuerdo con el programa, significa que no se puede sinterizar.

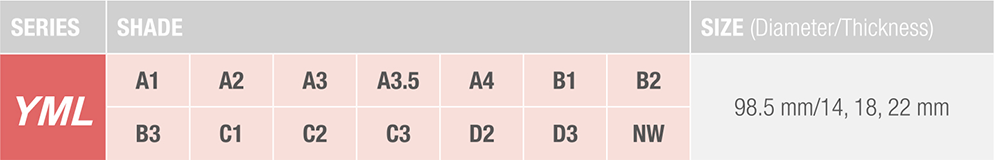

Selección de tono / grosor

Seleccione el tono objetivo y el grosor correcto del disco para lograr una graduación
adecuada entre la longitud de la corona, el esmalte y el cuerpo (dentina).

Chart

El color de KATANA™ Zirconia YML debe fijarse para el glaseado. Tenga en cuenta que, durante el proceso de pulido, tiende a oscurecerse. Por lo tanto, seleccione un tono más claro que el color de tono final.

  • Muy valorado a nivel internacional



    Testimonios

  • Afbeelding Professor Dr. Florian Beuer
  •

    Profesor Dr. Florian Beuer
    Alemania

    “Nuevo material de circonio que combina resistencia y translucidez en un solo disco. Proporciona estabilidad donde es preciso y estética donde se necesita. Lo mejor de ambos mundos.”

  •

    Nondas Vlacholoulos, técnico dental
    Grecia

    “Un material para cada aplicación con la máxima estética, resistencia y fiabilidad.”

  • Afbeelding Nondas Vlacholoulos, MDT
  • Afbeelding Daniele Rondoni, MDT
  •

    Daniele Rondoni, técnico dental
    Italia

    “La petición de evolución del circonio es una combinación perfecta de propiedades ópticas y resistencia. Por fin podemos unir estética y durabilidad para las restauraciones con KATANA Zirconia YML gracias a la nueva tecnología de Kuraray Noritake Dental.

  •

    Andreas Chatzimpatzakis, técnico dental
    Grecia

    “Si me preguntas por qué uso YML, la respuesta es... Υπεροχή (η) [Yperochí ]: Excelencia… ¡en estética, fuerza y fiabilidad!”

  • Afbeelding Andreas Chatzimpatzakis, MDT
  • Afbeelding Martin Laurik, MDT
  •

    Martin Laurik, técnico dental
    Estonia

    “La estética superior de Katana YML es una gran opción para las coronas monolíticas, a la vez que ofrece una resistencia fiable en situaciones exigentes.”

  •

    Michael Braian, técnico dental
    Suecia

    “Esto es lo que he estado buscando, un circonio multicapa con una resistencia asombrosa de arriba abajo. En algunos casos, hacer la caracterización de la superficie parece una exageración.”

  • Afbeelding Michael Braian, MDT

Productos

Para hacer un pedido, elija entre las siguientes opciones.

KATANA™ Zirconia YML 14MM
KATANA™ Zirconia YML 14MM
-
+
KATANA™ Zirconia YML 18MM
KATANA™ Zirconia YML 18MM
-
+
KATANA™ Zirconia YML 22MM
KATANA™ Zirconia YML 22MM
-
+

Preguntas más frecuentes

Hemos elaborado una lista de respuestas a las preguntas más pertinentes.

How do the mechanical properties of the KATANA™ Zirconia series differ from each other?

The existing KATANA™ Zirconia multi-layered materials (KATANA™ Zirconia UTML/ STML/HTML) have a color gradation, while the base material of the respective type is the same for all layers. The strength and translucency are the same for all layers of the respective type.



KATANA™ Zirconia YML is different in this regard. It is the latest KATANA™ multi-layered disc with a balanced combination of color/translucency and flexural strength gradation. Please refer to chart below, for the overview of the mechanical properties and translucency levels of each type of KATANA™ disc.

Gradation map and physical properties of KATANA™ Zirconia YML



Comparison of physical properties of KATANA™ zirconia series



What exactly does “All-In-One” mean?

“All-In-One” means all application range with one disc. KATANA™ Zirconia YML is characterized by a unique raw material combination of highly translucent zirconia with high strength, which are integrated together by an advanced manufacturing technology. As an “All-In-One” solution, KATANA™ Zirconia YML offers exceptional design flexibility, from long-span full-arch monolithic bridge restorations up to highly aesthetic anterior monolithic crown restorations.

What are the recommended and indicated application areas for KATANA™ Zirconia YML?

From complicated full-arch restorations to highly aesthetic demanding anterior single-unit restorations, an exceptional design flexibility is available. In each of these cases, you can choose a monolithic, cut-back or framework design with the appropriate fabrication process, depending on your specific needs.



 Framework

 Long span bridge

 Anterior / posterior crown

 Inlay, onlay

 Laminate veneer

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials. By using materials that Kuraray Noritake Dental Inc. has developed themselves specifically for the KATANA™ Zirconia series, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.

What shade selection is available for KATANA™ Zirconia YML and in which disc thicknesses and shapes are these available?

KATANA™ Zirconia YML is available in a shade selection of 14 shades, which are adapted to the VITA-classical A1-D4™ Shade Guide. Please refer to the following table overview for more information about shape and disc-thickness.



Shade / Thickness selection



What should be kept in mind when designing restorations with KATANA™ Zirconia YML?

Please observe the following guidelines of applicable minimum wall thickness:





The thickness specifications apply to full zirconia restorations. The thickness of build-up porcelain is not included. The minimum wall thicknesses apply to full zirconia restoration or to frame-work for build-up porcelain restoration. In these cases, 0.4 mm (anterior) or 0.5 mm (posterior) should be kept for the area located in the bottom (lower) half of the disc. If full zirconia veneer restoration is used for combination with the porcelain, 0.8 mm or more should be kept for the area located in the upper half of the disc.



Please observe the following guidelines of applicable cross-section wall thickness:





3 units or less Connector cross-section area can be placed in any layer.



A

The maximum number of pontics is one. Not suitable for a cantilevered bridge. 4 units or more - at least 50% of the connector cross section should be positioned in the bottom (lower) half of the disc.



B

The maximum number of pontics between two abutments (teeth) should not exceed two. For cantilever bridge, keep the number of pontics at one. In this case, the connector cross-section must be at least 12 mm.

What is the sintering schedule of KATANA™ Zirconia YML?

Please observe the following of sintering schedule:





The above sintering recommendations represent only a guideline; depending on each individual furnace and condition, some adjustments might be necessary. If the 54 or 90-minute sintering program is not programmable in your furnace, it is not possible to set the furnace according to one of these schedules.

Is it possible to speed sinter a KATANA™ Zirconia YML long span bridge?

No, this is not possible. 54- or 90-minute sintering is only possible for up to a three-unit bridge restorations.

How is the crystal distribution within KATANA™ Zirconia YML structured?

The body layer has a higher content of tetragonal crystals, while the cubic content gradually increases towards the enamel layer.

Which finalization methods are recommended for KATANA™ Zirconia YML?

KATANA™ Zirconia YML can be finalized by glazing, staining or porcelain application. With an integrated translucency, color and strength gradient, KATANA™ Zirconia YML is designed to achieve highly aesthetic results by simply using the glazing technique. In case of additional color adjustments, characterizations or individualizations are desired, the unique CERABIEN™ ZR (CZR) FC Paste Stain can be used to achieve the final high aesthetic result according to your preferences.

Is it also possible to finalize KATANA™ Zirconia YML restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with the PEARL SURFACE™ Z (polishing paste). Please note that the shade of KATANA™ Zirconia YML should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

Is it possible to wet mill KATANA™ Zirconia YML?

It is generally not recommended to wet-mill KATANA™ Zirconia, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce the translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots on the restoration during the sintering process. Causes for this are for example oily fingers, excessive purging with high air pressure, residuals of silicon point substance that has been applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that has been created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Is it possible to use coloring liquids from other manufacturers for KATANA™ Zirconia YML?

This is not recommended, as the desired level of translucency or color development cannot be achieved.

Are the sintering schedules for KATANA™ Zirconia the same as other existing zirconia products?

The sintering parameters differ from other manufacturers’ zirconia products. The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Note: The material is removed from the furnace at 800°C. High-speed sintering is possible for up to three-unit bridge restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace capable of setting the KATANA™ Zirconia YML sintering program according to its technical specifications can be used, regardless of the manufacturer. If the KATANA™ Zirconia YML sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multilayer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration. Please refer to our “Handy Chart” as a guideline for this.

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which a “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).
