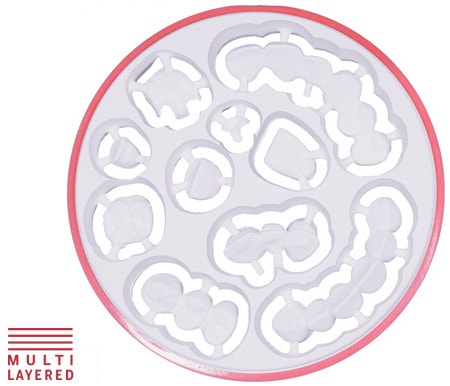

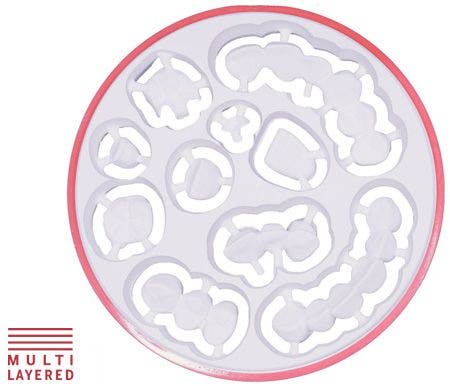

Proiectare revoluționară all-in-one disc

Această combinație inovatoare de materii prime de zirconiu cu transluciditate ridicată și rezistență crescută va da putere laboratorului dentar.
KATANA™ Zirconia YML oferă eficiență, claritate, simplitate și precizie în manipulare fără a compromite calitatea rezultatelor!

DE CE SĂ FOLOSIȚI KATANA™ Zirconia YML?

SOLUȚIA ALL-IN-ONE

Întregul spectru de indicații poate fi acoperit datorită combinației dintre transluciditate ridicată și rezistență ridicată.

STRUCTURĂ MULTI-STRAT PERFECTĂ

KATANA™ Zirconia YML se potrivește cu trei materii prime cu conținut diferit de yttria, combinând o culoare bine echilibrată/transluciditatea și rezistența la flexiune.

ESTETICĂ SIMPLĂ

Tehnologia multistrat fără îmbinare elimină liniile de delimitare, evidențiind culoarea naturală și transluciditatea și asigurând o procedură simplificată, care economisește timp.

DEFORMARE LA ARDERE CONTROLATĂ

Precizia restaurărilor după procesul final de sinterizare reduce riscurile unei refaceri. Fără pierderi de timp și materiale.

PROCESARE RAPIDĂ

Refaceri și cazuri urgente? Sinterizarea foarte rapidă (54 de minute) oferă oportunități complet noi. Finalizați cu ușurință lucrarea într-o singură zi.

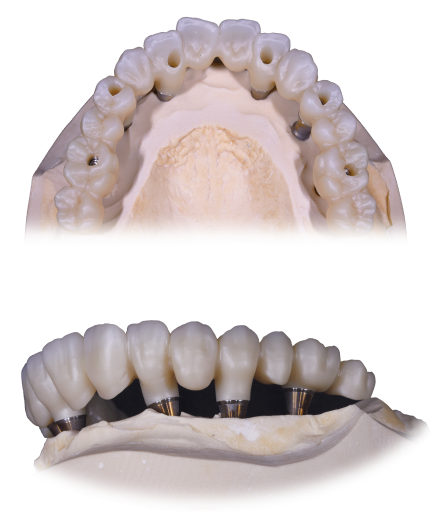

Bazat pe KATANA™ Zirconia YML A3 cu CERABIEN™ ZR FC Paste Stain
Cu amabilitatea TD Marco Stoppaccioli – L’Aquila

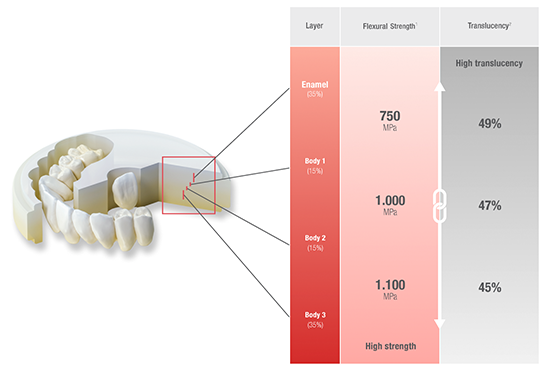

Image - desktop

(..%) grosimea fiecărui strat dintr-un disc în %

Condiții de măsurare:
Evaluat după materialul de bază (culoare albă)
1 Conform ISO 6872: 2015, dimensiunea probei: 3 x 4 x 40mm
2 Toată transmitanța luminii, iluminant: D65, Grosimea probei: 1,0 mm

Sursa datelor: Kuraray Noritake Dental Inc. Valoarea numerică variază în funcție de o condiție

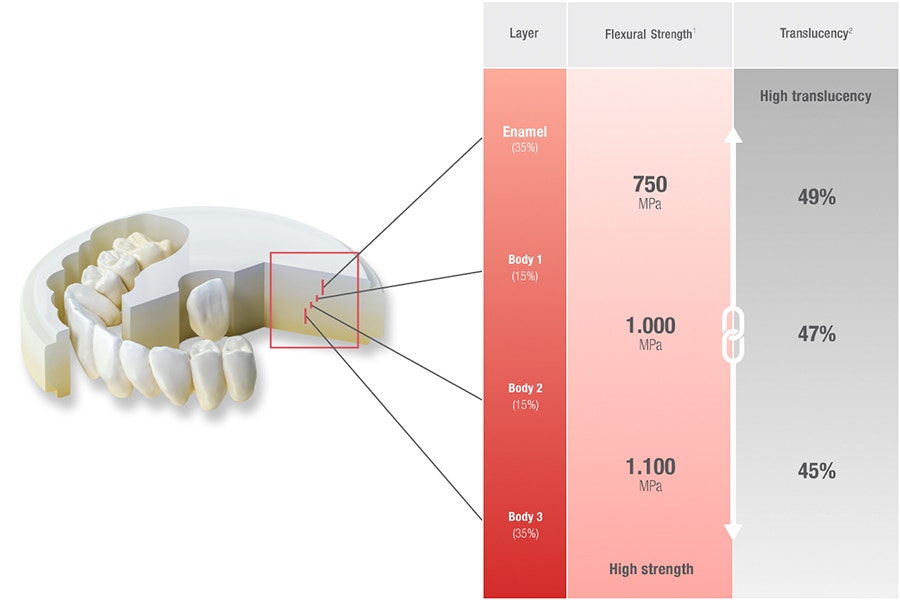

Image - mobile

(..%) grosimea fiecărui strat dintr-un disc în %

Condiții de măsurare:
Evaluat după materialul de bază (culoare albă)
1 Conform ISO 6872: 2015, dimensiunea probei: 3 x 4 x 40mm
2 Toată transmitanța luminii, iluminant: D65, Grosimea probei: 1,0 mm

Sursa datelor: Kuraray Noritake Dental Inc. Valoarea numerică variază în funcție de o condiție

Tehnologie inovatoare multi-strat

KATANA™ Zirconia YML a fost dezvoltat pe baza conceptului de a fi „realist”, care exprimă cu acuratețe și în mod natural culoarea și transluciditatea dinților naturali.

Strat de smalț

Pentru a oferi o transluciditate ridicată care se armonizează cu dinții frontali.

Strat Body 1

Pentru a oferi o culoare și o translucititate perfectă către stratul de smalț.

Strat Body 2, 3

Pentru a oferi o culoare profundă și vie, reducând în același timp efectul de albire.

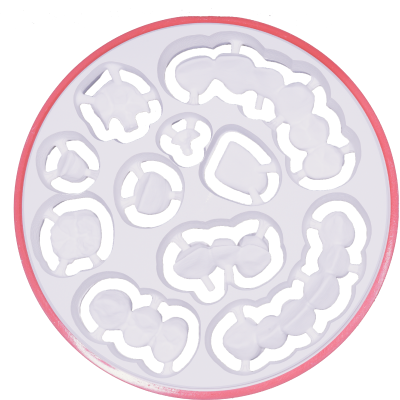

Versatilitatea gamei de aplicare

SOLUȚIA ALL-IN-ONE

Variațiunea excepțională de realizare - de la fațete până la restaurări complete de arcadă. În fiecare caz, puteți alege un design monolitic, redus sau cadru, cu tehnica de fabricație adecvată, în funcție de nevoile individuale.

  • Punți lungi
  • Punți de 3 elemente
  • Coroane
  • Inlay și onlay
  • Fațete laminate

PROFITÂND LA MAXIM DE CARACTERISTICILE KATANA™ Zirconia YML

DEFORMARE LA ARDERE CONTROLATĂ

Cu diferitele sale straturi de compoziție, precizia înaltă a contracției și valorile CTE stabile sunt obținute prin controlul întregului proces de la rafinare la turnare. Controlul extins al calității, în combinație cu materiile prime, unice, dezvoltate intern, generează cel mai bun zirconiu, al nostru, din toate timpurile.

Ne distingem prin producția unică internă de materii prime de zirconiu. Garantând un material pe care vă puteți baza întotdeauna.


CUM FUNCȚIONEAZĂ

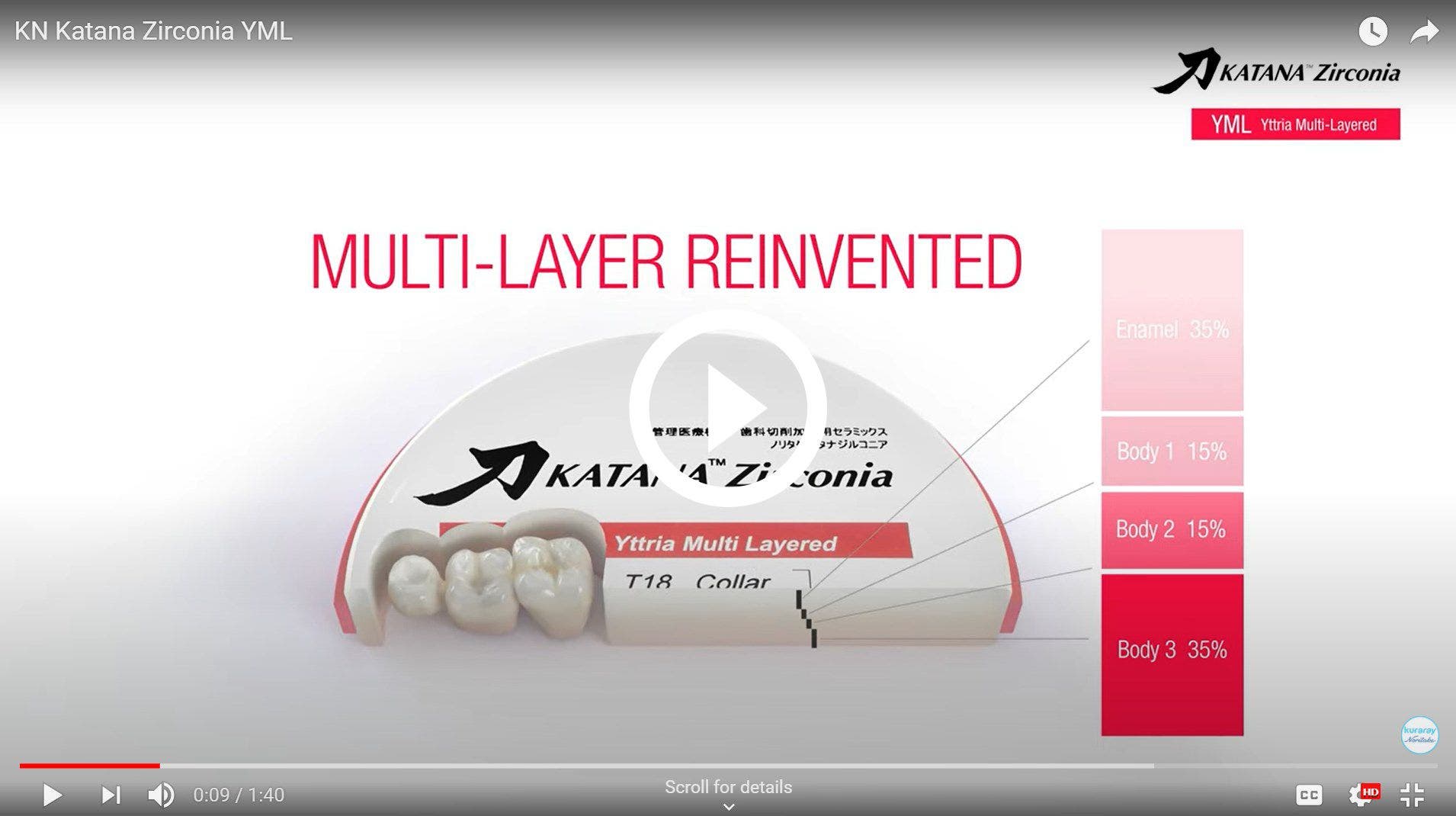

Video

Redus la restaurări mai subțiri

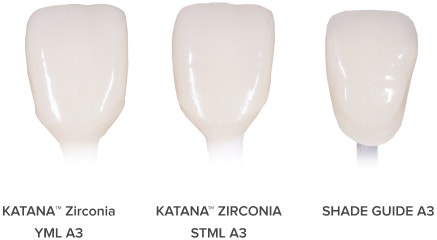

COMPARAȚIE CU ZIRCONIA DE TRANSLUCENȚĂ ÎNALTĂ

KATANA™ Zirconia YML și STML sunt prezentate mai jos cu grosimea stratului body ajustată la 0,4* mm pentru YML și 0,8* mm pentru STML. Stratul body al YML poate fi ajustat mai subțire decât cel al zirconiului cu transluciditate ridicată, crescând și mai mult transluciditatea acestuia.

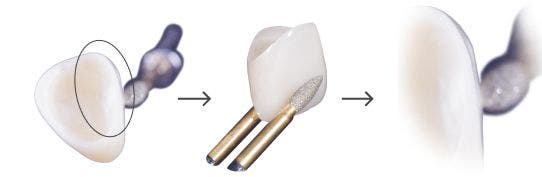

STABILITATE MARGINALĂ ȘI EXACTITATE LUCRĂRII ÎMBUNĂTĂȚITĂ

KATANA™ Zirconia YML prezintă margini ascuțite și mai puține neregularități, ceea ce duce la o închidere marginală mai bună. Restaurările mai subțiri arată un rezultat bun la nivelul marginilor ascuțite și susține utilizarea KATANA™ Zirconia YML.


Chiar dacă marginile restaurării au fost frezate cu profil foarte subțire, ele sunt totuși netede și fără imperfecțiuni.

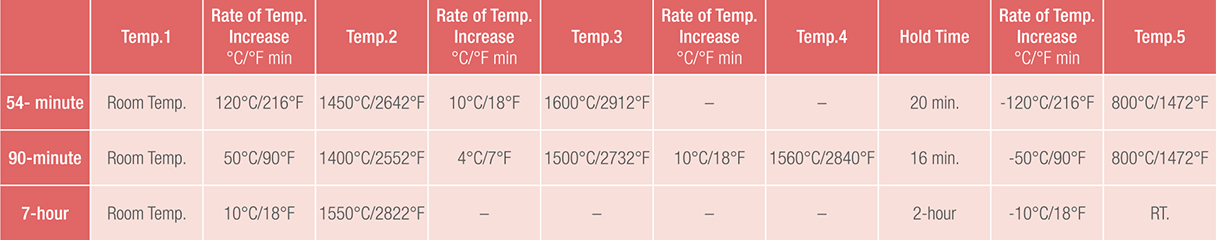

Sinterizare la viteză crescută la punți de până la 3 elemente

Calitatea remarcabilă asociată cu rapiditatea sunt caracteristici absolut unice
ale zirconiului KATANA™ peste toate produsele competitive.

Chart

Recomandarea de sinterizare de mai sus este doar o orientare; pot fi necesare unele ajustări în funcție de fiecare cuptor individual.
În cazul sinterizării de 54, 90 de minute, dacă nu poate fi setată conform programului, nu poate fi sinterizată.

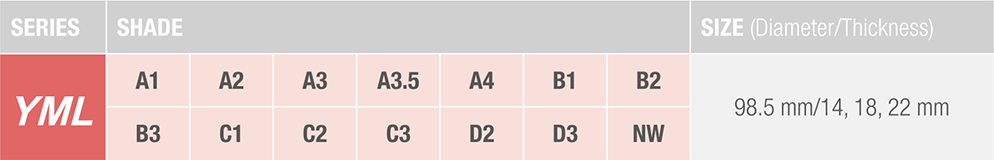

Selecția culorii/grosimii

Selectați nuanța dorită și grosimea corectă a discului pentru a obține
gradația adecvată între lungimea coroanei, smalț și body (dentină).

Chart

Culoarea KATANA™ Zirconia YML trebuie setată pentru glazură, și pentru lustruire - tinde să devină mai închisă în timpul procesului de lustruire. Prin urmare, selectați o nuanță mai deschisă decât culoarea dorită.

  • Internationally highly valued



    Testimonials

  • Afbeelding Professor Dr. Florian Beuer
  •



    Professor Dr. Florian Beuer
    Germany

    “New grade zirconia material that combines strength and translucency in one disc. It provides stability where necessary and aesthetics where we need them. The best of both worlds.”

  •



    Nondas Vlacholoulos, MDT
    Greece

    “One material for every indication with the highest aesthetics, strength and reliability.”

  • Afbeelding Nondas Vlacholoulos, MDT
  • Afbeelding Daniele Rondoni, MDT
  •



    Daniele Rondoni, MDT
    Italy

    The request of zirconia evolution is a perfect combination of optical properties and strength. Finally, we can have esthetics and durability for our restoration with KATANA Zirconia YML thanks to Kuraray Noritake Dental's new technology.

  •



    Andreas Chatzimpatzakis, MDT
    Greece

    “If you ask me Y I use YML? The answer will be... Υπεροχή (η) [Yperochí ]: Excellence .... in aesthetics, strength and reliability!!”

  • Afbeelding Andreas Chatzimpatzakis, MDT
  • Afbeelding Martin Laurik, MDT
  •



    Martin Laurik, MDT
    Estonia

    The superior esthetics of Katana YML is a great option for monolithic crowns while still offering reliable strength in demanding situations.

  •



    Michael Braian, MDT
    Sweden

    “This is what I have been looking for, a multi-layer zirconia with amazing strength from top to bottom. In some cases doing surface characterization feels like overkill.”

  • Afbeelding Michael Braian, MDT

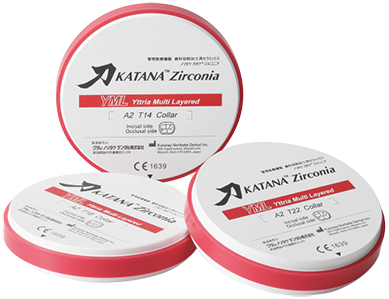

Products

To order, choose from the following options.

KATANA™ Zirconia YML 14MM
KATANA™ Zirconia YML 14MM
-
+
KATANA™ Zirconia YML 18MM
KATANA™ Zirconia YML 18MM
-
+
KATANA™ Zirconia YML 22MM
KATANA™ Zirconia YML 22MM
-
+

Întrebări frecvente

Am alcătuit o listă de răspunsuri la cele mai pertinente întrebări.

How do the mechanical properties of the KATANA™ Zirconia series differ from each other?

The existing KATANA™ Zirconia multi-layered materials (KATANA™ Zirconia UTML/ STML/HTML) have a color gradation, while the base material of the respective type is the same for all layers. The strength and translucency are the same for all layers of the respective type.



KATANA™ Zirconia YML is different in this regard. It is the latest KATANA™ multi-layered disc with a balanced combination of color/translucency and flexural strength gradation. Please refer to chart below, for the overview of the mechanical properties and translucency levels of each type of KATANA™ disc.

Gradation map and physical properties of KATANA™ Zirconia YML



Comparison of physical properties of KATANA™ zirconia series



What exactly does “All-In-One” mean?

“All-In-One” means all application range with one disc. KATANA™ Zirconia YML is characterized by a unique raw material combination of highly translucent zirconia with high strength, which are integrated together by an advanced manufacturing technology. As an “All-In-One” solution, KATANA™ Zirconia YML offers exceptional design flexibility, from long-span full-arch monolithic bridge restorations up to highly aesthetic anterior monolithic crown restorations.

What are the recommended and indicated application areas for KATANA™ Zirconia YML?

From complicated full-arch restorations to highly aesthetic demanding anterior single-unit restorations, an exceptional design flexibility is available. In each of these cases, you can choose a monolithic, cut-back or framework design with the appropriate fabrication process, depending on your specific needs.



 Framework

 Long span bridge

 Anterior / posterior crown

 Inlay, onlay

 Laminate veneer

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials. By using materials that Kuraray Noritake Dental Inc. has developed themselves specifically for the KATANA™ Zirconia series, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.

What shade selection is available for KATANA™ Zirconia YML and in which disc thicknesses and shapes are these available?

KATANA™ Zirconia YML is available in a shade selection of 14 shades, which are adapted to the VITA-classical A1-D4™ Shade Guide. Please refer to the following table overview for more information about shape and disc-thickness.



Shade / Thickness selection



What should be kept in mind when designing restorations with KATANA™ Zirconia YML?

Please observe the following guidelines of applicable minimum wall thickness:





The thickness specifications apply to full zirconia restorations. The thickness of build-up porcelain is not included. The minimum wall thicknesses apply to full zirconia restoration or to frame-work for build-up porcelain restoration. In these cases, 0.4 mm (anterior) or 0.5 mm (posterior) should be kept for the area located in the bottom (lower) half of the disc. If full zirconia veneer restoration is used for combination with the porcelain, 0.8 mm or more should be kept for the area located in the upper half of the disc.



Please observe the following guidelines of applicable cross-section wall thickness:





3 units or less Connector cross-section area can be placed in any layer.



A

The maximum number of pontics is one. Not suitable for a cantilevered bridge. 4 units or more - at least 50% of the connector cross section should be positioned in the bottom (lower) half of the disc.



B

The maximum number of pontics between two abutments (teeth) should not exceed two. For cantilever bridge, keep the number of pontics at one. In this case, the connector cross-section must be at least 12 mm.

What is the sintering schedule of KATANA™ Zirconia YML?

Please observe the following of sintering schedule:





The above sintering recommendations represent only a guideline; depending on each individual furnace and condition, some adjustments might be necessary. If the 54 or 90-minute sintering program is not programmable in your furnace, it is not possible to set the furnace according to one of these schedules.

Is it possible to speed sinter a KATANA™ Zirconia YML long span bridge?

No, this is not possible. 54- or 90-minute sintering is only possible for up to a three-unit bridge restorations.

How is the crystal distribution within KATANA™ Zirconia YML structured?

The body layer has a higher content of tetragonal crystals, while the cubic content gradually increases towards the enamel layer.

Which finalization methods are recommended for KATANA™ Zirconia YML?

KATANA™ Zirconia YML can be finalized by glazing, staining or porcelain application. With an integrated translucency, color and strength gradient, KATANA™ Zirconia YML is designed to achieve highly aesthetic results by simply using the glazing technique. In case of additional color adjustments, characterizations or individualizations are desired, the unique CERABIEN™ ZR (CZR) FC Paste Stain can be used to achieve the final high aesthetic result according to your preferences.

Is it also possible to finalize KATANA™ Zirconia YML restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with the PEARL SURFACE™ Z (polishing paste). Please note that the shade of KATANA™ Zirconia YML should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

Is it possible to wet mill KATANA™ Zirconia YML?

It is generally not recommended to wet-mill KATANA™ Zirconia, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce the translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots on the restoration during the sintering process. Causes for this are for example oily fingers, excessive purging with high air pressure, residuals of silicon point substance that has been applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that has been created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Is it possible to use coloring liquids from other manufacturers for KATANA™ Zirconia YML?

This is not recommended, as the desired level of translucency or color development cannot be achieved.

Are the sintering schedules for KATANA™ Zirconia the same as other existing zirconia products?

The sintering parameters differ from other manufacturers’ zirconia products. The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Note: The material is removed from the furnace at 800°C. High-speed sintering is possible for up to three-unit bridge restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace capable of setting the KATANA™ Zirconia YML sintering program according to its technical specifications can be used, regardless of the manufacturer. If the KATANA™ Zirconia YML sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multilayer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration. Please refer to our “Handy Chart” as a guideline for this.

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which a “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).
