Revolusjonerende alt-i-ett disk design

Denne innovative råmateriale-kombinasjonen av zirkonium med høy translucens og høy styrke vil gi det tanntekniske laboratoriet ditt nye krefter.
KATANA™ Zirconia YML leverer effektivitet, enkelhet og presisjon i arbeidsprosessen uten å kompromisse på kvaliteten på sluttresultatet!

HVORFOR SKAL DU BRUKE
KATANA™ Zirconia YML?

ALT-I-ETT LØSNING

Hele spekteret av indikasjoner kan dekkes takket være kombinasjonen av høy styrke og høy translucens.

SØMLØS FLER-LAGS STRUKTUR

KATANA™ Zirconia YML matcher tre råmaterialer med forskjellig yttria-innhold og kombinerer en velbalansert farge/translucens og bøyefasthet gradering.

ENKEL ESTETIKK

Den sømløse flerlags teknologien eliminerer synlige overgangslinjer og legger vekt på naturlig farge og translucens, slik at en forenklet og tidsbesparende prosedyre oppnås.

KONTROLLERT DEFORMASJON VED BRENNING

Den nøyaktige passformen til restaureringen etter den endelige sintringen reduserer faren for omgjøring. Ingen sløsing med tid og materialer.

RASK FREMSTILLING

Omgjøring og hastekasus? High-speed sintring (54 minutter) tilbyr helt nye muligheter. Gjør arbeidet helt ferdig i løpet av en dag.


Basert på KATANA™ Zirconia YML A3 med CERABIEN™ ZR FC Paste Stain
Courtesy of DT Marco Stoppaccioli – L’Aquila

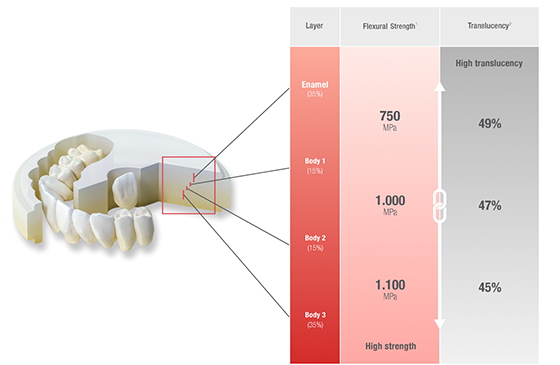

Image - desktop

(..%) tykkelsen av hvert lag i en disk i %

Målebetingelser:
Evaluert med basismateriale (hvit farge).
1 I overensstemmelse med ISO 6872: 2015, Prøvens størrelse: 3 x 4 x 40 mm.
2 All måling av lystransmisjon, lyskilde: D65, Prøvens tykkelse: 1.0 mm.

Datakilde: Kuraray Noritake Dental Inc. Den numeriske verdien varierer med forholdene.

Image - mobile

(..%) tykkelsen av hvert lag i en disk i %

Målebetingelser:
Evaluert med basismateriale (hvit farge).
1 I overensstemmelse med ISO 6872: 2015, Prøvens størrelse: 3 x 4 x 40 mm.
2 All måling av lystransmisjon, lyskilde: D65, Prøvens tykkelse: 1.0 mm.

Datakilde: Kuraray Noritake Dental Inc. Den numeriske verdien varierer med forholdene.

Innovativ multi-lags teknologi

KATANA™ Zirconia YML ble utviklet etter konseptet “naturtro“, som nøyaktig og naturlig etterligner farge og translucens i naturlige tenner.

Emaljelaget

Å bidra med høy translucens som harmonerer med anteriore tenner.

Body-lag 1

Å bidra med farge og translucens mot emaljelaget.

Body-lag 2, 3

Å bidra med dype og livlige farger og redusere hvitheten.


Allsidigheten i anvendelsesspekteret

ALT-I-ETT LØSNING

Det tilbys eksepsjonell design-fleksibilitet – fra skallfasetter til broer som dekker hele tannbuen. I hvert kasus kan du velge mellom monolittisk, cut-back eller skjelett design med passende fremstillingsprosedyre avhengig av individuelle behov.

  • Broer med lange spenn
  • Tre-ledds broer
  • Kroner
  • Innlegg og onlays
  • Skallfasetter

GJØR DET BESTE UT AV KATANA™ Zirconia YML’S EGENSKAPER

KONTROLLERT DEFORMASJON VED BRENNING

Med lag med ulik sammensetning, oppnås kontrollert krymping og stabile CTE verdier ved at hele produksjonsprosessen kontrolleres nøye. Omfattende kvalitetskontroll i kombinasjon med unike, egenutviklede råvarer, leverer vårt beste zirconium noensinne.

Vi utmerker oss ved denne unike in-house produksjonen av zirkonium råmaterialer. Den garanterer et materiale som du alltid kan stole på.


HVORDAN VIRKER DET

Video

Reduser tykkelsen på restaureringene

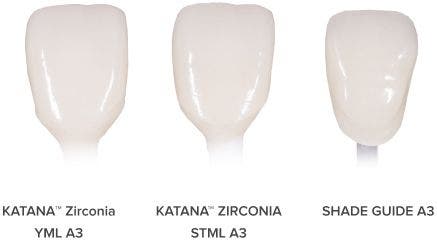

SAMMENLIGNING MED HØYTRANSLUCENT ZIRKONIUM

KATANA™ Zirconia YML og STML vises nedenfor med materialtykkelse på 0.4*mm for YML og 0.8*mm for STML. Materialtykkelsen for YML kan gjøres mindre enn for høytranslucent zirkonium, noe som ytterligere øker translucensen.

*Dette er minimum materialtykkelse oppgitt av produsenten.

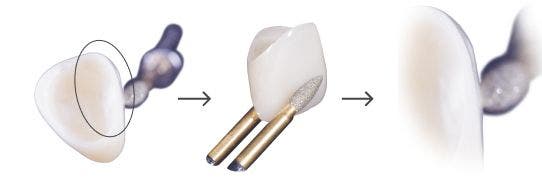

MARGINAL STABILITET OG FORBEDRET PASSFORM

KATANA™ Zirconia YML gir skarpe kantavslutninger og mindre chipping og dette gir bedre kanttilslutning. Tynne restaureringer viser at dette gode resultatet med tynne kanter støtter bruken av KATANA™ Zirconia YML.


Selv om restaureringene har blitt frest med tynne kantavslutninger, er kantene glatte og uten chipping.

Høyhastighets sintring opp til 3 ledds bro

Fremragende kvalitet kombinert med hurtighet er en absolutt unik egenskap
ved KATANA™ Zirconia og skiller den fra alle konkurrerende produkter.

Chart

Sintringsprotokollen ovenfor er bare veiledende; noen justeringer må påregnes avhengig av den individuelle ovnen.
I tilfelle 54, 90-minutters sintring. Hvis det ikke kan stilles inn etter skjemaet, kan det ikke sintres.

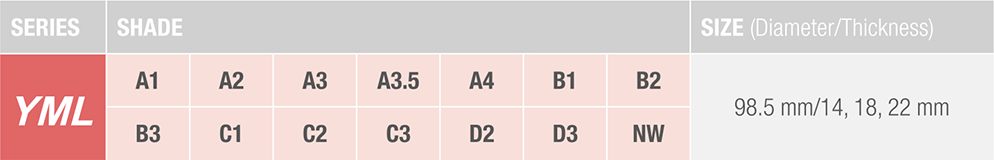

Farge / tykkelse-innstilling

Velg fargen som ønskes og korrekt tykkelse på disken for å få en passende fargegradering mellom kronelengde,
emalje og body (dentin).

Chart

KATANA™ Zirconia YML fargen bør innstrilles for glasering eller polering, Den har en tendens til å bli mørkere ved poleringen. Velg derfor en lysere nyanse enn den ønskede endelige fargen.

  • Høyt verdsatt internasjonalt



    Brukeruttalelser

  • Afbeelding Professor Dr. Florian Beuer
  •



    Professor Dr. Florian Beuer
    Tyskland

    “Nytt zirconium-materiale som kombinerer styrke og translucens i en disk. Den gir stabilitet når vi har behov for det og estetikk hvor vi trenger den. Det beste fra begge verdener.”

  •



    Nondas Vlacholoulos, MDT
    Hellas

    “Ett materiale for alle indikasjoner med den høyeste estetikk, styrke og pålitelighet.”

  • Afbeelding Nondas Vlacholoulos, MDT
  • Afbeelding Daniele Rondoni, MDT
  •



    Daniele Rondoni, MDT
    Italia

    “Det vi ønsker oss av evolusjonen av zirkonium er en perfekt kombinasjon av optiske egenskaper og styrke. Endelig kan vi få estetikk og holdbarhet for restaureringene våre med KATANA Zirconia YML takket være Kuraray Noritake Dental's nye teknologi.”

  •



    Andreas Chatzimpatzakis, MDT
    Hellas

    “If you ask me Y I use YML? The answer will be... Υπεροχή (η) [Yperochí ]: Excellence .... in aesthetics, strength and reliability!!”

  • Afbeelding Andreas Chatzimpatzakis, MDT
  • Afbeelding Martin Laurik, MDT
  •



    Martin Laurik, MDT
    Estonia

    “Den overlegne estetikken til Katana YML er en flott mulighet for monolittiske kroner som samtidig tilbyr pålitelig styrke i krevende situasjoner.”

  •



    Michael Braian, MDT
    Sweden

    “Dette er det jeg har vært på leting etter, en multi-sjikts zirconium med forbløffende styrke fra topp til bunn. I noen tilfeller virker det å lage overflatekarakterisering som overkill.”

  • Afbeelding Michael Braian, MDT

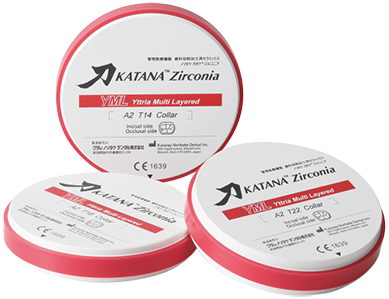

Produkter

For bestilling, velg blant følgende alternativer.

KATANA™ Zirconia YML 14MM
KATANA™ Zirconia YML 14MM
-
+
KATANA™ Zirconia YML 18MM
KATANA™ Zirconia YML 18MM
-
+
KATANA™ Zirconia YML 22MM
KATANA™ Zirconia YML 22MM
-
+

FAQ

Vi har satt sammen en liste med svar på de mest aktuelle spørsmålene.

How do the mechanical properties of the KATANA™ Zirconia series differ from each other?

The existing KATANA™ Zirconia multi-layered materials (KATANA™ Zirconia UTML/ STML/HTML) have a color gradation, while the base material of the respective type is the same for all layers. The strength and translucency are the same for all layers of the respective type.



KATANA™ Zirconia YML is different in this regard. It is the latest KATANA™ multi-layered disc with a balanced combination of color/translucency and flexural strength gradation. Please refer to chart below, for the overview of the mechanical properties and translucency levels of each type of KATANA™ disc.

Gradation map and physical properties of KATANA™ Zirconia YML



Comparison of physical properties of KATANA™ zirconia series



What exactly does “All-In-One” mean?

“All-In-One” means all application range with one disc. KATANA™ Zirconia YML is characterized by a unique raw material combination of highly translucent zirconia with high strength, which are integrated together by an advanced manufacturing technology. As an “All-In-One” solution, KATANA™ Zirconia YML offers exceptional design flexibility, from long-span full-arch monolithic bridge restorations up to highly aesthetic anterior monolithic crown restorations.

What are the recommended and indicated application areas for KATANA™ Zirconia YML?

From complicated full-arch restorations to highly aesthetic demanding anterior single-unit restorations, an exceptional design flexibility is available. In each of these cases, you can choose a monolithic, cut-back or framework design with the appropriate fabrication process, depending on your specific needs.



 Framework

 Long span bridge

 Anterior / posterior crown

 Inlay, onlay

 Laminate veneer

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials. By using materials that Kuraray Noritake Dental Inc. has developed themselves specifically for the KATANA™ Zirconia series, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.

What shade selection is available for KATANA™ Zirconia YML and in which disc thicknesses and shapes are these available?

KATANA™ Zirconia YML is available in a shade selection of 14 shades, which are adapted to the VITA-classical A1-D4™ Shade Guide. Please refer to the following table overview for more information about shape and disc-thickness.



Shade / Thickness selection



What should be kept in mind when designing restorations with KATANA™ Zirconia YML?

Please observe the following guidelines of applicable minimum wall thickness:





The thickness specifications apply to full zirconia restorations. The thickness of build-up porcelain is not included. The minimum wall thicknesses apply to full zirconia restoration or to frame-work for build-up porcelain restoration. In these cases, 0.4 mm (anterior) or 0.5 mm (posterior) should be kept for the area located in the bottom (lower) half of the disc. If full zirconia veneer restoration is used for combination with the porcelain, 0.8 mm or more should be kept for the area located in the upper half of the disc.



Please observe the following guidelines of applicable cross-section wall thickness:





3 units or less Connector cross-section area can be placed in any layer.



A

The maximum number of pontics is one. Not suitable for a cantilevered bridge. 4 units or more - at least 50% of the connector cross section should be positioned in the bottom (lower) half of the disc.



B

The maximum number of pontics between two abutments (teeth) should not exceed two. For cantilever bridge, keep the number of pontics at one. In this case, the connector cross-section must be at least 12 mm.

What is the sintering schedule of KATANA™ Zirconia YML?

Please observe the following of sintering schedule:





The above sintering recommendations represent only a guideline; depending on each individual furnace and condition, some adjustments might be necessary. If the 54 or 90-minute sintering program is not programmable in your furnace, it is not possible to set the furnace according to one of these schedules.

Is it possible to speed sinter a KATANA™ Zirconia YML long span bridge?

No, this is not possible. 54- or 90-minute sintering is only possible for up to a three-unit bridge restorations.

How is the crystal distribution within KATANA™ Zirconia YML structured?

The body layer has a higher content of tetragonal crystals, while the cubic content gradually increases towards the enamel layer.

Which finalization methods are recommended for KATANA™ Zirconia YML?

KATANA™ Zirconia YML can be finalized by glazing, staining or porcelain application. With an integrated translucency, color and strength gradient, KATANA™ Zirconia YML is designed to achieve highly aesthetic results by simply using the glazing technique. In case of additional color adjustments, characterizations or individualizations are desired, the unique CERABIEN™ ZR (CZR) FC Paste Stain can be used to achieve the final high aesthetic result according to your preferences.

Is it also possible to finalize KATANA™ Zirconia YML restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with the PEARL SURFACE™ Z (polishing paste). Please note that the shade of KATANA™ Zirconia YML should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

Is it possible to wet mill KATANA™ Zirconia YML?

It is generally not recommended to wet-mill KATANA™ Zirconia, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce the translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots on the restoration during the sintering process. Causes for this are for example oily fingers, excessive purging with high air pressure, residuals of silicon point substance that has been applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that has been created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Is it possible to use coloring liquids from other manufacturers for KATANA™ Zirconia YML?

This is not recommended, as the desired level of translucency or color development cannot be achieved.

Are the sintering schedules for KATANA™ Zirconia the same as other existing zirconia products?

The sintering parameters differ from other manufacturers’ zirconia products. The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Note: The material is removed from the furnace at 800°C. High-speed sintering is possible for up to three-unit bridge restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace capable of setting the KATANA™ Zirconia YML sintering program according to its technical specifications can be used, regardless of the manufacturer. If the KATANA™ Zirconia YML sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multilayer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration. Please refer to our “Handy Chart” as a guideline for this.

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which a “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).
