Design tout-en-un révolutionnaire

Cette combinaison innovante de zircone hautement translucide et une forte résistance va dynamiser votre laboratoire.
KATANA™ Zirconia YML offre efficacité, clarté, simplicité et précision sans compromettre la qualité des résultats !

Nouvelles
Consultez notre section "Actualités" pour obtenir les dernières informations sur notre entreprise et nos produits.

POURQUOI CHOISIR KATANA™ Zirconia YML ?

SOLUTION TOUT-EN-UN

Toutes les games d’application sont couvertes grâce à la combinaison entre haute translucidité et haute résistance.

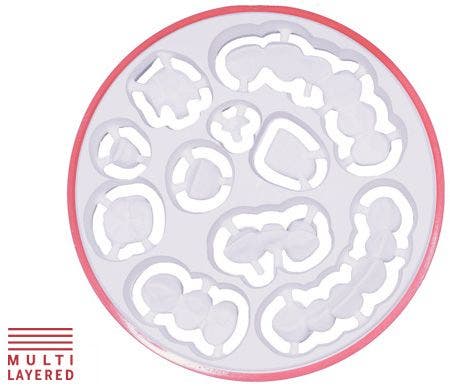

STRUCTURE MULTICOUCHES FONDU

KATANA™ Zirconia YML associe trois matériaux avec différentes concentrations en yttria combinant une couleur / translucidité et une gradation de résistance à la flexion bien équilibrées.

ESTHÉTIQUE SIMPLE

La technologie multicouche supprime les lignes de transition, accentuant la couleur naturelle et la translucidité, garantissant une procédure simplifiée et rapide.

DÉFORMATION DE FRITTAGE CONTRÔLÉE

La précision d'ajustement des restaurations après le processus de frittage final réduit les risques de reconditionnement. Pas de perte de temps ni de matériau.

TRAITEMENT RAPIDE

Refaire et cas urgents ? Le frittage à grande vitesse (54 minutes) offre de nouvelles opportunités complètes. Terminez le travail facilement en une journée.


Réalisé avec KATANA™ Zirconia YML A3 et CERABIEN ZR FC Paste Stain
Merci au Docteur Marco Stoppaccioli – L’Aquila

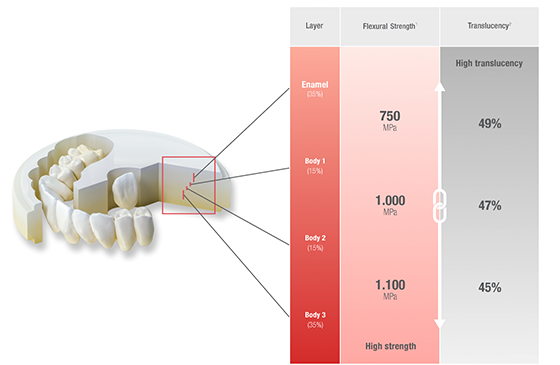

Image - desktop

(...%) l'épaisseur de chaque couche du disque en %

Conditions de mesure :
Évaluée par le matériau de base (couleur blanche).
1 Selon la norme ISO 6872: 2015, Taille de l'échantillon : 3 x 4 x 40 mm
2 Excellente transmission de la lumière, étalon colorimétrique : D65, Épaisseur de l'échantillon : 1,0 mm

Source de données : Kuraray Noritake Dental Inc. La valeur numérique varie en fonction d'une condition.

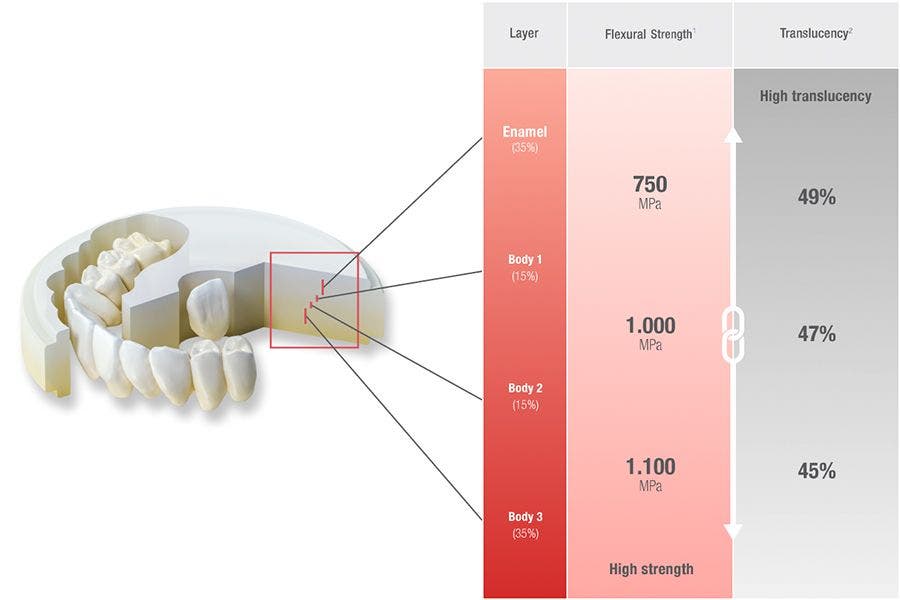

Image - mobile

(...%) l'épaisseur de chaque couche du disque en %

Conditions de mesure :
Évaluée par le matériau de base (couleur blanche).
1 Selon la norme ISO 6872: 2015, Taille de l'échantillon : 3 x 4 x 40 mm
2 Excellente transmission de la lumière, étalon colorimétrique : D65, Épaisseur de l'échantillon : 1,0 mm

Source de données : Kuraray Noritake Dental Inc. La valeur numérique varie en fonction d'une condition.

Technologie mulitcouches innovante

KATANA™ Zirconia YML a été développé sur le principe de reproduction de la réalité, qui exprime alors précisément et naturellement la couleur et la translucidité de la dent naturelle.

Couche d'émail

Pour fournir une haute translucidité en harmonie avec les dents antérieurs.

Couche de dentine 1

Pour fournir une transition fluide de la couleur et translucidité vers la couche d'émail.

Couche de dentine 2 et 3

Pour fournir une couleur profonde et vive tout en réduisant le blanchiment.


Polyvalence de la gamme d'applications

SOLUTION TOUT-EN-UN

Une remarquable flexibilité de conception est possible - des facettes aux restaurations d'arcades complètes. Dans chaque cas, vous pouvez choisir une conception monolithique, réduite ou armatures avec la procédure de fabrication appropriée en fonction des besoins individuels.

  • Bridges de longue portée
  • Bridges 3 unités
  • Couronnes
  • Inlays et Onlays
  • Facettes

TIRER LE MEILLEUR PARTI DES FONCTIONNALITES DE KATANA™ Zirconia YML

DÉFORMATION DE FRITTAGE CONTRÔLÉE

Avec sa composition en différentes couches et des valeurs CTE stables sont obtenus en contrôlant l'ensemble du processus, du raffinage au moulage. Un contrôle qualité approfondi, associé à des matières premières uniques développées en interne, permet d'obtenir la meilleure zircone de tous les temps.

Nous nous distinguons par cette production interne unique de matériaux à base de zircone. Il garantit un matériau sur lequel vous pouvez toujours compter.


COMMENT CELA FONCTIONNE-T-IL ?

Video

Réduire pour des
restaurations plus fines

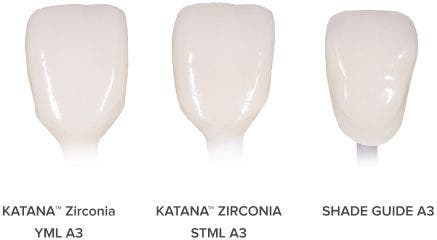

COMPARAISON ENTRE LES ZIRCONE HAUTE TRANSLUCIDITE

KATANA™ Zirconia YML et STML sont présentés ci-dessous avec une épaisseur de couche de dentine ajustée à 0,4 * mm pour YML et à 0,8 * mm pour STML. La couche de dentine de YML peut être ajustée plus fine que celle de la zircone à haute translucidité, augmentant encore plus sa translucidité.

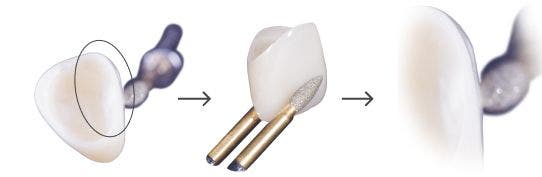

STABILITE MARGINALE ET PRECISION D'AJUSTEMENT

KATANA™ Zirconia YML présente des marges nettes et moins d'écaillage, ce qui permet un meilleur ajustement des marges. Des restaurations plus minces montrent que ce bon résultat en marge nette soutient l'utilisation de KATANA™ Zirconia YML.


Même si les marges de la restauration ont été fraisées très fin, elles présentent toujours des marges lisses sans aucun écaillage.

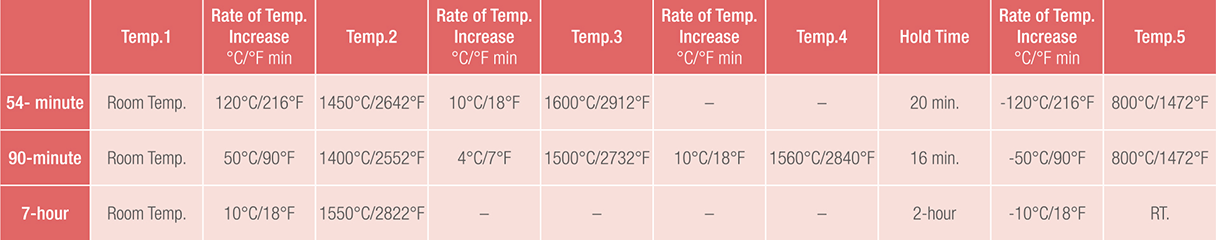

Sinterisation ultra rapide jusqu'aux bridges 3 unites

La qualité exceptionnelle associée à la vitesse est une caractéristique unique absolue de KATANA™ Zirconia par rapport à tous les produits concurrents.

Chart

Ces recommandations de sintérisation sont seulement un guide, quelques ajustements peuvent être requis en fonction de chaque four.
Si les programmes en 54 ou 90 minutes ne sont pas programmables sur votre four, il ne sera pas possible de sintériser.

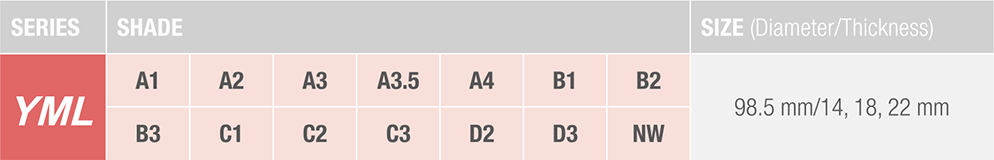

Selection de la teinte et de l’epaisseur

Choisissez la teinte cible et la bonne épaisseur de disque pour obtenir une
graduation appropriée entre la longueur de la couronne, l'émail et la dentine.

Chart

KATANA™ Zirconia YML doit être sélectionnée en prévision d'un glaçage. En cas de polissage, elle a tendance à devenir une teinte plus foncée. Il faut donc choisir une teinte plus claire que la teinte cible.

  • Internationally highly valued



    Testimonials

  • Afbeelding Professor Dr. Florian Beuer
  •



    Professor Dr. Florian Beuer
    Germany

    “New grade zirconia material that combines strength and translucency in one disc. It provides stability where necessary and aesthetics where we need them. The best of both worlds.”

  •



    Nondas Vlacholoulos, MDT
    Greece

    “One material for every indication with the highest aesthetics, strength and reliability.”

  • Afbeelding Nondas Vlacholoulos, MDT
  • Afbeelding Daniele Rondoni, MDT
  •



    Daniele Rondoni, MDT
    Italy

    The request of zirconia evolution is a perfect combination of optical properties and strength. Finally, we can have esthetics and durability for our restoration with KATANA Zirconia YML thanks to Kuraray Noritake Dental's new technology.

  •



    Andreas Chatzimpatzakis, MDT
    Greece

    “If you ask me Y I use YML? The answer will be... Υπεροχή (η) [Yperochí ]: Excellence .... in aesthetics, strength and reliability!!”

  • Afbeelding Andreas Chatzimpatzakis, MDT
  • Afbeelding Martin Laurik, MDT
  •



    Martin Laurik, MDT
    Estonia

    The superior esthetics of Katana YML is a great option for monolithic crowns while still offering reliable strength in demanding situations.

  •



    Michael Braian, MDT
    Sweden

    “This is what I have been looking for, a multi-layer zirconia with amazing strength from top to bottom. In some cases doing surface characterization feels like overkill.”

  • Afbeelding Michael Braian, MDT

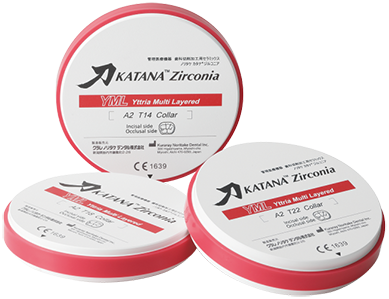

Produits

Pour commander, choisissez parmi les options suivantes.

KATANA™ Zirconia YML 14MM
KATANA™ Zirconia YML 14MM
-
+
KATANA™ Zirconia YML 18MM
KATANA™ Zirconia YML 18MM
-
+
KATANA™ Zirconia YML 22MM
KATANA™ Zirconia YML 22MM
-
+

Foire Aux Questions FAQ

Nous avons rassemblé une liste de réponses aux questions les plus pertinentes.

How do the mechanical properties of the KATANA™ Zirconia series differ from each other?

The existing KATANA™ Zirconia multi-layered materials (KATANA™ Zirconia UTML/ STML/HTML) have a color gradation, while the base material of the respective type is the same for all layers. The strength and translucency are the same for all layers of the respective type.



KATANA™ Zirconia YML is different in this regard. It is the latest KATANA™ multi-layered disc with a balanced combination of color/translucency and flexural strength gradation. Please refer to chart below, for the overview of the mechanical properties and translucency levels of each type of KATANA™ disc.

Gradation map and physical properties of KATANA™ Zirconia YML



Comparison of physical properties of KATANA™ zirconia series



What exactly does “All-In-One” mean?

“All-In-One” means all application range with one disc. KATANA™ Zirconia YML is characterized by a unique raw material combination of highly translucent zirconia with high strength, which are integrated together by an advanced manufacturing technology. As an “All-In-One” solution, KATANA™ Zirconia YML offers exceptional design flexibility, from long-span full-arch monolithic bridge restorations up to highly aesthetic anterior monolithic crown restorations.

What are the recommended and indicated application areas for KATANA™ Zirconia YML?

From complicated full-arch restorations to highly aesthetic demanding anterior single-unit restorations, an exceptional design flexibility is available. In each of these cases, you can choose a monolithic, cut-back or framework design with the appropriate fabrication process, depending on your specific needs.



 Framework

 Long span bridge

 Anterior / posterior crown

 Inlay, onlay

 Laminate veneer

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials. By using materials that Kuraray Noritake Dental Inc. has developed themselves specifically for the KATANA™ Zirconia series, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.

What shade selection is available for KATANA™ Zirconia YML and in which disc thicknesses and shapes are these available?

KATANA™ Zirconia YML is available in a shade selection of 14 shades, which are adapted to the VITA-classical A1-D4™ Shade Guide. Please refer to the following table overview for more information about shape and disc-thickness.



Shade / Thickness selection



What should be kept in mind when designing restorations with KATANA™ Zirconia YML?

Please observe the following guidelines of applicable minimum wall thickness:





The thickness specifications apply to full zirconia restorations. The thickness of build-up porcelain is not included. The minimum wall thicknesses apply to full zirconia restoration or to frame-work for build-up porcelain restoration. In these cases, 0.4 mm (anterior) or 0.5 mm (posterior) should be kept for the area located in the bottom (lower) half of the disc. If full zirconia veneer restoration is used for combination with the porcelain, 0.8 mm or more should be kept for the area located in the upper half of the disc.



Please observe the following guidelines of applicable cross-section wall thickness:





3 units or less Connector cross-section area can be placed in any layer.



A

The maximum number of pontics is one. Not suitable for a cantilevered bridge. 4 units or more - at least 50% of the connector cross section should be positioned in the bottom (lower) half of the disc.



B

The maximum number of pontics between two abutments (teeth) should not exceed two. For cantilever bridge, keep the number of pontics at one. In this case, the connector cross-section must be at least 12 mm.

What is the sintering schedule of KATANA™ Zirconia YML?

Please observe the following of sintering schedule:





The above sintering recommendations represent only a guideline; depending on each individual furnace and condition, some adjustments might be necessary. If the 54 or 90-minute sintering program is not programmable in your furnace, it is not possible to set the furnace according to one of these schedules.

Is it possible to speed sinter a KATANA™ Zirconia YML long span bridge?

No, this is not possible. 54- or 90-minute sintering is only possible for up to a three-unit bridge restorations.

How is the crystal distribution within KATANA™ Zirconia YML structured?

The body layer has a higher content of tetragonal crystals, while the cubic content gradually increases towards the enamel layer.

Which finalization methods are recommended for KATANA™ Zirconia YML?

KATANA™ Zirconia YML can be finalized by glazing, staining or porcelain application. With an integrated translucency, color and strength gradient, KATANA™ Zirconia YML is designed to achieve highly aesthetic results by simply using the glazing technique. In case of additional color adjustments, characterizations or individualizations are desired, the unique CERABIEN™ ZR (CZR) FC Paste Stain can be used to achieve the final high aesthetic result according to your preferences.

Is it also possible to finalize KATANA™ Zirconia YML restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with the PEARL SURFACE™ Z (polishing paste). Please note that the shade of KATANA™ Zirconia YML should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

Is it possible to wet mill KATANA™ Zirconia YML?

It is generally not recommended to wet-mill KATANA™ Zirconia, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce the translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots on the restoration during the sintering process. Causes for this are for example oily fingers, excessive purging with high air pressure, residuals of silicon point substance that has been applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that has been created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Is it possible to use coloring liquids from other manufacturers for KATANA™ Zirconia YML?

This is not recommended, as the desired level of translucency or color development cannot be achieved.

Are the sintering schedules for KATANA™ Zirconia the same as other existing zirconia products?

The sintering parameters differ from other manufacturers’ zirconia products. The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Note: The material is removed from the furnace at 800°C. High-speed sintering is possible for up to three-unit bridge restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace capable of setting the KATANA™ Zirconia YML sintering program according to its technical specifications can be used, regardless of the manufacturer. If the KATANA™ Zirconia YML sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multilayer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration. Please refer to our “Handy Chart” as a guideline for this.

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which a “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).
