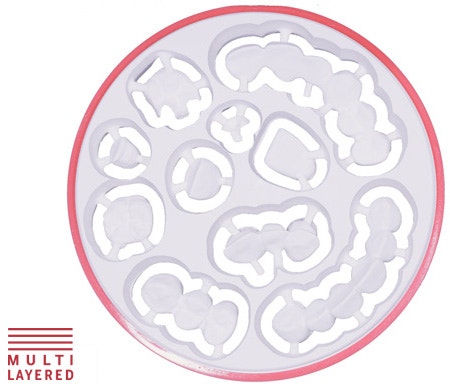

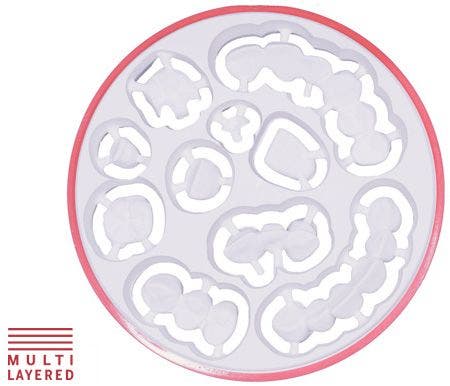

REVOLUCIONĀRS “VISS VIENĀ” DISKA DIZAINS

Šī inovatīvā izejmateriālu kombinācija, apvienojot augsta caurspīdīguma cirkoniju ar īpaši lielu materiāla izturību, uzlabos jūsu zobārstniecības laboratorijas darba procesu.
Ar KATANA™ Zirconia YML ir iespējams strādāt efektīvi, skaidri, vienkārši un precīzi, nezaudējot iznākuma kvalitāti!

KĀDĒĻ IZMANTOT KATANA™ Zirconia YML?

“VISS VIENĀ” RISINĀJUMS

Pateicoties augstajam caurspīdīgumam un īpaši lielajai izturībai, ir iespējams strādāt ar visām iespējamajām indikācijām.

NEVAINOJAMA DAUDZSLĀŅU STRUKTŪRA

KATANA™ Zirconia YML sastāv no trim izejmateriāliem ar atšķirīgu itrija sastāvu, apvienojot labu krāsas un caurspīdīguma balansu ar lieces izturības pakāpi.

VIENKĀRŠA ESTĒTIKA

Nevainojamā daudzslāņu tehnoloģija novērš redzamas pārejas līnijas, akcentējot dabīgu krāsu un caurspīdīgumu, kā arī, nodrošinot vienkāršu, laiku taupošu procedūru.

KONTROLĒTA DEFORMĀCIJA KARSTUMĀ

Restaurāciju piegulšanas precizitāte pēc pēdējās kausēšanas samazina atkārtotas apstrādes nepieciešamības risku. Netiek tērēts laiks un materiāli.

ĀTRA APSTRĀDE

Pārtaisīšana vai steidzami darbi? Īpaši ātra kausēšana (54 minūtēs) sniedz pavisam jaunas iespējas. Darbs ir viegli paveicams vienas dienas laikā.

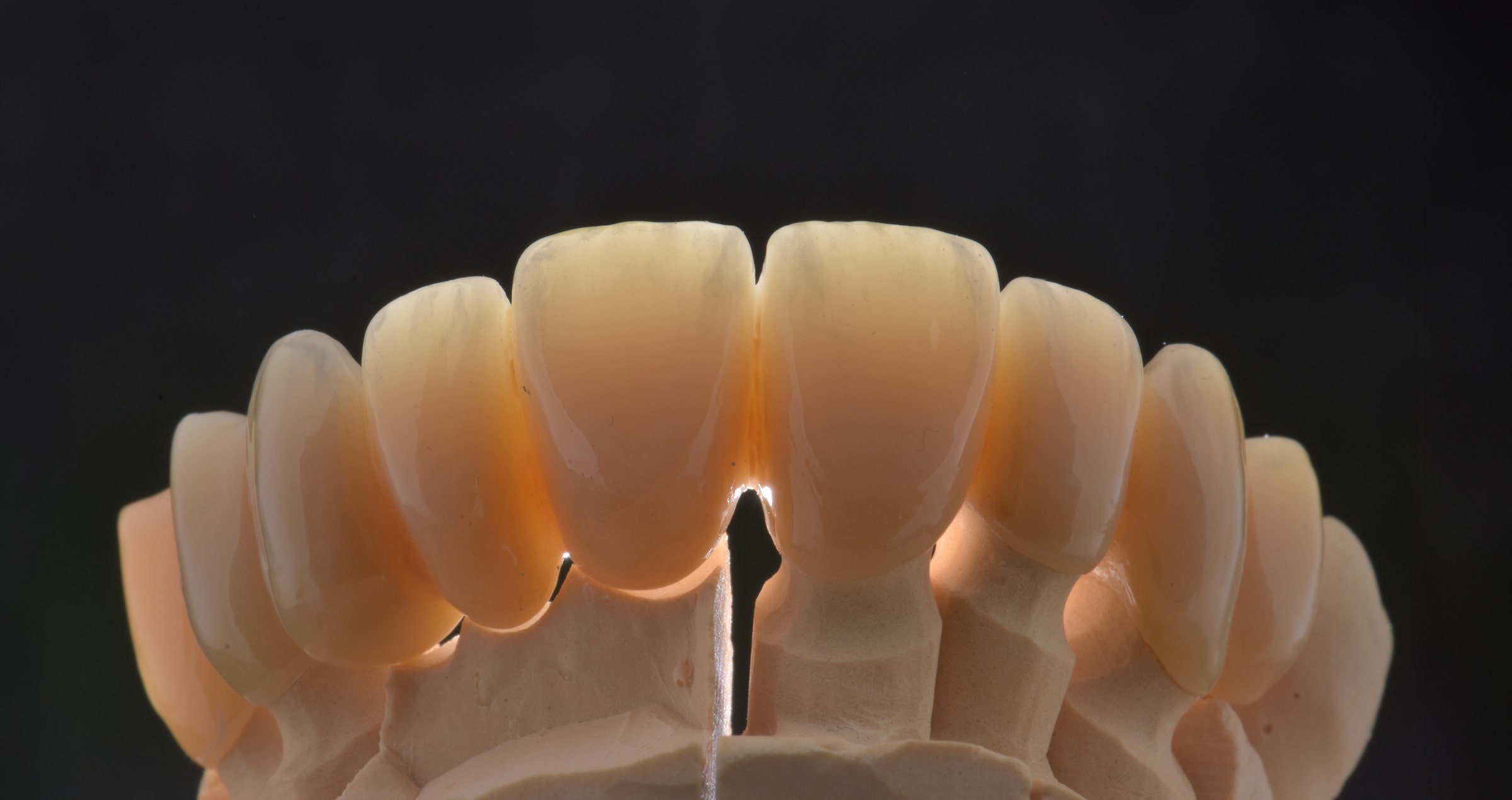

Pamatojoties uz KATANA™ Zirconia YML A3 ar CERABIEN™ ZR FC Paste Stain
Pateicoties DT Marco Stoppaccioli – L’Aquila

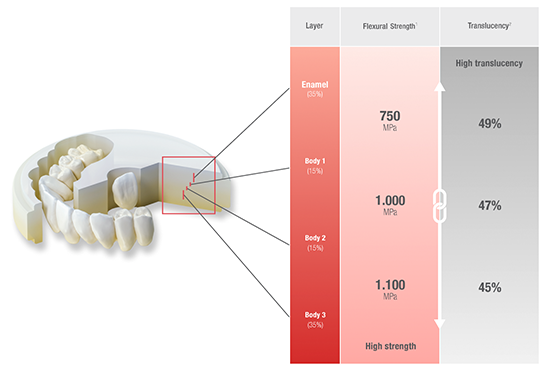

Image - desktop

(..%) katra slāņa biezums diskā %.

Mērījuma nosacījums:
Novērtē pēc pamatmateriāla (balta krāsa).
1 Saskaņā ar ISO 6872: 2015, parauga izmērs: 3 × 4 × 40 mm.
2 Visa gaismas caurlaidība, apgaismojums: D65, parauga biezums: 1,0 mm.

Datu avots: Kuraray Noritake Dental Inc. Skaitliskā vērtība mainās atkarībā no apstākļiem.

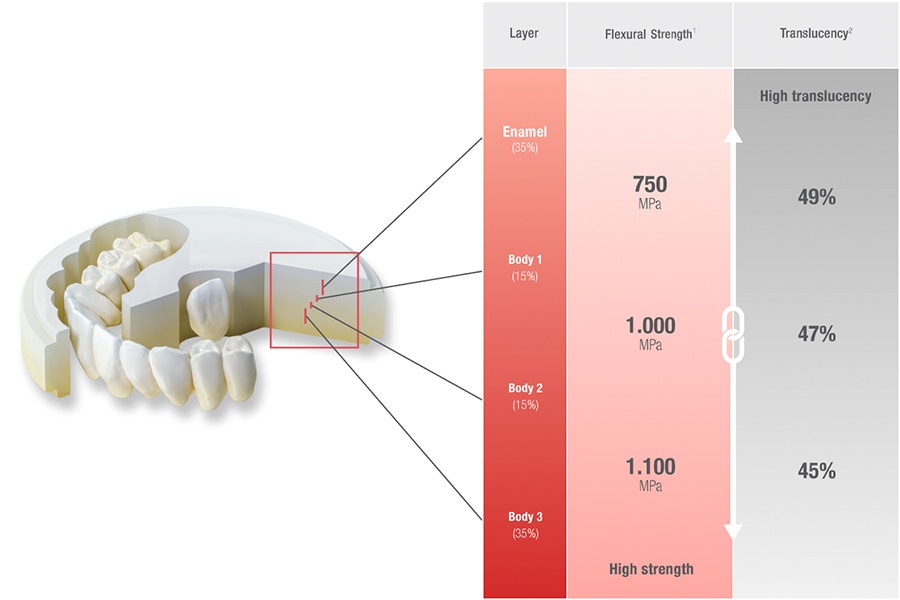

Image - mobile

(..%) katra slāņa biezums diskā %.

Mērījuma nosacījums:
Novērtē pēc pamatmateriāla (balta krāsa).
1 Saskaņā ar ISO 6872: 2015, parauga izmērs: 3 × 4 × 40 mm.
2 Visa gaismas caurlaidība, apgaismojums: D65, parauga biezums: 1,0 mm.

Datu avots: Kuraray Noritake Dental Inc. Skaitliskā vērtība mainās atkarībā no apstākļiem.

Inovatīva daudzslāņu tehnoloģija

KATANA™ Zirconia YML tika izstrādāts, iedvesmojoties no dabīgiem zobiem, lai precīzi un dabiski atspoguļotu īstu zobu krāsu un gaismas caurlaidību.

Emaljas slānis

Lai nodrošinātu augstu gaismas caurlaidību, kas atbilst priekšzobu anatomijai.

1. pamata slānis

Lai nodrošinātu viendabīgu krāsu un gaismas caurlaidību emaljas slānim.

2. un 3. pamata slānis

Lai nodrošinātu dziļu un izteiksmīgu krāsu, vienlaicīgi neradot balināšanu efektu.

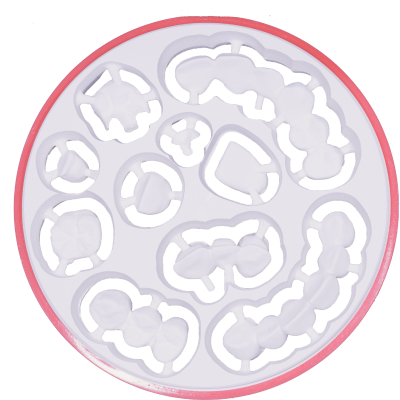

PLAŠS PIELIETOJUMA DIAPAZONS

“VISS VIENĀ” RISINĀJUMS

Tiek piedāvātas plašas protēzes dizaina iespējas – sākot ar venīriem un beidzot ar visas zobu rindas atjaunošanu. Katram individuālajam gadījumam jūs varat izvēlēties monolītu, cut-back vai karkasa dizainu ar atbilstošu izgatavošanas procedūru atkarībā no individuālajām vajadzībām.

  • Garš zobu tilts
  • Trīs vienību tilti
  • Kroņi
  • Inlejas, onlejas
  • Lamināta venīri

PILNVĒRTĪGA KATANA™ Zirconia YML IESPĒJU IZMANTOŠANA

KONTROLĒTA DEFORMĀCIJA KARSTUMĀ

Par spīti tam, ka materiāls sastāv no dažādiem slāņiem, tam ir nodrošināta augstas precizitātes saraušanās un stabila termālās ekspansijas koeficienta vērtība, jo materāla izstrādes process tiek uzraudzīts no apstādes sākuma līdz pat veidošanai. Kārtīga kvalitātes kontrole, savienojumā ar unikāliem, uzņēmumā izstrādātiem materiāliem, rezultējas mūsu visu laiku labākajā cirkonijā.

Pateicoties šiem unikālajiem, uzņēmumā izstrādātajiem cirkonija izejmateriāliem, mēs izceļamies uz citu ražotāju fona. Mēs garantējam materiālu, uz kuru vienmēr var paļauties.

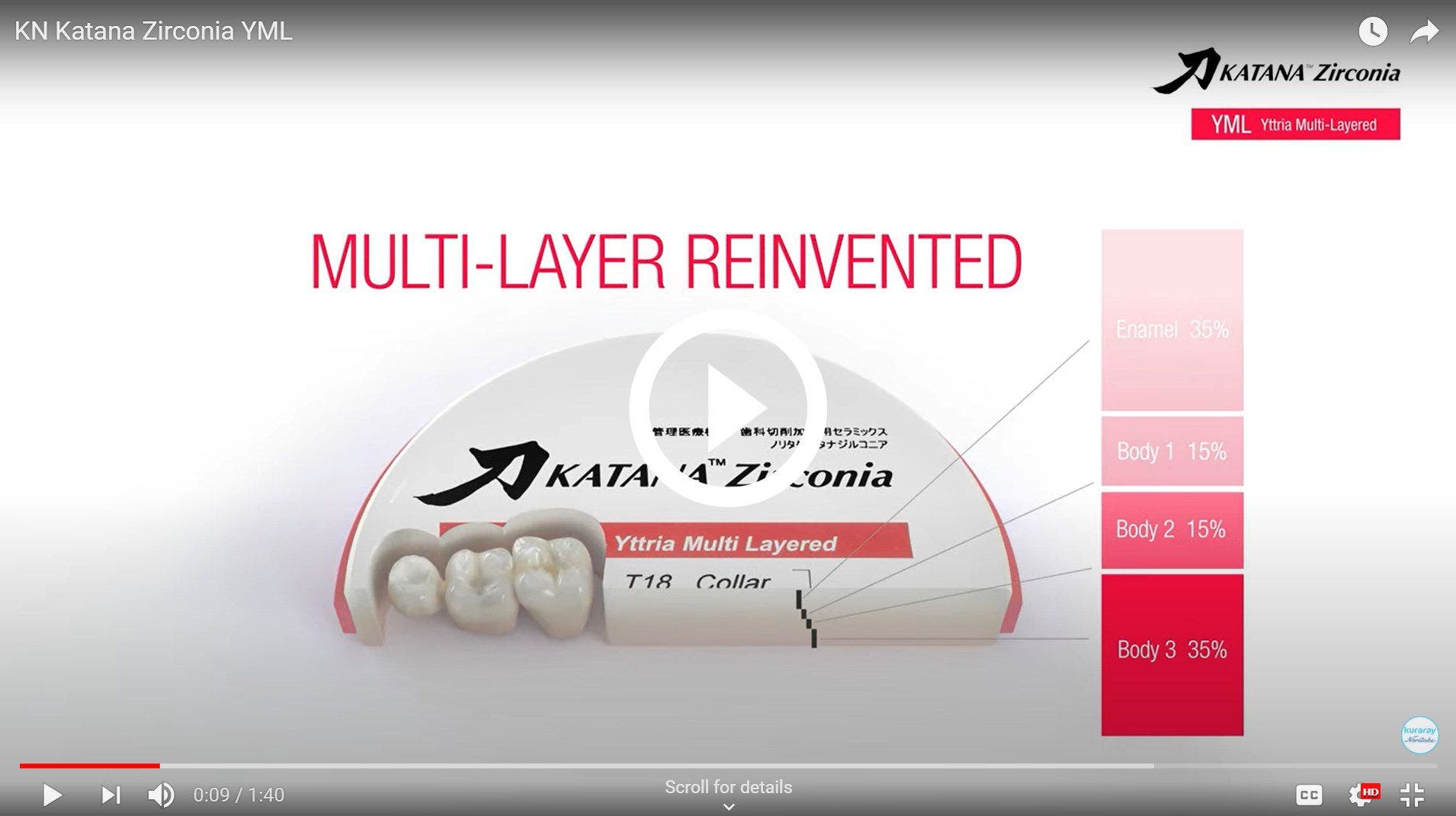

KĀ TAS DARBOJAS

Video

Samazinājums plānākām restaurācijām

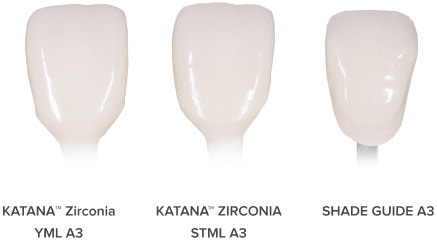

SALĪDZINĀJUMS AR AUGSTAS GAISMAS CAURLAIDĪBAS CIRKONIJU

KATANA™ Zirconia YML un STML attēloti tālāk ar pamata slāņa biezumu 0,4 mm* YML un 0,8 mm* STML produktam. YML pamata slāni var padarīt vēl plānāku nekā augstas gaismas caurlaidības cirkonija slāni, vēl vairāk palielinot gaismas caurlaidību.

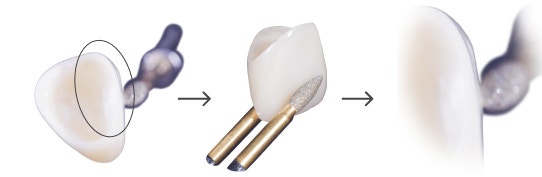

MARGINĀLĀ STABILITĀTE UN UZLABOTA PIEGULŠANAS PRECIZITĀTE

KATANA™ Zirconia YML restaurācijām novērojamas asas robežas un mazāka drupšana, kas nozīmē labāku marginālo piegulšanu. Plānākās restaurācijās ir redzams, ka labs rezultāts ar asām restaurāciju robežām atbalsta KATANA™ Zirconia YML lietošanu.


Arī tad, ja protēzes malas ir noslīpētas līdz ļoti plānam profilam, tās joprojām ir gludas, neveidojot atlūzas.

ĀTRA SACIETĒŠANA LĪDZ PAT TRĪS VIENĪBU TILTAM

Izcila kvalitāte apvienojumā ar ātrumu ir pilnīgi unikāla KATANA™ Zirconia
īpašība, salīdzinot ar konkurentu produktiem.

Chart

Iepriekš sniegtais ieteikums par sacietēšanu ir tikai informatīvs, atkarībā no katras atsevišķas krāsns īpašībām, var būt nepieciešamas noteiktas korekcijas.
54 un 90 minūšu kausēšanas gadījumā, ja to nevar iestatīt atbilstoši grafikam, kausēt nedrīkst.

Toņa / biezuma izvēle

Izvēlieties nepieciešamo toni un atbilstošo diska biezumu,
lai iegūtu piemērotu gradāciju starp kroņa garumu, emalju un pamattoni (dentīnu).

Chart

KATANA™ Zirconia YML krāsai jābūt izvēlētai glazēšanai un pulēšanai; pulēšanas laikā tā kļūst tumšāka. Tāpēc izvēlieties gaišāku toni par vēlamo mērķa krāsu.

  • Internationally highly valued



    Testimonials

  • Afbeelding Professor Dr. Florian Beuer
  •



    Professor Dr. Florian Beuer
    Germany

    “New grade zirconia material that combines strength and translucency in one disc. It provides stability where necessary and aesthetics where we need them. The best of both worlds.”

  •



    Nondas Vlacholoulos, MDT
    Greece

    “One material for every indication with the highest aesthetics, strength and reliability.”

  • Afbeelding Nondas Vlacholoulos, MDT
  • Afbeelding Daniele Rondoni, MDT
  •



    Daniele Rondoni, MDT
    Italy

    The request of zirconia evolution is a perfect combination of optical properties and strength. Finally, we can have esthetics and durability for our restoration with KATANA Zirconia YML thanks to Kuraray Noritake Dental's new technology.

  •



    Andreas Chatzimpatzakis, MDT
    Greece

    “If you ask me Y I use YML? The answer will be... Υπεροχή (η) [Yperochí ]: Excellence .... in aesthetics, strength and reliability!!”

  • Afbeelding Andreas Chatzimpatzakis, MDT
  • Afbeelding Martin Laurik, MDT
  •



    Martin Laurik, MDT
    Estonia

    The superior esthetics of Katana YML is a great option for monolithic crowns while still offering reliable strength in demanding situations.

  •



    Michael Braian, MDT
    Sweden

    “This is what I have been looking for, a multi-layer zirconia with amazing strength from top to bottom. In some cases doing surface characterization feels like overkill.”

  • Afbeelding Michael Braian, MDT

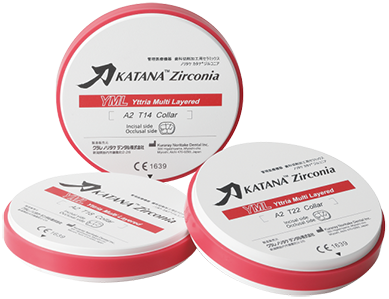

Produkti

Lai pasūtītu, izvēlieties no sekojošajām opcijām.

KATANA™ Zirconia YML 14MM
KATANA™ Zirconia YML 14MM
-
+
KATANA™ Zirconia YML 18MM
KATANA™ Zirconia YML 18MM
-
+
KATANA™ Zirconia YML 22MM
KATANA™ Zirconia YML 22MM
-
+

Bieži uzdotie jautājumi

Esam izveidojuši sarakstu, kurā apkopotas atbildes uz visbiežāk uzdotiem jautājumiem par CLEARFIL MAJESTYTM ES-2 Universal kompozītu.

How do the mechanical properties of the KATANA™ Zirconia series differ from each other?

The existing KATANA™ Zirconia multi-layered materials (KATANA™ Zirconia UTML/ STML/HTML) have a color gradation, while the base material of the respective type is the same for all layers. The strength and translucency are the same for all layers of the respective type.



KATANA™ Zirconia YML is different in this regard. It is the latest KATANA™ multi-layered disc with a balanced combination of color/translucency and flexural strength gradation. Please refer to chart below, for the overview of the mechanical properties and translucency levels of each type of KATANA™ disc.

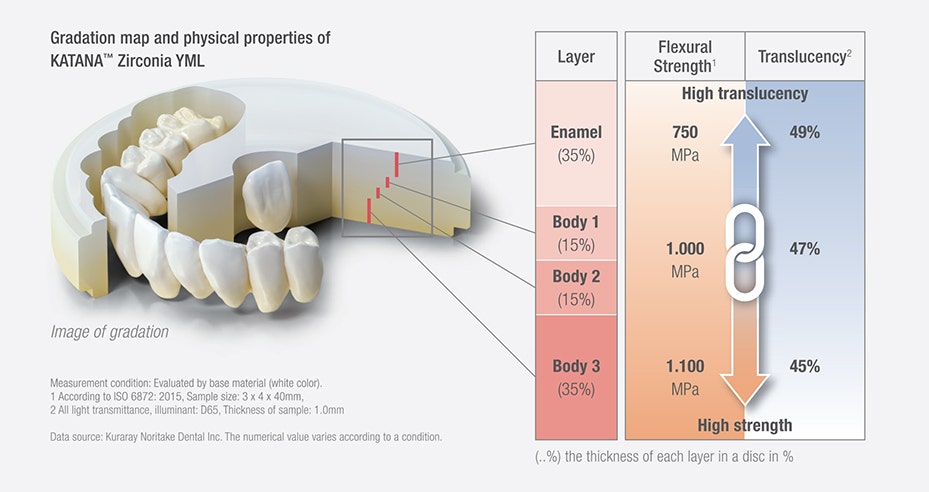

Gradation map and physical properties of KATANA™ Zirconia YML

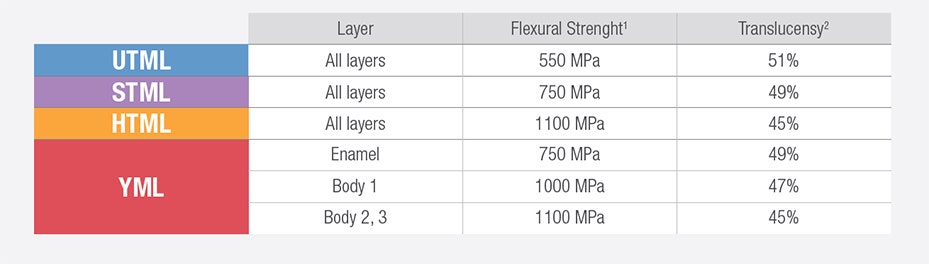

Comparison of physical properties of KATANA™ zirconia series



What exactly does “All-In-One” mean?

“All-In-One” means all application range with one disc. KATANA™ Zirconia YML is characterized by a unique raw material combination of highly translucent zirconia with high strength, which are integrated together by an advanced manufacturing technology. As an “All-In-One” solution, KATANA™ Zirconia YML offers exceptional design flexibility, from long-span full-arch monolithic bridge restorations up to highly aesthetic anterior monolithic crown restorations.

What are the recommended and indicated application areas for KATANA™ Zirconia YML?

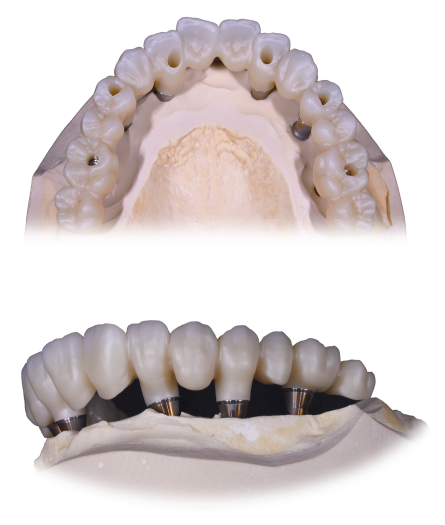

From complicated full-arch restorations to highly aesthetic demanding anterior single-unit restorations, an exceptional design flexibility is available. In each of these cases, you can choose a monolithic, cut-back or framework design with the appropriate fabrication process, depending on your specific needs.



 Framework

 Long span bridge

 Anterior / posterior crown

 Inlay, onlay

 Laminate veneer

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials. By using materials that Kuraray Noritake Dental Inc. has developed themselves specifically for the KATANA™ Zirconia series, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.

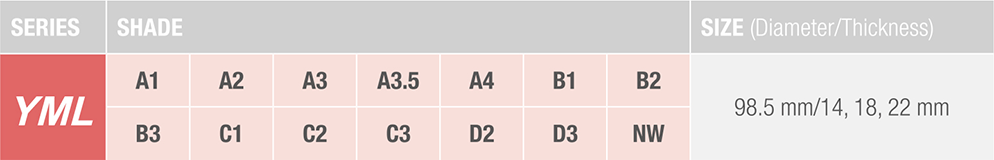

What shade selection is available for KATANA™ Zirconia YML and in which disc thicknesses and shapes are these available?

KATANA™ Zirconia YML is available in a shade selection of 14 shades, which are adapted to the VITA-classical A1-D4™ Shade Guide. Please refer to the following table overview for more information about shape and disc-thickness.



Shade / Thickness selection



What should be kept in mind when designing restorations with KATANA™ Zirconia YML?

Please observe the following guidelines of applicable minimum wall thickness:





The thickness specifications apply to full zirconia restorations. The thickness of build-up porcelain is not included. The minimum wall thicknesses apply to full zirconia restoration or to frame-work for build-up porcelain restoration. In these cases, 0.4 mm (anterior) or 0.5 mm (posterior) should be kept for the area located in the bottom (lower) half of the disc. If full zirconia veneer restoration is used for combination with the porcelain, 0.8 mm or more should be kept for the area located in the upper half of the disc.

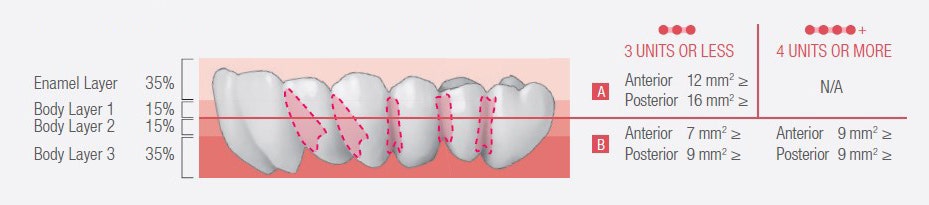

Please observe the following guidelines of applicable cross-section wall thickness:





3 units or less Connector cross-section area can be placed in any layer.



A

The maximum number of pontics is one. Not suitable for a cantilevered bridge. 4 units or more - at least 50% of the connector cross section should be positioned in the bottom (lower) half of the disc.



B

The maximum number of pontics between two abutments (teeth) should not exceed two. For cantilever bridge, keep the number of pontics at one. In this case, the connector cross-section must be at least 12 mm.

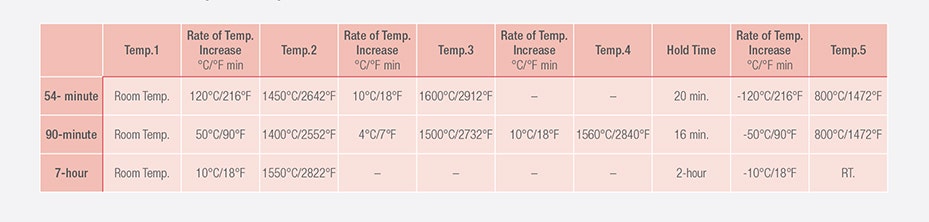

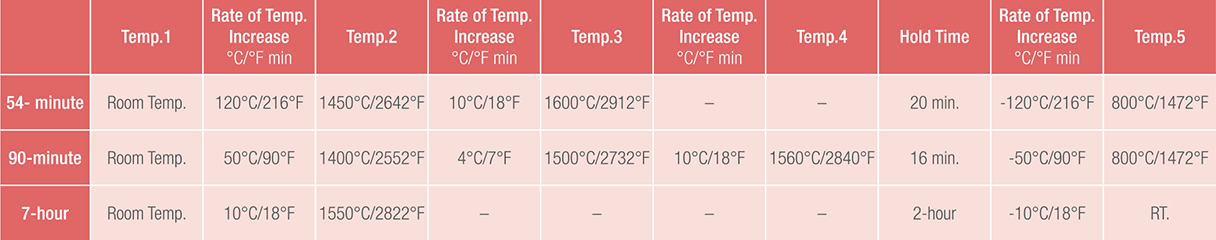

What is the sintering schedule of KATANA™ Zirconia YML?

Please observe the following of sintering schedule:





The above sintering recommendations represent only a guideline; depending on each individual furnace and condition, some adjustments might be necessary. If the 54 or 90-minute sintering program is not programmable in your furnace, it is not possible to set the furnace according to one of these schedules.

Is it possible to speed sinter a KATANA™ Zirconia YML long span bridge?

No, this is not possible. 54- or 90-minute sintering is only possible for up to a three-unit bridge restorations.

How is the crystal distribution within KATANA™ Zirconia YML structured?

The body layer has a higher content of tetragonal crystals, while the cubic content gradually increases towards the enamel layer.

Which finalization methods are recommended for KATANA™ Zirconia YML?

KATANA™ Zirconia YML can be finalized by glazing, staining or porcelain application. With an integrated translucency, color and strength gradient, KATANA™ Zirconia YML is designed to achieve highly aesthetic results by simply using the glazing technique. In case of additional color adjustments, characterizations or individualizations are desired, the unique CERABIEN™ ZR (CZR) FC Paste Stain can be used to achieve the final high aesthetic result according to your preferences.

Is it also possible to finalize KATANA™ Zirconia YML restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with the PEARL SURFACE™ Z (polishing paste). Please note that the shade of KATANA™ Zirconia YML should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

Is it possible to wet mill KATANA™ Zirconia YML?

It is generally not recommended to wet-mill KATANA™ Zirconia, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce the translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots on the restoration during the sintering process. Causes for this are for example oily fingers, excessive purging with high air pressure, residuals of silicon point substance that has been applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that has been created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Is it possible to use coloring liquids from other manufacturers for KATANA™ Zirconia YML?

This is not recommended, as the desired level of translucency or color development cannot be achieved.

Are the sintering schedules for KATANA™ Zirconia the same as other existing zirconia products?

The sintering parameters differ from other manufacturers’ zirconia products. The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Note: The material is removed from the furnace at 800°C. High-speed sintering is possible for up to three-unit bridge restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace capable of setting the KATANA™ Zirconia YML sintering program according to its technical specifications can be used, regardless of the manufacturer. If the KATANA™ Zirconia YML sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multilayer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration. Please refer to our “Handy Chart” as a guideline for this.

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which a “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).
