Das lichthärtende Befestigungskomposit bietet eine lange Verarbeitungszeit, die das gleichzeitige Einsetzen mehrerer Veneers ermöglicht. PANAVIA™ V5 Tooth Primer versiegelt die Klebefläche durch sofortige Aushärtung bei Kontakt mit der Paste (Touch Cure). Das Ergebnis ist ein starker und dauerhafter Verbund.
Eine geringe Schichtdicke und eine gute Polierbarkeit ermöglichen es den Anwendern, glatte Ränder zu schaffen. Vier farbstabile Farbtöne bieten eine lang anhaltende Ästhetik. Passende Try-in-Pasten erleichtern die Auswahl des richtigen Farbtons.
Eine geeignete Pastenviskosität und -konsistenz erleichtert die Applikation und die korrekte Positionierung der Restauration, während die einsekündige Tack-Cure-Funktion für eine sanfte Entfernung von überschüssigem Material sorgt.
Ein Befestigungsmaterial für Veneers sollte eine ausreichend lange Verarbeitungszeit bieten und zugleich einen hohen und langzeitstabilen Haftverbund ermöglichen. Kuraray Noritake Dental Inc. hat eine Lösung gefunden, um beides zu vereinen: die Touch-Cure-Technologie für ein Befestigungskomposit.
PANAVIA Veneer LC ist ein lichthärtendes Befestigungskomposit mit hervorragender Stabilität unter Umgebungslicht. Dies sorgt für eine Verarbeitungszeit von 200 Sekunden*. Somit können Sie problemlos mehrere Veneers gleichzeitig befestigen. Die Polymerisation beginnt erst, wenn Sie dazu bereit sind.
*Verarbeitungszeit bei Umgebungslicht (8000 Lux.): 200 Sekunden.

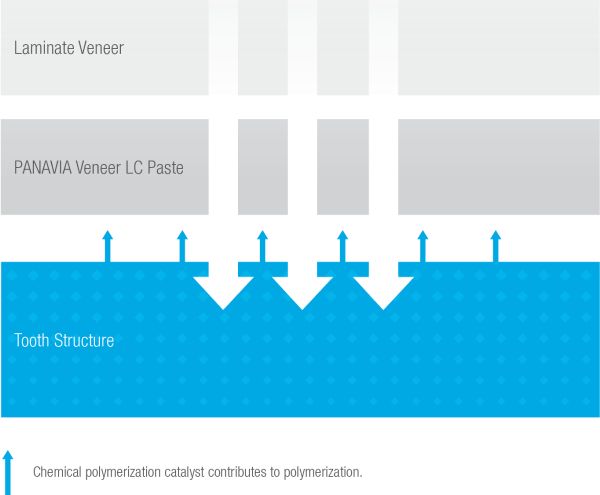

Trägt zur Polymerisation des adhäsiven Interfaces bei.
Hervorragende Stabilität gegenüber Umgebungslicht.
Versiegeln Sie das adhäsive Interface zur Zahnhartsubstanz
durch Touch-Cure und achten Sie dabei auf eine ausreichende
Einwirkzeit.

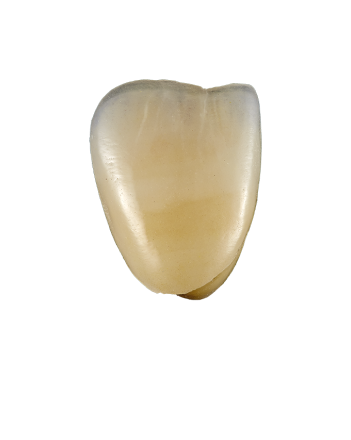

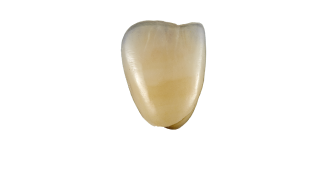

Das ästhetische Erscheinungsbild von Veneers wird aufgrund ihrer geringen Schichtstärke und hohen Transluzenz in der Regel stark von der Farbe des Befestigungsmaterials beeinflusst. Daher ist es wichtig, ein farbstabiles, passendes Befestigungskomposit zu verwenden, bei dem selbst sensible Randbereiche auch nach längerer Zeit unsichtbar bleiben. PANAVIA Veneer LC erfüllt diesen Anspruch.

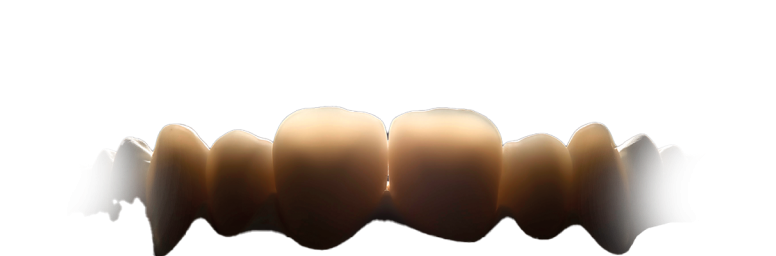

Eine hohe Farbstabilität ist wahrscheinlich das wichtigste Merkmal, das für eine lang anhaltende Ästhetik verantwortlich ist. Diese wird durch eine ausgewogene Formulierung des Materials und die Touch-Cure-Technologie erzielt.
Ist es möglich, den Zeit- und Arbeitsaufwand für das Einsetzen von Veneers mit einem Befestigungskomposit zu reduzieren und eine homogene Applikation, eine exakte Veneer-Positionierung, eine komfortable Überschussentfernung sowie eine schnelle Politur zu unterstützen? PANAVIA Veneer LC erfüllt all diese Anforderungen und bietet dank der speziell entwickelten Applikationsspitze eine hohe Kontrolle bei der Anwendung.
Das Befestigungskomposit bietet eine hervorragende, ideale Konsistenz für eine einfache sowie sichere Anwendung. Dank der Nanocluster-Füllertechnologie bleibt es nicht an der Applikationsspitze kleben und lässt sich gut applizieren.
Neu entwickelte kugelförmige Silikat-Füllstoffe sorgen dafür, dass das Material da bleibt, wo es aufgetragen wurde und zugleich gut fließt, wenn das Veneer auf den Zahn gesetzt wird – für eine einfache Platzierung ohne Verrutschen.
Überschüssiges Komposit lässt sich nach einer einsekündigen Tack-Aushärtung in einem Stück mit der Sonde ganz leicht und sanft entfernt.
1. Ausgangssituation: Zustand vor der Präparation von sechs Veneers (13 - 23).
2. Die ideale Konsistenz und ausgezeichnete Pastenviskosität von PANAVIA Veneer LC ermöglichen eine einfachere Dosierung, ein exaktes Einsetzen und die komfortable Entfernung von überschüssigem Befestigungsmaterial.

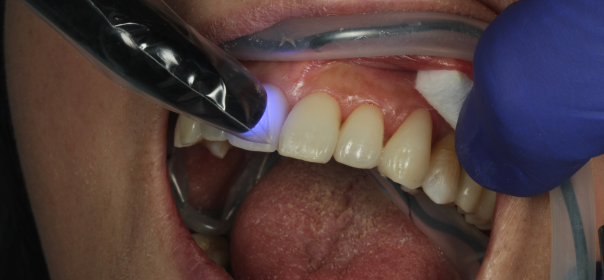

3. Lichthärtung in allen Bereichen; auch in den Randbereichen.

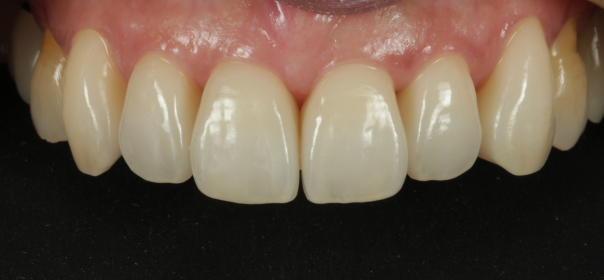

4. Ergebnis nach der Befestigung der sechs Veneers aus KATANA™ Zirconia STML.
Detaillierte Anleitung zum Vorgehen finden Sie in der Gebrauchsanweisung.
Langzeitstabiles Ergebnis
PANAVIA V5 Tooth Primer ist ein selbstätzendes Adhäsiv für Zahnsubstanz (Dentin und Schmelz), das die Zahn-Adhäsiv-Grenzfläche sicher abdichtet, sobald PANAVIA Veneer LC-Paste aufgetragen wird. Diese Touch-Cure-Technologie initiiert die Polymerisation nur am adhäsiven Interface und stellt eine starke Bindung zu Schmelz und Dentin her, beeinflusst jedoch nicht die Abbindereaktion des Befestigungsmaterials. Die hohe Haftfestigkeit am Restaurationsmaterial wird durch die Verwendung des bewährten CLEARFIL™ CERAMIC PRIMER PLUS erreicht.

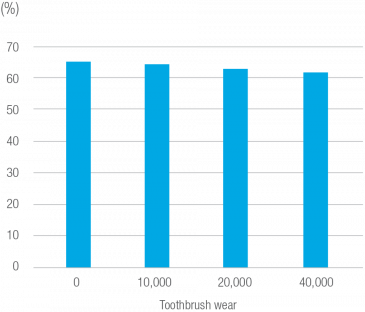

Die sehr gute Polierbarkeit und die sichere Glanzbeständigkeit unterstützen ein langzeitstabiles ästhetisches Ergebnis auch im Bereich der Ränder.
Quelle: Kuraray Noritake Dental Inc.
Testbedingungen: Probe ø10 mm, Dicke 2 mm. Nach dem Glätten der Oberfläche mit wasserbeständigem Schleifpapier Nr. 1000 bis Nr. 2500 Endpolieren mit Läppfolie. Ausgangswert (Messen Sie den Glanzgrad nach dem Polieren*). Zahnbürstenverschleiß (gemessen nach 40.000 Zügen mit 250 g Belastung, 30 Zügen/Minute, 10 Gew.-% Zahnpasta*); gemessen mit einem Glanzmessgerät VG 2000 (Nippon Denshoku Kogyo) bei einem Winkel von 60° Hinweis: Werte können je nach Messbedingungen variieren.
Quelle: Kuraray Noritake Dental Inc.
*Keine Marke von KURARAY CO., LTD.
Testbedingungen: Polieren Nr. 1000, Auftragen jedes Primers PANAVIA Veneer LC-Paste: Lichthärten für 20 Sek., Befestigen des SUS-Chips (3 mm) mit PANAVIA SA Cement Universal. Gemessen nach Lagerung in Wasser 37 °C für 1 Tag, Wärmezyklus: 4 – 60 °C.
Quelle: Kuraray Noritake Dental Inc.
*Keine Marke von KURARAY CO., LTD.
Testbedingungen: Polieren Nr. 1000, Sandstrahlen (KATANA Zirconia HT) oder Flussäureätzen (Glaskeramik), Auftragen von PANAVIA V5 Tooth Primer für 20 Sek. PANAVIA Veneer LC-Paste: 20 Sek. lichthärten, SUS-Spitze (5 mm) mit PANAVIA SA Cement Universal befestigen. Gemessen nach Lagerung in Wasser 37 °C für 1 Tag, Wärmezyklus: 4 – 60 °C.
Quelle: Kuraray Noritake Dental Inc.
*Keine Marke von KURARAY CO., LTD.
Testimonials
Dr. Greg Campbell, DDS
USA
“Love the versatility of the new PANAVIA Veneer LC cement when it comes to delivering my Veneers and Onlays. I can use the PANAVIA V5 Tooth Primer or my CLEARFIL Universal adhesive and get the proven benefits of the Original-MDP and the “Gold Standard” bonding we have come to expect from Kuraray. Easy to use, easy to clean up and extremely strong bonds. Four shades and try-in pastes give me complete control and ensures clinical success time and time again!
Thank you, Kuraray Noritake for another great product.”
Dr. Karyn Halpern, DDS
USA
“I am so impressed by the bond of this new cement. It’s not only strong but it was super easy to use, place, and clean up!
Needless to say, I am a fan!”
Dr. Gianmarco O'Brien, DDS, Inc.
USA
"This product is what I have come to expect from a company like Kuraray, the leader in adhesive dentistry. Easy to use clinically (excellent handling), very color stable since there is NO POST-BONDING GRAYING effect from tertiary amines (aromatic amine). I have total confidence in the DURABLE bond strength with their products. This is my new go-to veneer adhesive resin cement system!"
Wählen Sie zum Bestellen aus den folgenden Optionen.
1.8ml
Universal (A2)
Clear
Brown (A4)
White
Opaque
4ml
20 Applicator tips (16g)
4ml
Wir haben eine umfassende Liste an Antworten auf die wichtigsten Fragen zusammengestellt.
“PANAVIA™ Veneer LC” is a light-cure adhesive resin cement system. It consists of the “PANAVIA™ Veneer LC” Paste (a light-cure cement paste), “CLEARFIL™ CERAMIC PRIMER PLUS” (a silane, zirconia & metal primer), K-ETCHANT Syringe (Phosphoric Acid), and “PANAVIA™ V5” Try-in Paste. “CLEARFIL™ Universal Bond Quick” or “PANAVIA™ V5” Tooth Primer can be chosen for tooth treatment.
Cementation of ceramic and composite inlays, onlays and laminate veneers with less than 2 mm thickness of the following materials: silica-based ceramics (e.g. conventional porcelain, lithium disilicate), hybrid ceramics, composite resin and “KATANA™ Zirconia” STML/UTML/YML (with a thickness of less than 1.2 mm).
Follow the Instructions for Use of the restorative material. In the absence of specific instructions, we recommend the following procedures and application of the provided “CLEARFIL™ CERAMIC PRIMER PLUS”: if the adherent surface is silica-based ceramic (e.g. conventional porcelain, lithium disilicate), hybrid ceramic or composite resin: Based on the type of restoration, hydrofluoric acid etching or air abrasion treatment may be used:
Acid Etching Treatment (e.g. conventional porcelain, lithium disilicate):
Etch the adherent surface with a hydrofluoric acid solution in accordance with the Instructions for Use of the solution. Rinse the adherent surface with water and dry.
Air Abrasion Treatment (e.g. composite resin):
Roughen the adherent surface by blasting with alumina powder (30-50 μm) using air pressure of 0.1-0.2 MPa (1-2 kgf/cm2, 15-29 psi, 1-2 Bar). The air pressure and powder size should be properly adjusted to suit the material and/or shape of the prosthetic restoration, using caution to prevent chipping. Clean the prosthetic restoration in an ultrasonic cleaning unit for 2 minutes or with “KATANA™ Cleaner” with 10 seconds of rubbing and then rinse with water.
Although technically possible, we recommend to use “CLEARFIL™ CERAMIC PRIMER PLUS” to get optimal performance for glass ceramics.
Yes, doing that would contaminate the restoration and, hence, decrease the bond strength. To remove the contamination, use “KATANA™ Cleaner” for 10 seconds with a rubbing motion then rinse with water until the color has been disappeared and dry the restorations to remove contaminants, or apply K-ETCHANT Syringe (Phosphoric Acid) for 5 seconds in case of non-zirconia restorations.
There are 2 ways to treat the prepared tooth: with the “PANAVIA™ V5” Tooth Primer or “CLEARFIL™ Universal Bond Quick”.
a) “PANAVIA™ V5” Tooth Primer: Etch the enamel with the K-ETCHANT (phosphoric acid) for 10 seconds, rinse and dry. Apply the Tooth Primer to the entire prepared tooth surface, with an applicator brush and leave it in place for 20 seconds. Thoroughly dry the entire adherent surface sufficiently by blowing mild, oil-free air until all water is evaporated from the primer.
b) “CLEARFIL™ Universal Bond Quick”: Selective etch the enamel with K-ETCHANT syringe (phosphoric acid) for 10 seconds, rinse and dry. Apply BOND with a rubbing motion to the entire preparation with the applicator brush. No waiting time is required. Dry the entire cavity wall sufficiently by blowing mild air for more than 5 seconds until BOND does not move.
When cementing laminate veneers, there is no need to light-cure BOND prior to seating the laminate veneers. It should be cured after seating the laminate veneers with the “PANAVIA™ Veneer LC” cement. When cementing inlays or onlays, BOND should be light-cured before seating the restoration. Please confirm the curing time by referencing the Instructions for Use.
In terms of bond strength, both are similar and provide excellent results. Nevertheless, the “PANAVIA™ V5” Tooth Primer will provide a “touch-cure” mechanism that will seal the bonding interface before the final light curing. Additionally, while the application time is shorter with “CLEARFIL™ Universal Bond Quick” (no waiting time versus 20 s), there is a longer working time under ambient light with the “PANAVIA™ V5” Tooth Primer (200 seconds vs 160 seconds with the BOND).
PANAVIA™ Veneer LC” offers the ideal paste consistency, not being too high or too low as several competitive products. This will facilitate the dispensing of the paste onto the restoration and smooth seating of such restoration. A low film thickness and long working time are also advantages over competitive products. In addition, in case of using it with the “PANAVIA™ V5” Tooth Primer, the “touch-cure” mechanism will provide bonding interface sealing.
One of the following two techniques can be used:
Tack-Cure Clean-Up Technique: Light-cure any excess cement in several spots for 1 second at a distance of 10-15 mm. Hold the prosthetic restoration in position, remove the tack-cured excess cement using a dental instrument.
Wet Clean-Up Technique: Any excess cement remaining at the margins can be removed with a small brush, foam pellet, dental floss or dental explorer.
Regardless of the technique used, final curing will be required as the next step. Please refer to the Instructions for Use.
The use of a protective gel, like “PANAVIA™ F 2.0” OXYGUARD II, is beneficial to prevent the forming of an oxygen inhibited layer thus helping to create smooth margins.
There are 4 shades of “PANAVIA™ Veneer LC” Paste available: Clear, Universal (A2); White and Brown (A4). Each shade has a corresponding glycerin based, water soluble Try-In Paste.
The “PANAVIA™ V5” Try-In Paste shades match the “PANAVIA™ Veneer LC” shades (in light-cured state) and allow for a simulation of the final appearance of the restoration. The “PANAVIA™ V5” Try-In Paste cannot be (light) cured, and can be removed easily with water.
Yes, “PANAVIA™ Veneer LC” Paste is color stable.
Since “PANAVIA™ Veneer LC” Paste is only light curing, no amine reducing agent based redox curing system is included avoiding unwanted discoloration over time.
The total amount of inorganic filler is approximately, 66 wt%, 47 vol%. The particle size of inorganic fillers range from 0.05 μm to 8 μm.
“PANAVIA™ Veneer LC” Paste has spherical silica and nano cluster fillers. This provides a paste which is not runny, has excellent handling, and resistance to sagging.
“PANAVIA™ Veneer LC” Paste film thickness is around 8 μm.
Zirconia should not be used because it may not have sufficient translucency. However, zirconia of our products with high translucency (“KATANA™ Zirconia” STML/UTML, “KATANA™ Zirconia” Block STML) can be used with a thickness of less than 1.2 mm.
“PANAVIA™ Veneer LC” has excellent bond strength to several substrates (e.g. enamel, dentin, lithium disilicate, “KATANA™ Zirconia”, feldspar ceramic) at a similar level to the acclaimed “PANAVIA™ V5”.
Approximately 20-30 teeth for laminate veneer.
No, the “PANAVIA™ Veneer LC” Paste tips are specially designed for an easy extrusion and application and their gauge, which is 16 (1.65 mm in diameter) and differ from the “CLEARFIL MAJESTY™ ES Flow” ones.
The product should be stored in the refrigerator. All components stored in the refrigerator should be brought to room temperature for 15 minutes before use in order to restore its normal viscosity and curing properties.
The shelf-life of “PANAVIA™ Veneer LC” components is 36 months from date of manufacture with refrigeration.
