CARACTÉRISTIQUES ET AVANTAGES

1

UNE TECHNOLOGIE DE POLYMERISATION INNOVANTE

Le collage photopolymérisable offre un long temps de travail qui facilite la mise en place simultanée de plusieurs facettes. PANAVIA™ V5 Tooth Primer fixe l'interface adhésive par une polymérisation immédiate au contact de la pâte (touch-cure). Il en résulte une liaison solide et durable.

2

HAUTE ESTHÉTIQUE

Une faible épaisseur de film et une bonne polissabilité permettent aux utilisateurs de créer des limites lisses. Quatre teintes différentes, sélectionnées et très stables, offrent une esthétique durable. Des try-in pastes assorties permettent de choisir facilement la bonne teinte.

3

UNE MANIPULATION OPTIMISÉE

La viscosité et la consistance appropriées de la pâte facilitent l'application et la mise en place correcte de la restauration, tandis que la polymérisation par collage en une seconde permet d'éliminer en douceur l'excès de colle.

Indications

Collage des inlays céramiques et
composites, des onlays et des facettes
dentaires avec une épaisseur inférieure
à 2 mm

Indications

Collage des inlays céramiques et composites,
des onlays et des facettes dentaires avec une
épaisseur inférieure à 2 mm

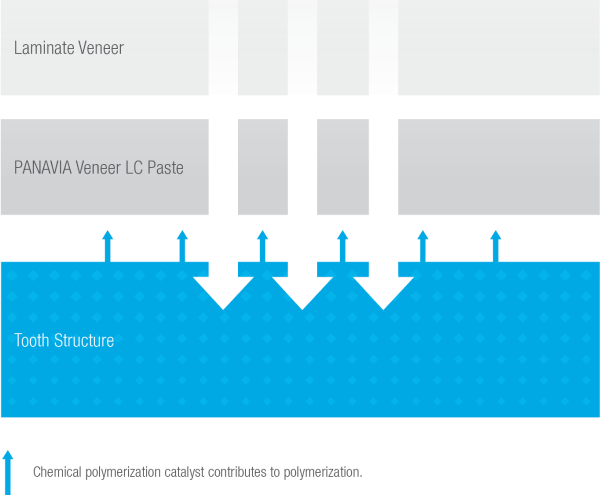

UNE TECHNOLOGIE DE
POLYMERISATION INNOVANTE

Un collage pour facettes doit offrir un temps de travail long, tout en obtenant une force de liaison élevée et stable dans le temps. Kuraray Noritake Dental Inc. a mis au point un moyen d'utiliser la technologie Touch-Cure avec un systeme de collage photopolymérisable pour offrir les deux.
PANAVIA Veneer LC est un système de collage composite résine photopolymérisable qui offre une excellente stabilité à la lumière ambiante, ce qui permet un temps de travail de 200 secondes*. Cela vous permet de placer plusieurs facettes à la fois sans avoir à courir contre la montre. La polymérisation peut être lancée dès que vous êtes prêt.

*Temps de travail en lumière ambiante (8000 lux.) : 200 secondes.

200
SEC
TEMPS DE TRAVAIL*
PRIMER AUTO-MORDANCANT<br>MONOCOMPOSANT

PRIMER AUTO-MORDANCANT
MONOCOMPOSANT

Contribue à la polymérisation de l'interface adhésive.

COLLE PHOTOPOLYMÉRISABLE

COLLE PHOTOPOLYMÉRISABLE

Excellente stabilité à la lumière ambiante.

LIGHT-CURE

Fixe l'interface adhésive avec la structure dentaire
par polymérisation touch-cure tout en assurant un
temps de travail suffisant.


Haute Esthétique

En raison de leur finesse et de leur grande translucidité, l'aspect esthétique des facettes est fortement influencé par la teinte de la colle. Il est donc essentiel d'utiliser un collage dont la teinte est stable et qui produit des limites restant indétectables dans le temps. PANAVIA Veneer LC remplit ces tâches.

High Aesthetics

RÉSISTANCE À LA DÉCOLORATION

La stabilité élevée de la couleur est probablement la caractéristique la plus importante responsable de l'esthétique durable, qui est assurée par une formulation bien équilibrée et la technologie de touch-cure.

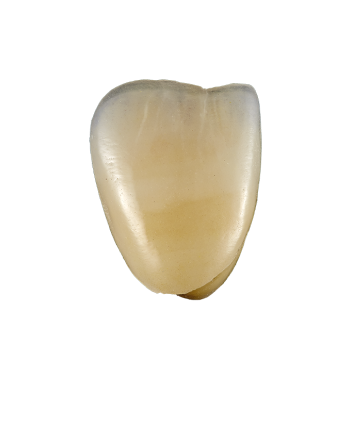

Tand image (Desktop)

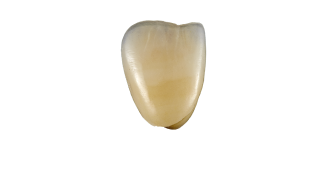

Tand image (Mobile)

UNE MANIPULATION OPTIMISÉE

Optimised Handling

Une pâte très facile à utiliser qui, à l'extrusion, diffuse une colle homogène, permettant un retrait facile des excès et rapide à polir. PANAVIA Veneer LC offre ces caractéristiques et permet de pouvoir bien contrôler l'application.

NE COLLE PAS

Le collage offre une excellente consistance, idéale pour une application facile et sûre sur la surface prothétique, car il ne colle pas à l'embout d'application grâce à la technologie nano-chargée.

CONSISTANCE IDÉALE

Grâce à de nouvelles charges de silice sphérique dans la colle, celle-ci reste en place à l'endroit où elle est appliquée, mais s'écoule bien lorsque la facette est posée sur la dent, - pour une mise en place facile stable et sans affaissement.

ÉLIMINATION EN DOUCEUR DES EXCÈS

L'excès de colle peut être enlevé d'un seul coup avec une sonde après un tack-cure d'une seconde.

CAS CLINIQUE

Dr. Sato

CAS CLINIQUE

Dr. Sato

Image 1

1. État initial avant la préparation de 6 facettes (de #13 à #23).

Image 2

2. L'excellente consistance et la viscosité de la pâte du PANAVIA Veneer LC ont permis de faciliter l'application, la mise en place et l'élimination de l'excès de colle.

Image 3

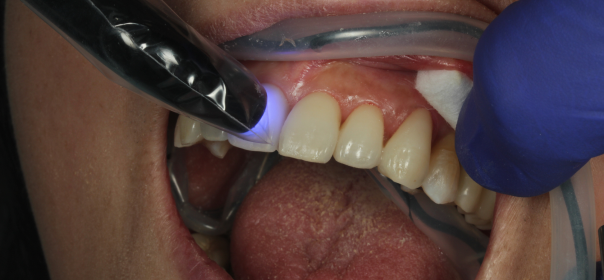

3. Photopolymérisation de chaque zone et des limites.

Image 4

4. Résultat final après assemblage de six facettes STML en zircone KATANA™.



Veuillez vous reporter au mode d'emploi pour des instructions détaillées.

Science

Excellente aptitude au polissage et rétention de la brillance

Une grande polissabilité et une excellente rétention de la brillance contribuent à l'esthétisme des bords dans le temps.

PANAVIA V5 Tooth Primer est un adhésif auto-mordançant pour la structure dentaire (dentine et émail) qui colle solidement l'interface dent-adhésif dès que la pâte PANAVIA Veneer LC y est appliquée. Cette technique "touch-cure" initie la polymérisation à l'interface de l'adhésif uniquement et établit une liaison solide avec l'émail et la dentine, mais n'affecte pas la réaction de prise du collage. Une force d'adhésion élevée au matériau de restauration est obtenue par l'utilisation du CLEARFIL™ CERAMIC PRIMER PLUS, qui a fait ses preuves.

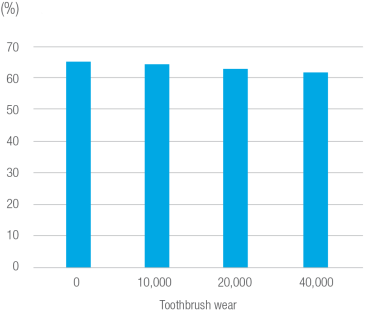

RÉTENTION DE LA BRILLANCE
RÉTENTION DE LA BRILLANCE
PANAVIA Veneer LC Paste

Source : Kuraray Noritake Dental Inc.

RÉTENTION DE LA BRILLANCE
RÉTENTION DE LA BRILLANCE
PANAVIA Veneer LC Paste
Variolink* Esthetic LC
RelyX* Veneer

Conditions d'essai : Spécimen ø10mm, épaisseur 2mm. Après lissage de la surface avec un papier abrasif résistant à l'eau de #1000 à #2500, polissage final avec un film abrasif. Valeur initiale (mesure du niveau de brillance après polissage*). Usure de la brosse à dents (mesurée après 40 000 coups de brosse à dents avec une charge de 250g, 30 coups/minute, 10 % de dentifrice en poids*). Mesuré avec un glossmètre VG 2000 (Nippon Denshoku Kogyo) à un angle de 60°. Note : Les valeurs peuvent varier en fonction des conditions de mesure.

Source : Kuraray Noritake Dental Inc.
*N'est pas une marque commercialisée par KURARAY CO., LTD.

LA RÉSISTANCE AU CISAILLEMENT
DES DENTS HUMAINES
LA RÉSISTANCE AU CISAILLEMENT<br>DES DENTS HUMAINES
Émail
Dentine

Conditions d'essai : Polissage #1000, application de chaque primer PANAVIA Veneer LC : photopolymérisation pendant 20 secondes, collage d'un éclat SUS (3 mm) avec le système de collage PANAVIA SA Universel. Mesuré après stockage dans l'eau à 37°C pendant 1 jour, Cycle thermique : 4-60°C.

Source : Kuraray Noritake Dental Inc.
*N'est pas une marque commercialisée par KURARAY CO., LTD.

LA RÉSISTANCE AU CISAILLEMENT
DU MATÉRIAU PROTHÉTIQUE
LA RÉSISTANCE AU CISAILLEMENT<br>DU MATÉRIAU PROTHÉTIQUE
37°C 1 jour
TC3000

Conditions de test : Polissage #1000, sablage (Zircone KATANA HT) ou mordançage hydrofluorique (vitrocéramique), application de PANAVIA V5 Tooth Primer pendant 20 sec. Pâte PANAVIA Veneer LC : photopolymérisation pendant 20 secondes, collage de la pointe SUS (5 mm) avec le PANAVIA SA CEMENT Universel. Mesuré après stockage dans l'eau à 37°C pendant 1 jour, cycle thermique : 4-60°C.

Source : Kuraray Noritake Dental Inc.
*N'est pas une marque commercialisée par KURARAY CO., LTD.

TEINTES

PÂTE D'ESSAI PANAVIA V5
Clair
Universel
Blanc
Marron

QUATRE TEINTES
TRÈS ESTHÉTIQUES

PÂTES D'ESSAYAGE ASSORTIES

ÉPAISSEUR MINIMALE
DU FILM

Avec une teinte adaptée aux besoins individuels, on obtient facilement des résultats réalistes.

Les pâtes d'essai PANAVIA V5 sont assorties aux teintes PANAVIA Veneer LC et permettent de simuler l'aspect final.

Grâce à sa fluidité et à sa faible épaisseur de film, le PANAVIA Veneer LC produit une couche de collage fine et uniformément répartie qui contribue à un assemblage facile avec des limites hautement esthétiques.

QUATRE TEINTES TRÈS ESTHÉTIQUES



Avec une teinte adaptée aux besoins individuels, on obtient facilement des résultats réalistes.

PÂTES D'ESSAYAGE ASSORTIES

Les pâtes d'essai PANAVIA V5 sont assorties aux teintes PANAVIA Veneer LC et permettent de simuler l'aspect final.

ÉPAISSEUR MINIMALE DU FILM



Grâce à sa fluidité et à sa faible épaisseur de film, le PANAVIA Veneer LC produit une couche de collage fine et uniformément répartie qui contribue à un assemblage facile avec des limites hautement esthétiques.

  • Internationally highly valued



    Testimonials

  • Afbeelding Dr. Greg Campbell, DDS
  • Dr. Greg Campbell, DDS
    USA

    “Love the versatility of the new PANAVIA Veneer LC cement when it comes to delivering my Veneers and Onlays. I can use the PANAVIA V5 Tooth Primer or my CLEARFIL Universal adhesive and get the proven benefits of the Original-MDP and the “Gold Standard” bonding we have come to expect from Kuraray. Easy to use, easy to clean up and extremely strong bonds. Four shades and try-in pastes give me complete control and ensures clinical success time and time again!
    Thank you, Kuraray Noritake for another great product.”



  •

    Dr. Karyn Halpern, DDS
    USA

    “I am so impressed by the bond of this new cement. It’s not only strong but it was super easy to use, place, and clean up!
    Needless to say, I am a fan!”





  • Afbeelding Dr. Karyn Halpern DDS
  • Afbeelding Dr. Gianmarco O'Brien, DDS, Inc.
  • Dr. Gianmarco O'Brien, DDS, Inc.
    USA

    "This product is what I have come to expect from a company like Kuraray, the leader in adhesive dentistry. Easy to use clinically (excellent handling), very color stable since there is NO POST-BONDING GRAYING effect from tertiary amines (aromatic amine). I have total confidence in the DURABLE bond strength with their products. This is my new go-to veneer adhesive resin cement system!"



Produits

Pour commander, choisissez parmi les options suivantes.

PANAVIA V5  Try-in Paste
PANAVIA V5 Try-in Paste

1.8ml

Universal (A2)
Clear
Brown (A4)
White
Opaque

-
+
PANAVIA™ Veneer LC KITS
PANAVIA™ Veneer LC KITS
-
+
CLEARFIL™ CERAMIC PRIMER PLUS
CLEARFIL™ CERAMIC PRIMER PLUS

4ml

-
+
PANAVIA™ Veneer LC Applicator tip
PANAVIA™ Veneer LC Applicator tip

20 Applicator tips (16g)

-
+
PANAVIA™ Veneer LC PASTE
PANAVIA™ Veneer LC PASTE
-
+
PANAVIA V5  Tooth Primer
PANAVIA V5 Tooth Primer

4ml

-
+

Foire Aux Questions FAQ

Nous avons rassemblé une liste de réponses aux questions les plus pertinentes.

What is “PANAVIA™ Veneer LC”?

“PANAVIA™ Veneer LC” is a light-cure adhesive resin cement system. It consists of the “PANAVIA™ Veneer LC” Paste (a light-cure cement paste), “CLEARFIL™ CERAMIC PRIMER PLUS” (a silane, zirconia & metal primer), K-ETCHANT Syringe (Phosphoric Acid), and “PANAVIA™ V5” Try-in Paste. “CLEARFIL™ Universal Bond Quick” or “PANAVIA™ V5” Tooth Primer can be chosen for tooth treatment.

What are the indications?

Cementation of ceramic and composite inlays, onlays and laminate veneers with less than 2 mm thickness of the following materials: silica-based ceramics (e.g. conventional porcelain, lithium disilicate), hybrid ceramics, composite resin and “KATANA™ Zirconia” STML/UTML/YML (with a thickness of less than 1.2 mm).

How can I treat the prosthetic restoration?

Follow the Instructions for Use of the restorative material. In the absence of specific instructions, we recommend the following procedures and application of the provided “CLEARFIL™ CERAMIC PRIMER PLUS”: if the adherent surface is silica-based ceramic (e.g. conventional porcelain, lithium disilicate), hybrid ceramic or composite resin: Based on the type of restoration, hydrofluoric acid etching or air abrasion treatment may be used:



Acid Etching Treatment (e.g. conventional porcelain, lithium disilicate):
Etch the adherent surface with a hydrofluoric acid solution in accordance with the Instructions for Use of the solution. Rinse the adherent surface with water and dry.



Air Abrasion Treatment (e.g. composite resin):
Roughen the adherent surface by blasting with alumina powder (30-50 μm) using air pressure of 0.1-0.2 MPa (1-2 kgf/cm2, 15-29 psi, 1-2 Bar). The air pressure and powder size should be properly adjusted to suit the material and/or shape of the prosthetic restoration, using caution to prevent chipping. Clean the prosthetic restoration in an ultrasonic cleaning unit for 2 minutes or with “KATANA™ Cleaner” with 10 seconds of rubbing and then rinse with water.

Is it possible to use “CLEARFIL™ Universal Bond Quick” for the surface treatments of veneer restorations?

Although technically possible, we recommend to use “CLEARFIL™ CERAMIC PRIMER PLUS” to get optimal performance for glass ceramics.

Are there additional steps, if I try-in the restoration after it is acid etched or air abraded?

Yes, doing that would contaminate the restoration and, hence, decrease the bond strength. To remove the contamination, use “KATANA™ Cleaner” for 10 seconds with a rubbing motion then rinse with water until the color has been disappeared and dry the restorations to remove contaminants, or apply K-ETCHANT Syringe (Phosphoric Acid) for 5 seconds in case of non-zirconia restorations.

How can I treat the prepared tooth?

There are 2 ways to treat the prepared tooth: with the “PANAVIA™ V5” Tooth Primer or “CLEARFIL™ Universal Bond Quick”.



a) “PANAVIA™ V5” Tooth Primer: Etch the enamel with the K-ETCHANT (phosphoric acid) for 10 seconds, rinse and dry. Apply the Tooth Primer to the entire prepared tooth surface, with an applicator brush and leave it in place for 20 seconds. Thoroughly dry the entire adherent surface sufficiently by blowing mild, oil-free air until all water is evaporated from the primer.



b) “CLEARFIL™ Universal Bond Quick”: Selective etch the enamel with K-ETCHANT syringe (phosphoric acid) for 10 seconds, rinse and dry. Apply BOND with a rubbing motion to the entire preparation with the applicator brush. No waiting time is required. Dry the entire cavity wall sufficiently by blowing mild air for more than 5 seconds until BOND does not move.



When cementing laminate veneers, there is no need to light-cure BOND prior to seating the laminate veneers. It should be cured after seating the laminate veneers with the “PANAVIA™ Veneer LC” cement. When cementing inlays or onlays, BOND should be light-cured before seating the restoration. Please confirm the curing time by referencing the Instructions for Use.

What are the differences of using the “PANAVIA™ V5” Tooth Primer or “CLEARFIL™ Universal Bond Quick” when treating the prepared tooth?

In terms of bond strength, both are similar and provide excellent results. Nevertheless, the “PANAVIA™ V5” Tooth Primer will provide a “touch-cure” mechanism that will seal the bonding interface before the final light curing. Additionally, while the application time is shorter with “CLEARFIL™ Universal Bond Quick” (no waiting time versus 20 s), there is a longer working time under ambient light with the “PANAVIA™ V5” Tooth Primer (200 seconds vs 160 seconds with the BOND).

What are the advantages of “PANAVIA™ Veneer LC” over competing products?

PANAVIA™ Veneer LC” offers the ideal paste consistency, not being too high or too low as several competitive products. This will facilitate the dispensing of the paste onto the restoration and smooth seating of such restoration. A low film thickness and long working time are also advantages over competitive products. In addition, in case of using it with the “PANAVIA™ V5” Tooth Primer, the “touch-cure” mechanism will provide bonding interface sealing.

How should the excess cement be removed?

One of the following two techniques can be used:



Tack-Cure Clean-Up Technique: Light-cure any excess cement in several spots for 1 second at a distance of 10-15 mm. Hold the prosthetic restoration in position, remove the tack-cured excess cement using a dental instrument.



Wet Clean-Up Technique: Any excess cement remaining at the margins can be removed with a small brush, foam pellet, dental floss or dental explorer.



Regardless of the technique used, final curing will be required as the next step. Please refer to the Instructions for Use.

Should the margins be covered with a protective gel during final curing?

The use of a protective gel, like “PANAVIA™ F 2.0” OXYGUARD II, is beneficial to prevent the forming of an oxygen inhibited layer thus helping to create smooth margins.

How many shades of “PANAVIA™ Veneer LC” Paste are available?

There are 4 shades of “PANAVIA™ Veneer LC” Paste available: Clear, Universal (A2); White and Brown (A4). Each shade has a corresponding glycerin based, water soluble Try-In Paste.

How is the “PANAVIA™ V5” Try-in Paste used?

The “PANAVIA™ V5” Try-In Paste shades match the “PANAVIA™ Veneer LC” shades (in light-cured state) and allow for a simulation of the final appearance of the restoration. The “PANAVIA™ V5” Try-In Paste cannot be (light) cured, and can be removed easily with water.

Is “PANAVIA™ Veneer LC” color stable?

Yes, “PANAVIA™ Veneer LC” Paste is color stable.

What makes “PANAVIA™ Veneer LC” color stable?

Since “PANAVIA™ Veneer LC” Paste is only light curing, no amine reducing agent based redox curing system is included avoiding unwanted discoloration over time.

What is the filler load and particle size?

The total amount of inorganic filler is approximately, 66 wt%, 47 vol%. The particle size of inorganic fillers range from 0.05 μm to 8 μm.

What is the main filler form of “PANAVIA™ Veneer LC”?

“PANAVIA™ Veneer LC” Paste has spherical silica and nano cluster fillers. This provides a paste which is not runny, has excellent handling, and resistance to sagging.

What is the film thickness of “PANAVIA™ Veneer LC”?

“PANAVIA™ Veneer LC” Paste film thickness is around 8 μm.

Can “PANAVIA™ Veneer LC” be used to cement zirconia veneers and inlays/onlays?

Zirconia should not be used because it may not have sufficient translucency. However, zirconia of our products with high translucency (“KATANA™ Zirconia” STML/UTML, “KATANA™ Zirconia” Block STML) can be used with a thickness of less than 1.2 mm.

How is the bond strength of “PANAVIA™ Veneer LC”?

“PANAVIA™ Veneer LC” has excellent bond strength to several substrates (e.g. enamel, dentin, lithium disilicate, “KATANA™ Zirconia”, feldspar ceramic) at a similar level to the acclaimed “PANAVIA™ V5”.

How many treatments can be cemented with a single syringe?

Approximately 20-30 teeth for laminate veneer.

Do “CLEARFIL MAJESTY™ ES Flow” and “PANAVIA™ Veneer LC” use the same application tips?

No, the “PANAVIA™ Veneer LC” Paste tips are specially designed for an easy extrusion and application and their gauge, which is 16 (1.65 mm in diameter) and differ from the “CLEARFIL MAJESTY™ ES Flow” ones.

How do I store “PANAVIA™ Veneer LC”?

The product should be stored in the refrigerator. All components stored in the refrigerator should be brought to room temperature for 15 minutes before use in order to restore its normal viscosity and curing properties.

What is the shelf-life of the “PANAVIA™ Veneer LC” components?

The shelf-life of “PANAVIA™ Veneer LC” components is 36 months from date of manufacture with refrigeration.
