Clinical case - Frame structure without backing lingual support

By Daniele Rondoni, RDT



Considering different criteria to select the ideal zirconia and frame design to meet the level of esthetics requested.



Step 1
Final Preparations.

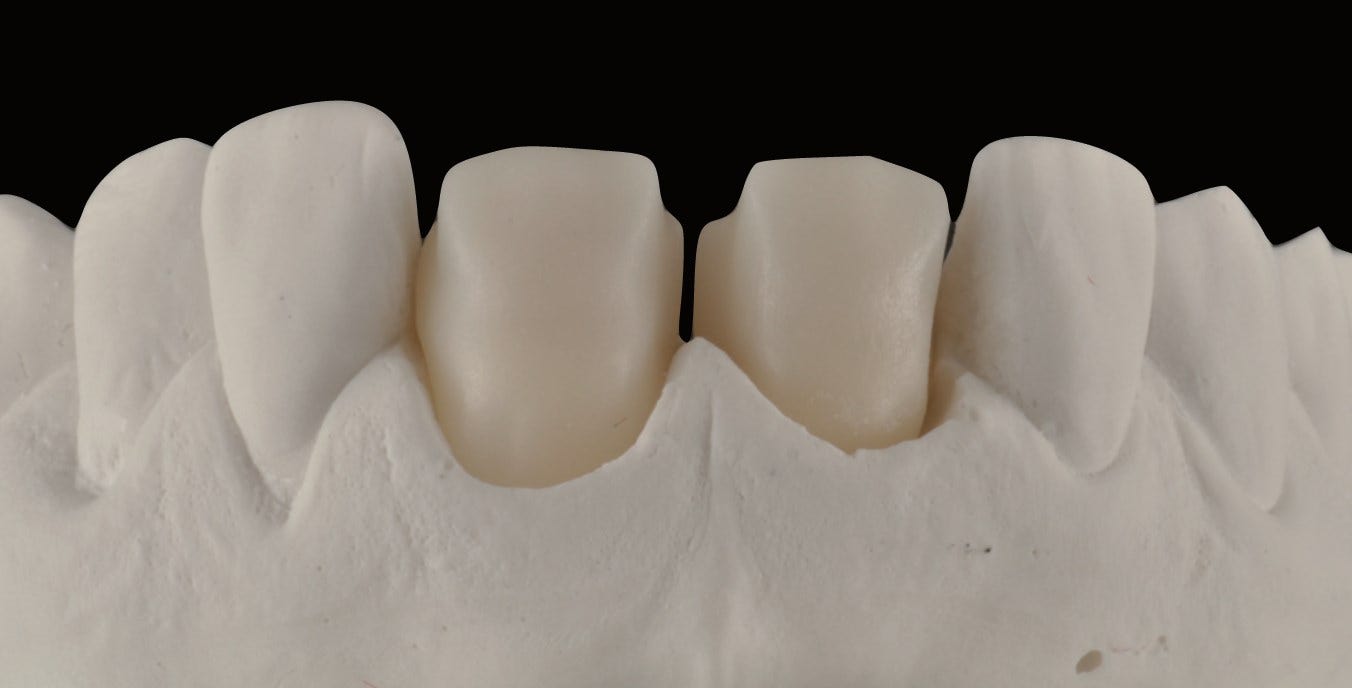

Step 2
Zirconia Frame (KATANA Zirconia STML A2) cut-back designed to reproduce translucent incisal area.

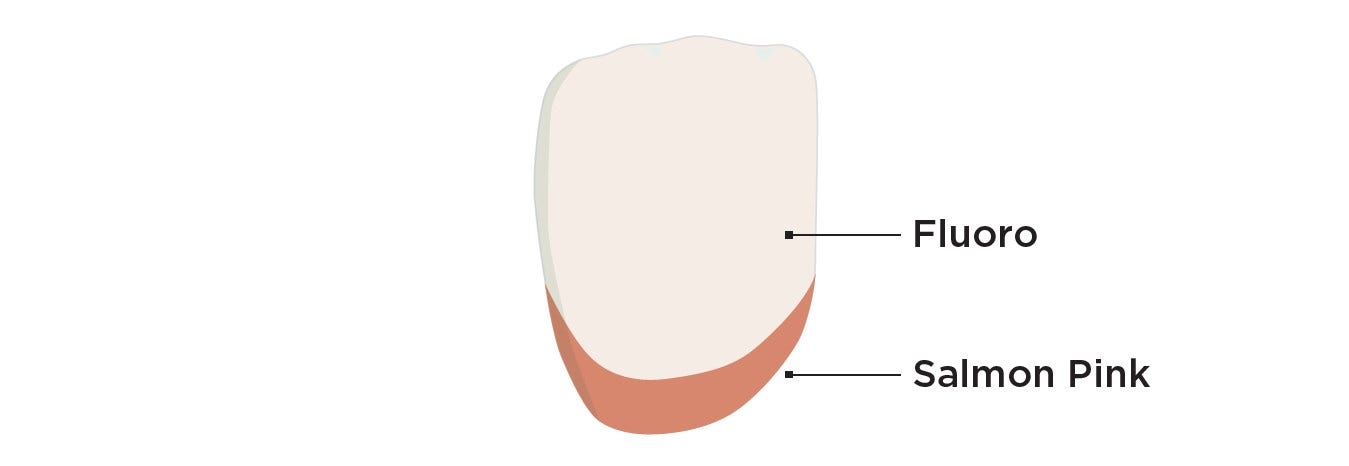

Step 3
Application of 1st Internal Stain and firing.

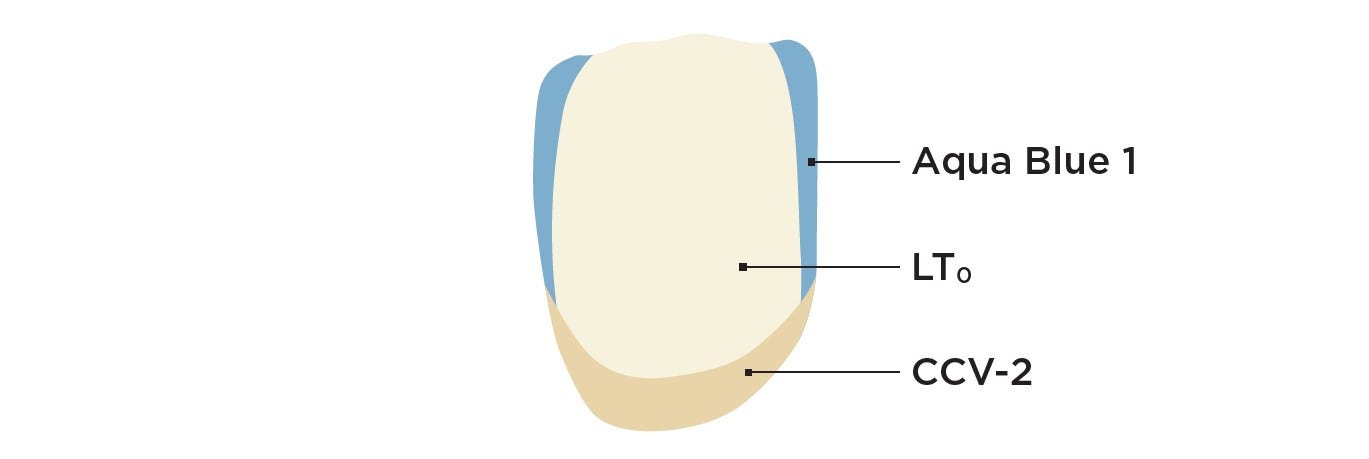

Step 4
Application of 1st Luster, Clear Cervical and firing.

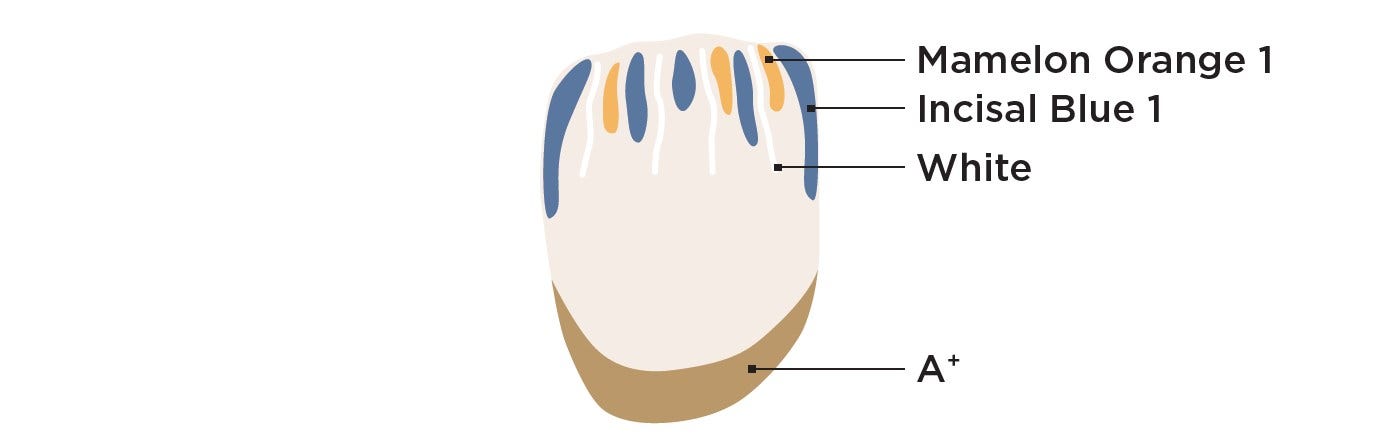

Step 5
Application of 2nd Internal Stain and firing.



Step 6
Application of 2nd Luster, and Opacious Body.



Step 7
Completion of firing.

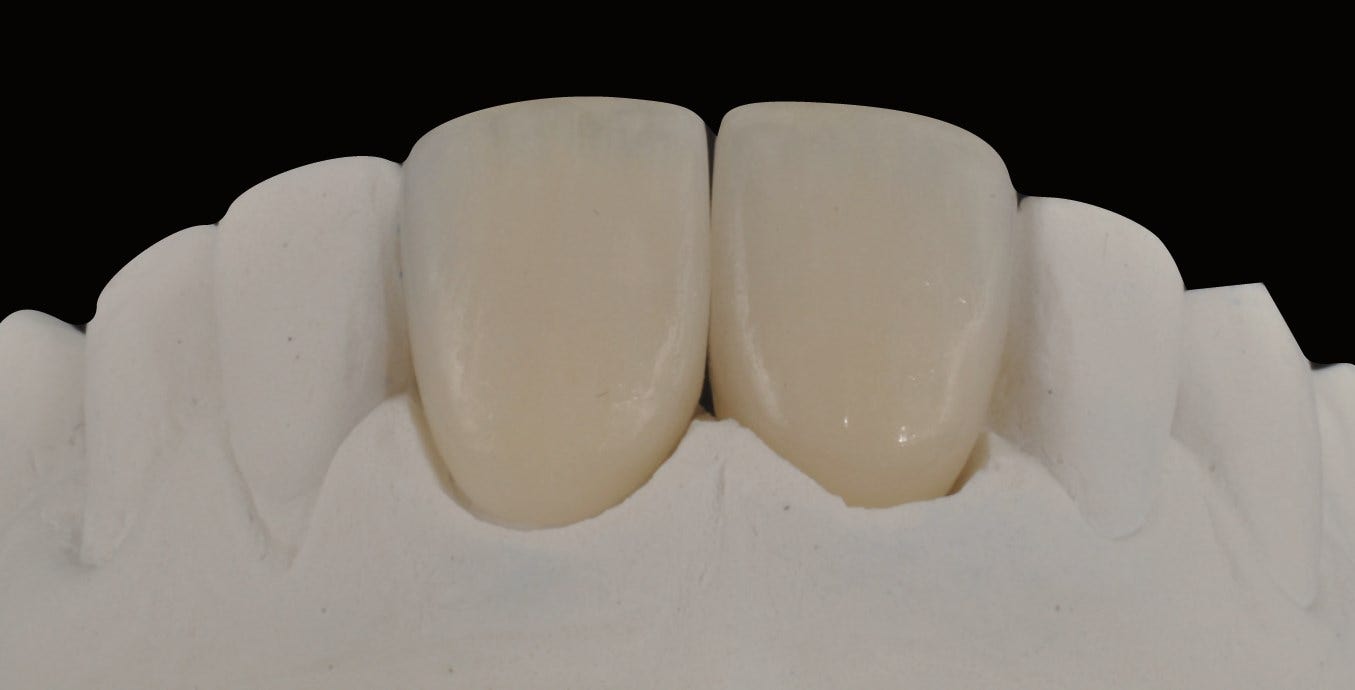

Step 8
Completion of morphological correction.

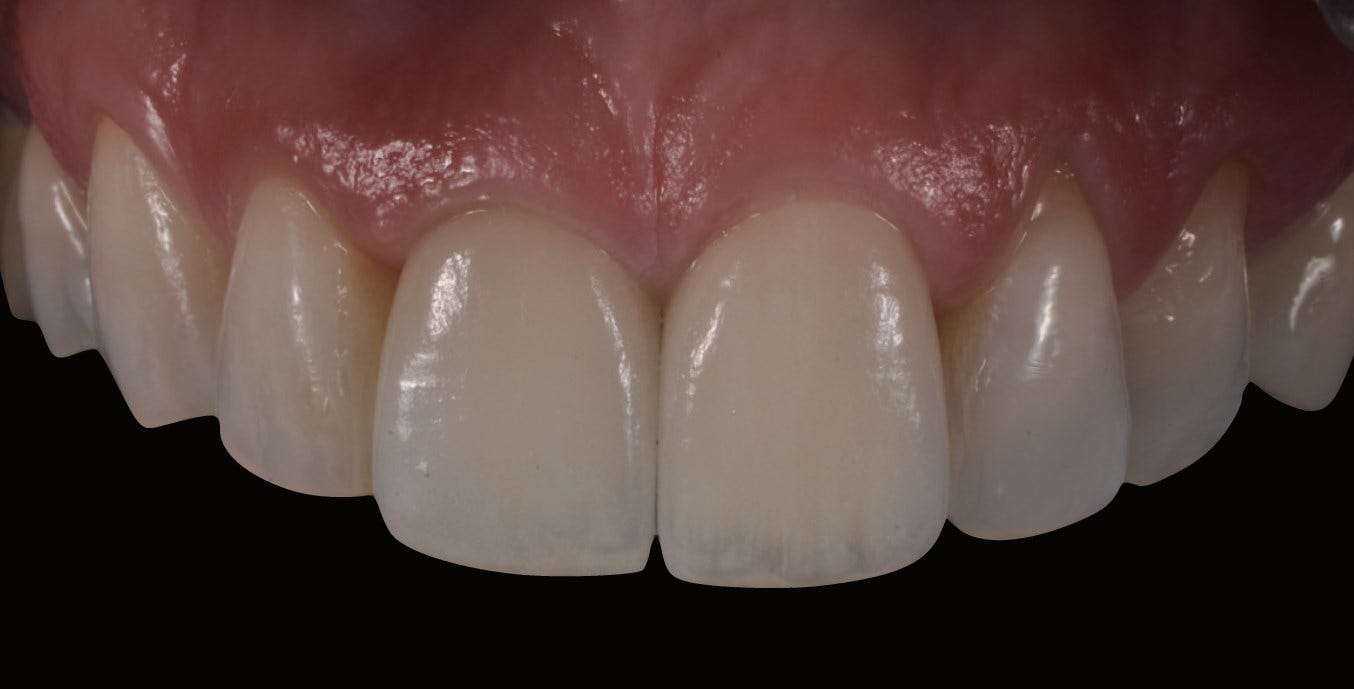

Step 9
Post-operative view.

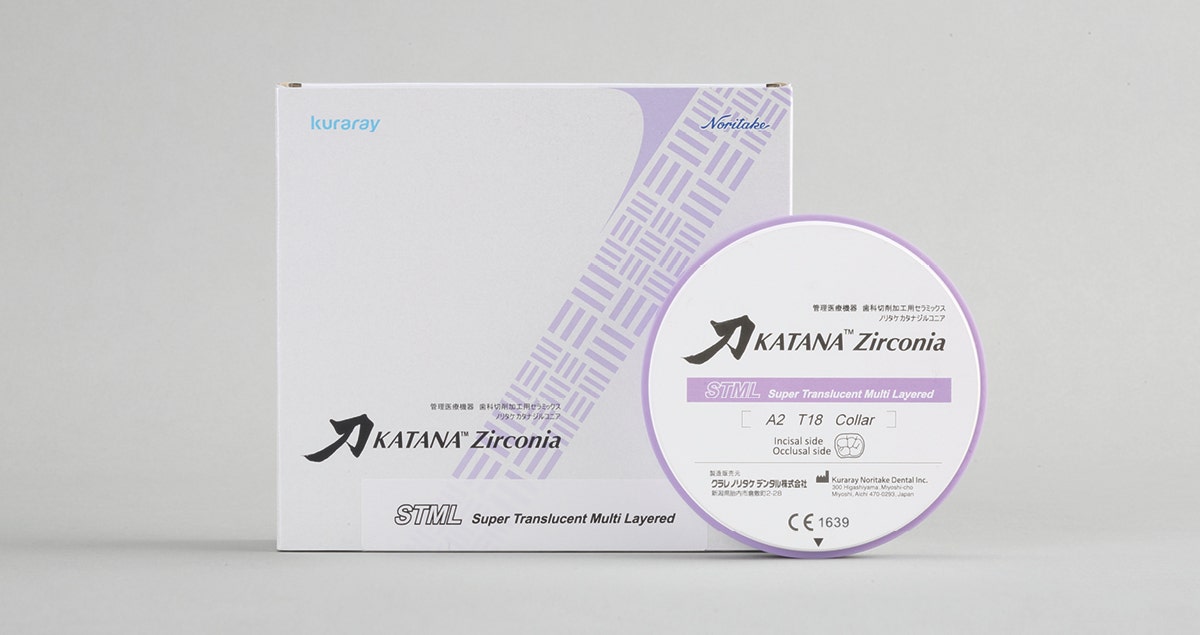

KATANA Zirconia STML
