KATANA™ CLEANER (nuevo diseño)
KATANA CLEANER
Limpiador intra y extraoral de restauraciones

Para todos los procedimientos restauradores. Uso intra y extraoral.
KATANA™ Cleaner posee un potente efecto limpiador gracias a las propiedades activas de superficie de la sal MDP. En comparación con otras soluciones limpiadoras, KATANA™ Cleaner tiene un valor pH de 4,5,¹ lo que permite su uso intra y extraoral. Para recuperar de un modo sencillo la fuerza de adhesión original de sus cementaciones.
¹ Método de medición: JIS Z 8802:2011


Procedimiento sencillo y rápido
Al contrario que otras soluciones limpiadoras que requieren un mayor tiempo de frotado,
KATANA™ Cleaner solo necesita 10 segundos.



Cómo funciona

Alto efecto de limpieza
Después de la prueba intraoral de las restauraciones, la saliva y la sangre reducen la fuerza de la adhesión. La alta eficacia de KATANA™ Cleaner en la limpieza permite recuperar la fuerza original de la adhesión. ¡Ahora usted está verdaderamente preparado para cementar la restauración!

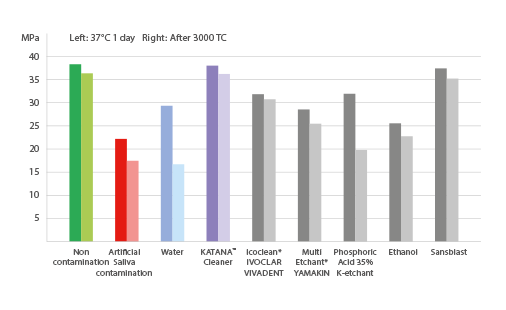

Resistencia de adhesión al cizallamiento en el KATANA™ Zirconia HT después de la limpieza.

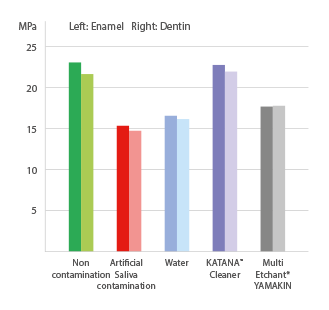

Resistencia de adhesión al cizallamiento en el esmalte y la dentina bovinos después de la limpieza.
Cemento: PANAVIA™ V5
Datos por cortesía del Dr. Shoji Kato, 38.º Encuentro Anual de la Sociedad Japonesa de Odontología Adhesiva Efecto de diferentes procedimientos de limpieza de superficies sobre el rendimiento del adhesivo
*No es una marca comercial de Kuraray Noritake Dental Inc.

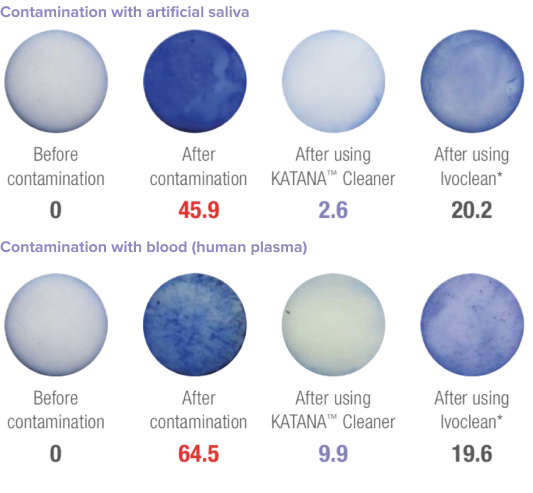

Efecto de limpieza sobre el óxido de circonio
Contaminación con saliva artificial
Evaluación de la contaminación en base al grado de tinción con un colorante que se une a las proteínas presentes en la saliva.
Contaminación con sangre (plasma humano)
El grado de contaminación se evalúa mediante el grado de tinción con el agente que se une a las proteínas (albúmina, fibrinógeno, inmunoglobulina) presentes en el plasma humano.
Fuente de los datos: Kuraray Noritake Dental Inc.

Valor pH de 4,51


Amplia gama de indicaciones
KATANA™ Cleaner se puede usar tanto de manera extraoral como intraoral, por lo que es la solución de limpieza universal para la estructura dental y las prótesis.
Intraoral:
- Cavidad
- Pilar
- Conducto radicular
Prótesis:
- Cerámica (óxido de circonio, disilicato de litio, porcelana dental)
- Materiales a base de resina (coronas CAD/CAM, resina compuesta)
- Metales (aleaciones de metales preciosos/no preciosos)
- Pernos (pernos de fibra de vidrio, pernos de metal)

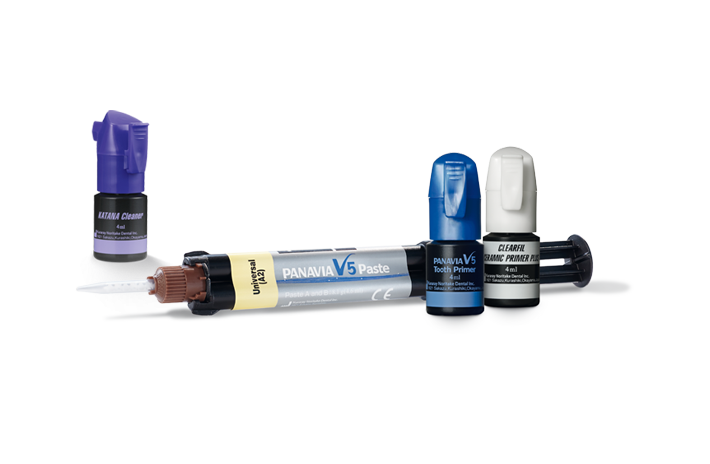

Los compañeros de equipo perfectos
PANAVIA™ V5 es el cemento más potente que hemos desarrollado nunca. Y con sus cinco colores, también el más estético. Por eso permite una odontología totalmente nueva con una cementación en la que usted puede confiar.
PANAVIA™ SA Cement Universal contiene el exclusivo monómero LCSi que se adhiere a prácticamente cualquier material, incluida la vitrocerámica, sin necesidad de usar un primer adicional. El monómero MDP original permite la reacción química con el óxido de circonio, la dentina y el esmalte.

Comparación de la limpieza
KATANA™ Cleaner | IVOCLEAN**(IVOCLAR VIVADENT) | ZIRCLEAN**(BISCO) | |
---|---|---|---|
Uso intraoral sobre la superficie del diente | Sí | No | No |
Uso intraoral sobre pilares de implantes | Sí | No | No |
Uso extraoral | Sí | Sí | Sí |
Ingrediente activo | MDP Salt (surfactante) | Hidróxido de sodio | Hidróxido de potasio |
pH | 4,5 | 13-13,5 | 13 |
Tiempos de aplicación | 10 segundos | 20 segundos | 20 segundos |
Manipulación | Sin agitar | Agitar antes de usar | Sin agitar |
*Conforme a las instrucciones de uso y la documentación oficial
** No es una marca comercial de Kuraray Noritake Dental Inc.
Productos
Para hacer un pedido, elija entre las siguientes opciones.

4ml

Recursos útiles
Preguntas más frecuentes
Hemos elaborado una lista de respuestas a las preguntas más pertinentes.
What is KATANA™ Cleaner?
It is a universal cleaning solution suitable for all adhesive procedures.
Usage of KATANA™ Cleaner
For the purpose of cleaning the tooth structure and restorations, KATANA™ Cleaner is indicated for the following uses:
1. Cleaning of contaminated glass ceramic, zirconia, resin and metal restorations and fiber posts.
2. Cleaning of (contaminated) prepared tooth structure (cavity, root canal and tooth abutment), and implant abutment.
Why is it possible to use KATANA™ Cleaner intra-orally?
Due to its mild pH value of 4.5, KATANA™ Cleaner can be used not only extra-orally but also intra-orally, making it an all-purpose universal cleaner for both - tooth structure and prosthetics.
Reasons for adopting the KATANA™ Brand
The “KATANA” brand has gained a worldwide reputation for offering reliable, durable and aesthetic materials for CAD/CAM restorations. Our KATANA™ products have been developed to complement each other and therefore deliver even more durable and aesthetic restoration results.
Contents
4 ml in a flip-top bottle.
How to use prior to cementation?
1. Apply and rub KATANA™ Cleaner for at least 10 seconds.
2. Rinse and dry.
3. Cement the restoration according to the manufacturer instructions.
How to use prior to self-etch bonding?
1. Apply and rub KATANA™ Cleaner for at least 10 seconds.
2. Rinse and dry.
3. Proceed with bonding procedure.
What is the cleaning mechanism (action mechanism) of KATANA™ Cleaner?
KATANA™ Cleaner contains MDP Salt formed from the phosphate ester monomer, MDP and Triethanolamine. When applied to the tooth or prosthetic restoration surface, the hydrophobic group of MDP salt adheres to contamination, MDP salt weakens the surface tension of contamination and breaks it up. MDP salt surrounds contamination, floats from the surface of tooth and prosthetic restoration. Further break down occurs while in suspension and all that’s left to do is to rinse with water and dry.
What is the chemical difference between strong alkaline and strong acids to remove contamination?
KATANA™ Cleaner removes proteins and other contaminants by the surface-active effect of MDP Salt.
- Due to the alkalinity, proteins and other contaminants are decomposed and removed, but there is a high risk of invasiveness to the human body and it is limited to use extra-orally.
- The strong acid decomposes and removes contaminants such as proteins, but it causes decalcification of the tooth surface, which may reduce the bond strength of the adhesive material used.
Does the dye remain on the surface to be cleaned?
No. KATANA™ Cleaner is a detergent and thus highly washable. That’s why it is expected that there will be no dye remaining.
Is rubbing required?
Yes. Surfactant chemically lifts contaminants, but rubbing is necessary to remove them physically from the surface.
Is it possible to rub for less than 10 seconds?
No. By rubbing for 10 seconds, sufficient decontamination effect is achieved.
Is it a substitute for Ivoclean? What is the difference? Is there a difference between two?
Yes and it even has an extra benefit - KATANA™ Cleaner can be used intra-orally too. Ivoclean on the other hand, can be used only extra-orally due to its strong alkalinity.
Can it be used with cements and bondings from other manufacturers?
Yes. Please follow the Instructions For Use provided by the manufacturer of the cement or bonding agent.
On what prosthetics can KATANA™ Cleaner be used?
It can be used for a wide range of dental restorations such as glass ceramic, zirconia, resin and metal restorations and fiber post.
Does KATANA™ Cleaner have etching effect on the prosthetic surface to give mechanical retention?
KATANA™ Cleaner does not have etching effect on prosthetics. Depending on the type of prosthetics material, it is necessary to make use of the recommended surface roughening treatment (f.e. hydrofluoric acid or sandblasting).
Does KATANA™ Cleaner work as a silane?
No. Use a silane such as CLEARFIL™ CERAMIC PRIMER PLUS additionally, if necessary.
Storage conditions
Store at 2-25°C. Keep away from direct sunlight.
Expiration date
36 months from the date of manufacture.
Time to use product after dispensing
Use within 10 minutes after dispensing in a mixing dish.
Presence of bubbles in the liquid during dispensing
Bubbles may appear in the dispensed liquid due to the surface-active effect of the MDP Salt, which will not affect the product´s desired cleaning performance effect. Do not shake the bottle before use. When the bottle is shaken, bubbles may form and liquid may ooze out from the nozzle.
