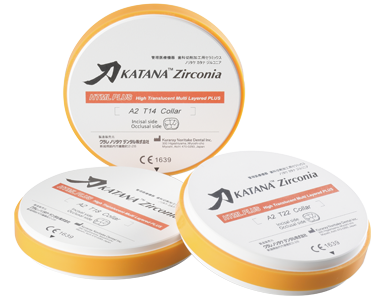

IL DISCO KATANA™ Zirconia CON LA RESISTENZA PIÙ ELEVATA

KATANA™ Zirconia HTML PLUS si caratterizza per l’utilizzo di materie prime uniche che permettono sinterizzazione veloce e miglior traslucenza senza compromettere la resistenza. Il risultato è una struttura o un ponte monolitico affidabili con una bellissima forma e un colore in armonia con i denti naturali adiancenti.

PERCHE' SCEGLIERE KATANA™ Zirconia
HTML PLUS?

LA RESISTENZA PIÙ ELEVATA*

Adatto per una molteplicità di casi entro un minimo spessore. Potete scegliere di realizzare un restauro monolitico, cut-back o struttura, seguendo la relativa procedura.

*La più elevata resistenza della linea KATANA™ Zirconia (1150 MPa).

ESTETICA E SEMPLICITÀ D’USO

La tecnologia multistrato elimina le linee di transizione visibili e ottimizza l‘equilibrio degli strati per un colore naturale ottimale, permettendo una procedura semplificata, che fa risparmiare tempo.

SINTERIZZAZIONE VELOCE

Rilavorazioni o casi urgenti? Nessun problema. La sinterizzazione veloce (54 minuti) offre nuove possibilità, permettendo di completare facilmente il lavoro in un giorno.

QUALITÀ ECCELLENTE

La precisione di adattamento dei restauri dopo il processo di sinterizzazione riduce il rischio di rifacimento. Nessun spreco di tempo e materiali.


Per gentile concessione di Odt. Daniele Rondoni e Odt. Roberto Rossi

Image - desktop

(..%) spessore di ciascuno strato del disco, espresso in termini percentuali

Condizioni di misurazione:
Test eseguiti sul materiale base (colore bianco).
1 Secondo ISO 6872: 2015, Dimensioni Campione: 3 x 4 x 40 mm.
2 Trasmittanza luminosa, illuminante: D65, Spessore del campione: 1,0 mm.

Fonte: Kuraray Noritake Dental Inc. I valori numerici variano in funzione delle condizioni.

Image - mobile

(..%) spessore di ciascuno strato del disco, espresso in termini percentuali

Condizioni di misurazione:
Test eseguiti sul materiale base (colore bianco).
1 Secondo ISO 6872: 2015, Dimensioni Campione: 3 x 4 x 40 mm.
2 Trasmittanza luminosa, illuminante: D65, Spessore del campione: 1,0 mm.

Fonte: Kuraray Noritake Dental Inc. I valori numerici variano in funzione delle condizioni.

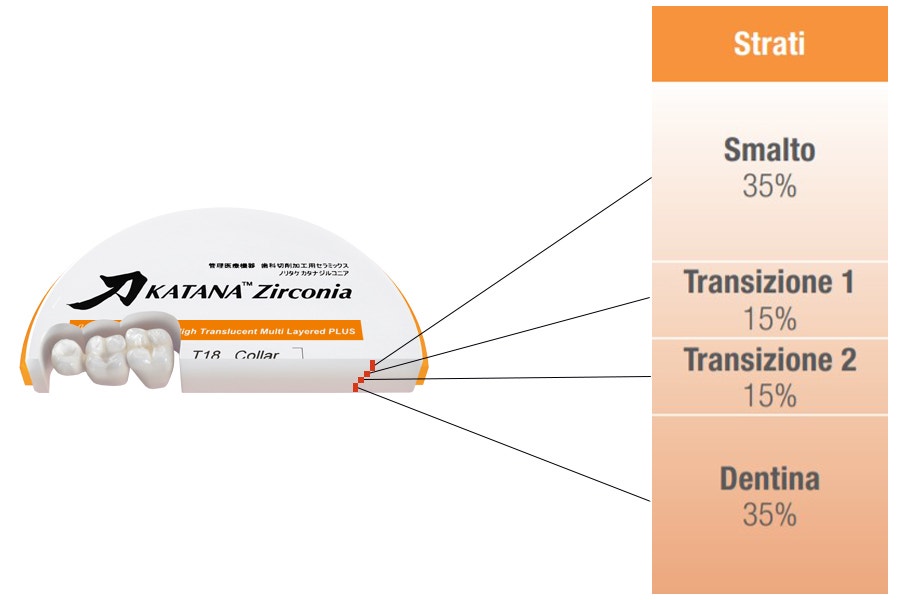

INNOVATIVA TECNOLOGIA MULTISTRATO

KATANA™ Zirconia HTML PLUS è stata sviluppata in base al concetto di “aspetto naturale” (Lifelike), che permette di riprodurre in maniera accurata e non artificiosa il colore e la traslucenza dei denti naturali.

Strato Smalto

Per garantire una traslucenza elevata che si armonizzi perfettamente con i denti anteriori.

Strato Dentina 1

Per garantire traslucenza e colore senza soluzione di continuità rispetto allo Strato Smalto.

Strati Dentina 2, 3

Per garantire profondità e vividezza cromatica riducendo lo sbiancamento.

COSA RENDE DIFFERENTE KATANA™ Zirconia
HTML PLUS?

Kuraray Noritake Dental Inc. si distingue dalla concorrenza per la sua esclusiva produzione in-house di polveri di zirconia. Il controllo di ogni dettaglio del processo produttivo permette di ottenere le superbe caratteristiche dei nostro disco:

  • Elevata resistenza*
  • Estetica e semplicità d'uso
  • Sinterizzazione veloce
  • Qualità eccellente


*La resistenza più elevata della gamma KATANA™ Zirconia


SINTERIZZAZIONE VELOCE PER PONTI FINO A 3 ELEMENTI

LA QUALITÀ COMBINATA CON LA VELOCITÀ

L‘eccezionale qualità combinata con la velocità è una caratteristica assolutamente unica di KATANA™ Zirconia rispetto a tutti i prodotti della concorrenza. La tecnica unica di pressatura e pre-sinterizzazione è la chiave per permettere ai nostri clienti di realizzare ponti fino a 3 elementi senza alcun compromesso in termini di estetica o di proprietà meccaniche, utilizzando il processo di sinterizzazione veloce di 54 minuti*.

*Il materiale viene rimosso dal forno a 800°C/1472°F. È necessario un forno con un programma di cottura configurabile.

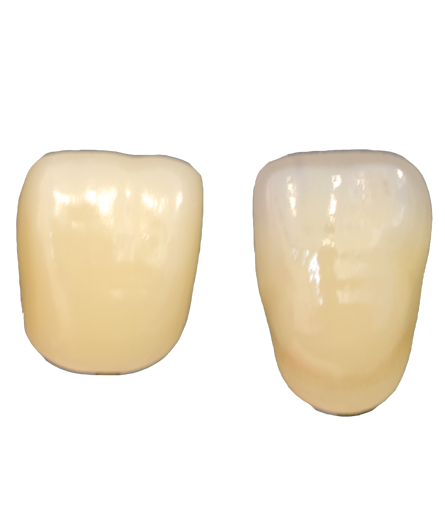

CONFRONTO

KATANA™ Zirconia HTML PLUS A3 dopo 54 minuti di sinterizzazione (sinistra) vs. Shade Guide (Scala colori) A3 (a destra).

Fonte della foto: Kuraray Noritake Dental Inc.

IN ARMONIA CON LA CAVITÀ ORALE

KATANA™ Zirconia HTML PLUS è stato sviluppato in-house e questo ci ha permesso di migliorare la traslucenza e ottimizzare il colore per una migliore armonizzazione con la cavità orale.

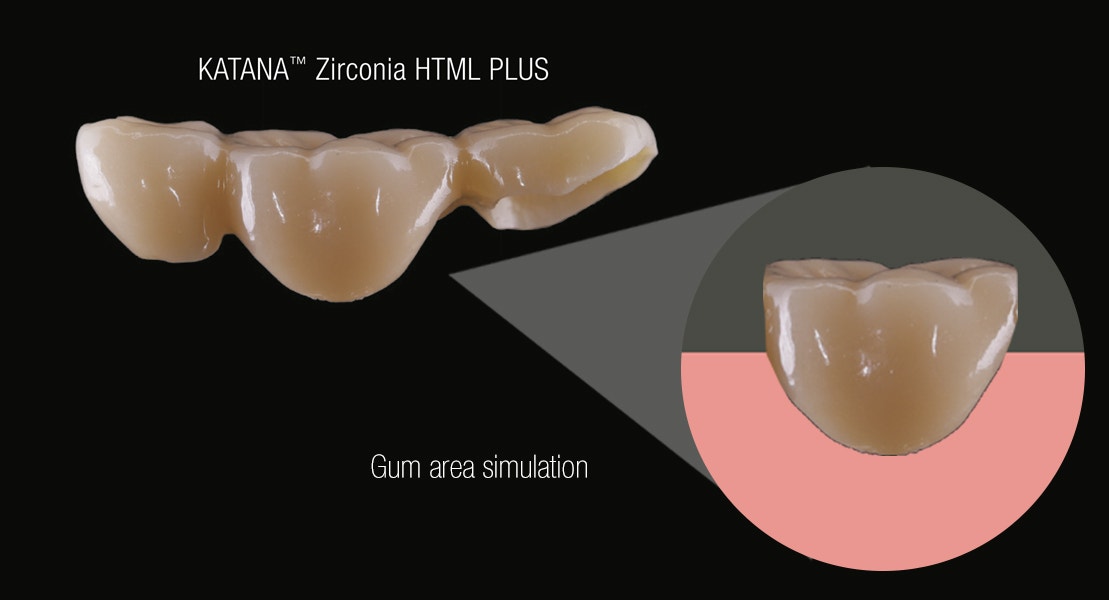

ESEMPIO DEL COLORE

In questo esempio, il colore di KATANA™ Zirconia HTML PLUS è più luminoso,
più profondo e più vivido anche nella zona gengivale.


Fonte della foto: Kuraray Noritake Dental Inc.

PROGRAMMA DI SINTERIZZAZIONE UNIFICATO

KATANA™ Zirconia HTML PLUS, YML, STML e UTML
possono essere tutti sinterizzati utilizzando lo stesso programma.


Le raccomandazioni di sinterizzazione qui sopra sono solo una linea guida, potrebbero essere necessari degli aggiustamenti in base al tipo di forno.
Se il forno utilizzato non prevede il programma di sinterizzazione da 54 o da 90 minuti, questi due programmi non potranno essere utilizzati.

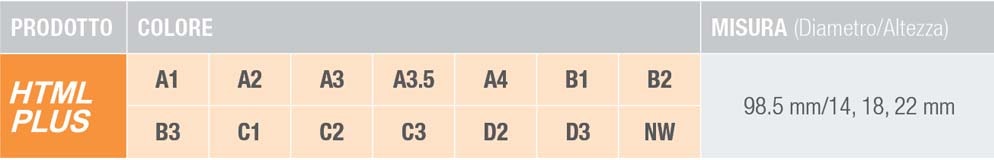

SCELTA COLORE / ALTEZZA DISCO

Selezionare il colore e lo spessore del disco in modo corretto per ottenere
una gradazione appropriata tra la lunghezza della corona, lo smalto e la dentina.

LINEE GUIDA

Consulta il manuale per un corretto uso di KATANA Zirconia

SCARICA IL MANUALE

Prodotti

Per ordinare, scegliere tra le seguenti opzioni.

KATANA™ Zirconia HTML PLUS 14MM
KATANA™ Zirconia HTML PLUS 14MM
-
+
KATANA™ Zirconia HTML PLUS 18MM
KATANA™ Zirconia HTML PLUS 18MM
-
+
KATANA™ Zirconia HTML PLUS 22MM
KATANA™ Zirconia HTML PLUS 22MM
-
+

Domande frequenti

Ecco un elenco di risposte alle domande più frequenti.

What has been improved compared to KATANA™ Zirconia HTML?

Compared to KATANA™ Zirconia HTML, KATANA™ Zirconia HTML PLUS has higher translucency, and can optimize colors to harmonize better with the oral cavity. KATANA™ Zirconia HTML PLUS is compatible with the 54-minute sintering program, and can be sintered according to same sintering schedule as UTML, STML and YML.



Photo source: Kuraray Noritake Dental Inc.

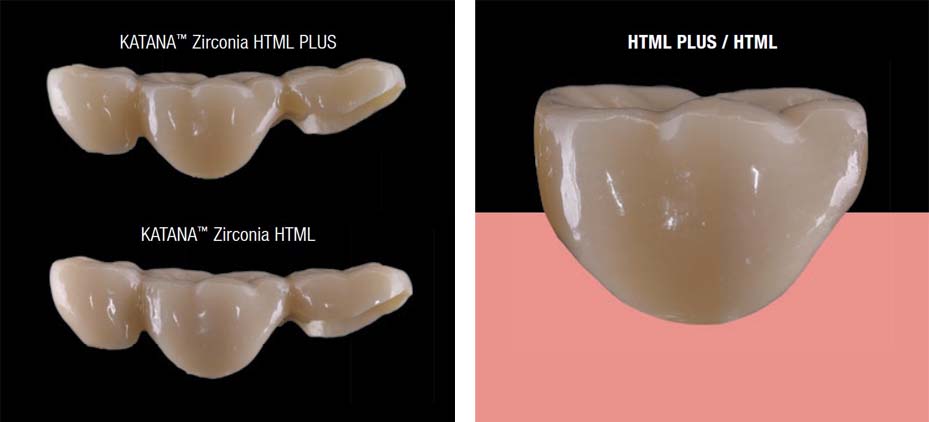

Comparison of color:

KATANA™ Zirconia HTML PLUS A3.5 vs. previous HTML A3.5.

Color of HTML PLUS is brighter, deeper and more vivid even on the gum area.

How has the translucency of KATANA™ Zirconia HTML PLUS been improved compared to that of HTML?

KATANA™ Zirconia HTML PLUS is made from a completely new raw material developed in-house, allowing us to improve its translucency.

What is the mechanical property of KATANA™ Zirconia HTML PLUS?

KATANA™ Zirconia HTML PLUS has the same mechanical strength as HTML, while its translucency has been improved compared to HTML. Please refer to the inserted chart below.

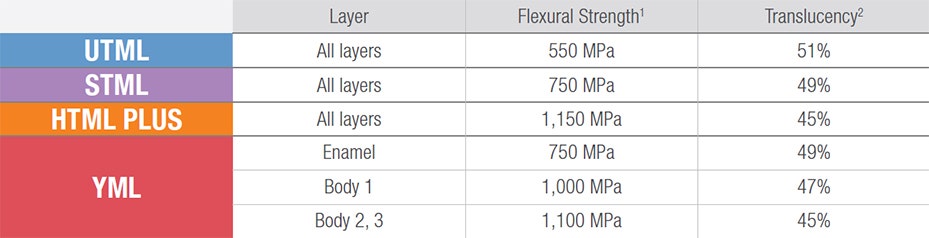

Comparison of physical properties of KATANA™ Zirconia series





*Measurement condition: Evaluated by base material (white color)

1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40mm.

2 All light transmittance, illuminant: D65, Thickness of sample: 1.0mm.

Data source: Kuraray Noritake Dental Inc. The numerical value varies according to existing conditions.

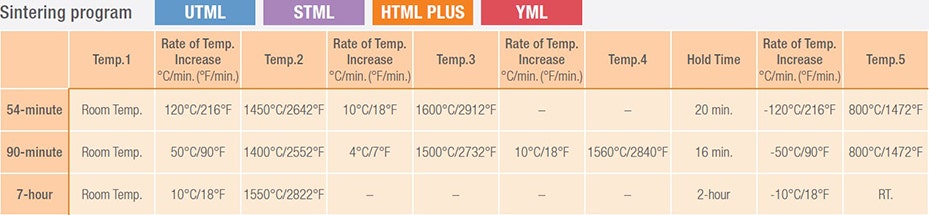

What is the sintering schedule of KATANA™ Zirconia HTML PLUS? Can HTML PLUS be sintered according to the conventional sintering schedule?

KATANA™ Zirconia HTML PLUS, YML, UTML, and STML can be sintered using 54-minute, 90-minute, or standard sintering schedule. UTML and STML can be sintered according to either the new or conventional sintering schedule, but HTML PLUS cannot be sintered according to the conventional HTML sintering schedule.





The above sintering recommendation is only a guideline; some adjustments may be required depending on each individual furnace.

In case of 54, 90-minute sintering, if it cannot be set according to the schedule, it cannot be sintered.

Why has the 90-minute sintering program been changed?

HTML PLUS and HTML are made from different raw materials. The sintering schedule has been adapted to sinter the raw materials of HTML PLUS appropriately.

What would be the result if the KATANA™ Zirconia HTML PLUS is sintered using the conventional sintering schedule?

This is not recommended as you will not be able to achieve your desired level of translucency or mechanical strength.

Why is the translucency measurement condition of KATANA™ Zirconia HTML PLUS different from conventional ones.

The measurement conditions differ depending on the manufacturer. Some manufacturers do not disclose this information. We adopt the All Light Transmittance Testing Method (Illuminant: D65, Thickness of sample: 1.0mm) of Tosoh, ltd., which other major manufacturers also adopt.

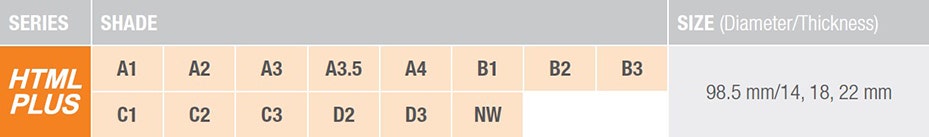

In what shades, disc size (thickness/diameter) is KATANA™ Zirconia HTML PLUS available?

KATANA™ Zirconia HTML PLUS is available in a selection of 14 shades. Please refer to the following table overview for more information about shade and disc thickness.



Shade / Thickness selection



Is it possible to speed sinter a KATANA™ Zirconia HTML PLUS long span bridge?

No, this is not possible. 54 or 90-minute sintering is only possible for up to a three-unit bridge restoration.

Which finishing methods are recommended for KATANA™ Zirconia HTML PLUS?

KATANA™ Zirconia HTML PLUS can be finished by glazing, staining or porcelain application.



COMPATIBLE MATERIALS



CERABIEN™ ZR

Glaze and Stain

- FC Paste Stain

- External & Internal Stain

- FL Glaze, VC Glaze

Layering porcelain

- Luster, etc.



CZR PRESS LF

Stain and Glaze

- LF External & Internal Stain

Layering porcelain

- LF Luster, etc.

Is it possible to finish KATANA™ Zirconia HTML PLUS restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with PEARL SURFACE™ Z (polishing paste).



Please note that the shade of KATANA™ Zirconia HTML PLUS should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

How have the colors KATANA™ Zirconia HTML PLUS been improved compared to HTML?

KATANA™ Zirconia PLUS has brighter, deeper and more vivid colors allowing it to harmonize better with the oral cavity, as well as, the gum color. The translucency has also been improved made possible by our newly developed inhouse raw materials.

Is there any difference in the recommended frame design (minimum thickness, connector size) between KATANA™ Zirconia HTML PLUS and HTML?

Recommended frame design and points to be kept in mind for KATANA™ Zirconia HTML PLUS are the same as those of HTML. Only the sintering schedule is different. Please use the new sintering schedule for KATANA™ Zirconia HTML PLUS.

Is it possible to wet mill KATANA™ Zirconia?

It is generally not recommended to wet-mill this product, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots to appear on the restoration during the sintering process. Causes for this are, for example, oily fingers, excessive purging with high air pressure, residuals of silicon point substance that were applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that were created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Are the sintering schedules for KATANA™ Zirconia the same as other manufacturers’ zirconia products?

The sintering parameters differ depending on manufacturers. KATANA™ Zirconia UTML, STML, YML and HTML PLUS (excluding HT and LT) can be sintered according to same sintering schedule.



The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Please refer to the sintering schedule when sintering restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace, regardless of the manufacturer, is capable of setting the KATANA™ Zirconia sintering program, on condition that its technical specifications can be used. If the KATANA™ Zirconia sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multi-layer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration.

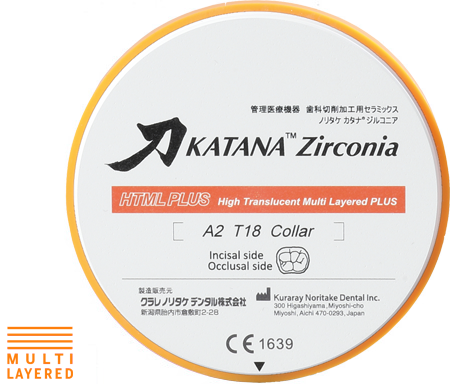

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which the “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).

Is the shade pre-set for staining, just for polishing?

The shade of KATANA™ Zirconia multi-layered series should be pre-set for glazing.

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials: By using materials that Kuraray Noritake Dental Inc. has developed by themselves specifically for KATANA™ Zirconia, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.
