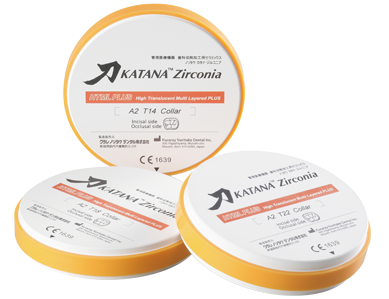

LA VERSION LA PLUS RESISTANTE DE LA GAMME KATANA™ Zirconia

KATANA™ Zirconia HTML PLUS se caractérise par l'utilisation de matières premières uniques qui permettent un frittage à grande vitesse, une translucidité améliorée et cela sans compromettre la résistance. Le résultat est une armature ou un bridge monolithique fiable avec une belle forme et une belle couleur s'adaptant à la dentition naturelle du patient.

Pourquoi utiliser
KATANA™ Zirconia HTML PLUS ?

LA MEILLEURE RÉSISTANCE*

Convient à une variété de cas avec une épaisseur minimale. Vous pouvez choisir une conception monolithique, découpée ou à armature avec la procédure de fabrication appropriée.

*De la gamme KATANA™ Family (1150 MPa).

ESTHÉTIQUE ET MANIPULATION AISÉES

La technologie multicouches sans couture élimine les lignes de transition de teintes et optimise l'équilibre des couches pour une couleur naturelle améliorée, permettant une procédure simplifiée et rapide.

PROCESSUS SIMPLE

Refaire ou cas urgent ? Aucun problème ! Le frittage à grande vitesse (54 minutes) offre de toutes nouvelles possibilités. Terminez le travail facilement en une journée.

EXCELLENTE QUALITE

La précision d’ajustement des restaurations après le processus de frittage final réduit le risque de reconditionnement. Pas de perte de temps ni de matériel.

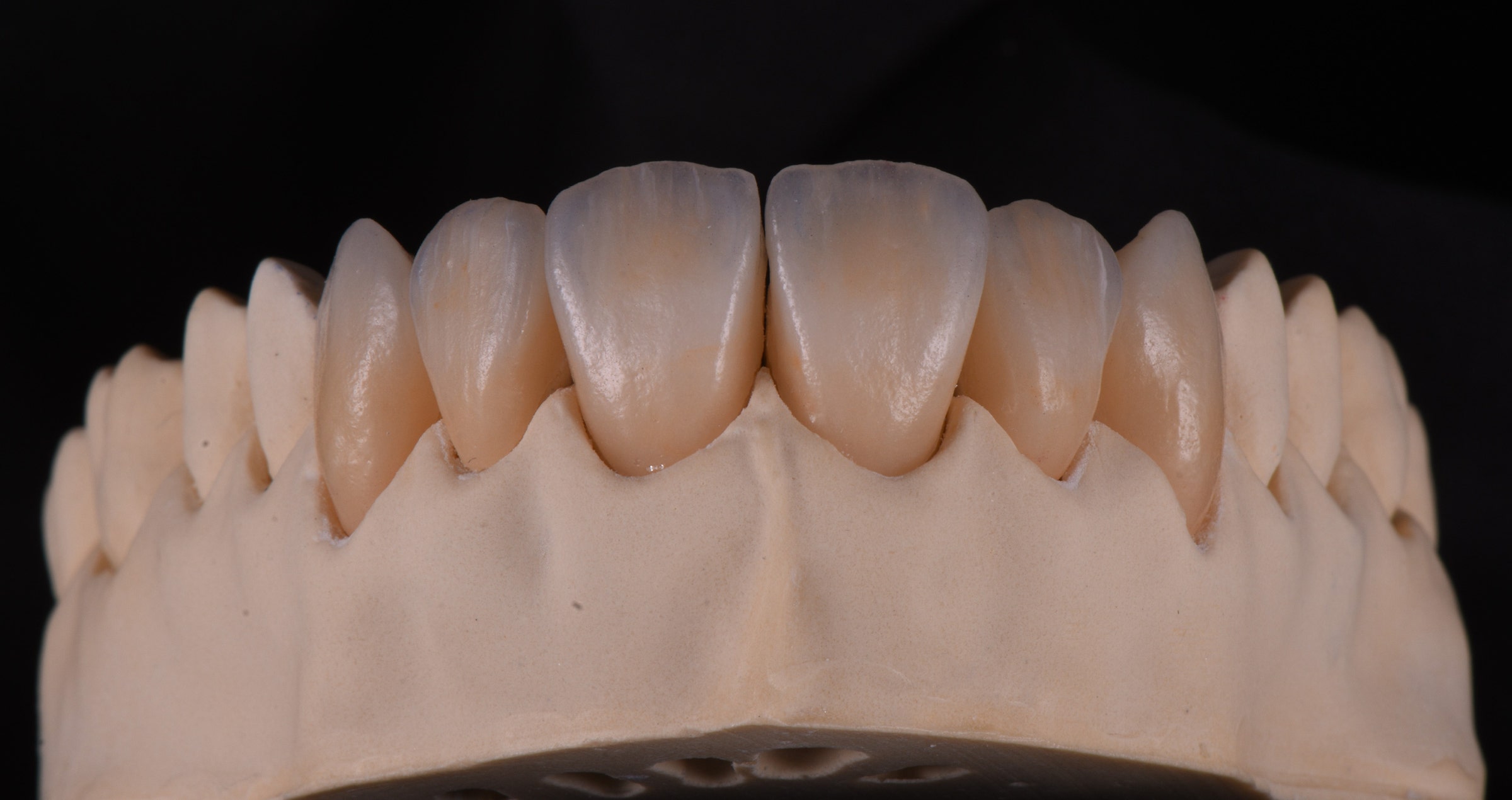

Photos des Drs MDT Daniele Rondoni et MDT Roberto Rossi

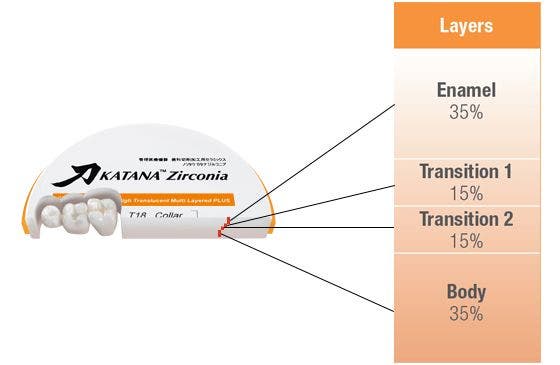

Image - desktop

(…%) Epaisseur de chaque couche du disque en %

Conditions de mesure :
Evalué par le matériau de base (couleur blanche).
1 Selon ISO 6872 : 2015, Taille de l’échantillon : 3x4x40mm.
2 Transmission de toute la lumière, illuminant : D65, épaisseur de l’échantillon : 1.0mm.

Source des données : Kuraray Noritake Dental Inc. Les résultats varient selon les conditions de réalisation.

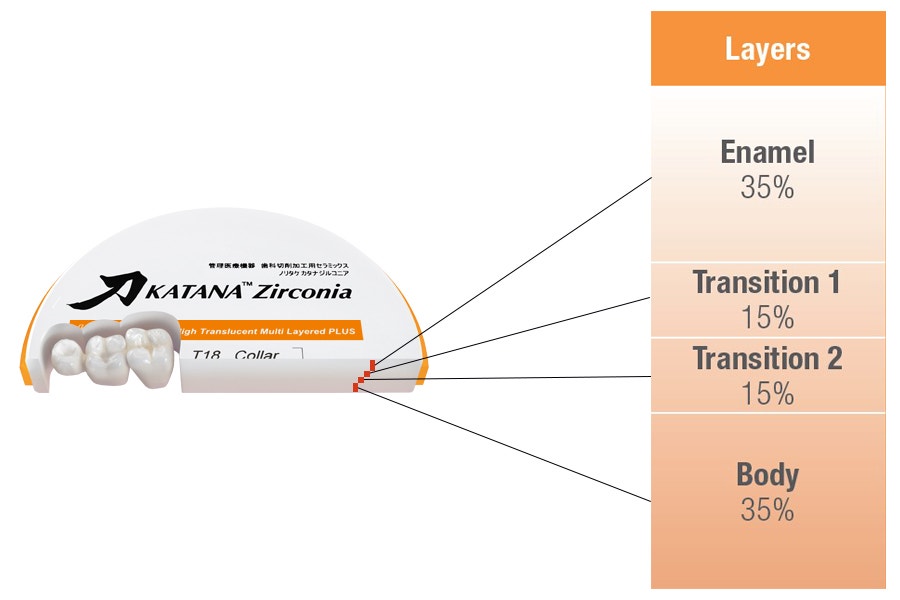

Image - mobile

(…%) Epaisseur de chaque couche du disque en %

Conditions de mesure :
Evalué par le matériau de base (couleur blanche).
1 Selon ISO 6872 : 2015, Taille de l’échantillon : 3x4x40mm.
2 Transmission de toute la lumière, illuminant : D65, épaisseur de l’échantillon : 1.0mm.

Source des données : Kuraray Noritake Dental Inc. Les résultats varient selon les conditions de réalisation.

Technologie multicouches innovante

KATANA™ Zirconia HTML PLUS a été développé sur la base du concept d'être "réaliste" - imitant avec précision et naturellement la couleur et la translucidité des dents naturelles.

Couche d'email

Pour fournir une translucidité élevée qui s'harmonise avec les dents antérieures.

Couche de dentine 1

Pour fournir une couleur et une translucidité homogènes vers la couche d'émail.

Couche de dentine 2, 3

Pour fournir des couleurs profondes et vives tout en réduisant le blanchiment.

QU'EST-CE QUI REND KATANA™ Zirconia HTML PLUS DIFFÉRENT ?

Kuraray Noritake Dental Inc. se distingue de ses concurrents par son processus de production interne unique de matières premières en zircone. Le contrôle de chaque détail de ce processus assure les superbes fonctionnalités de notre disque :

  • Haute résistance*
  • Esthétique et manipulation aisées
  • Procesus rapide
  • Excellent qualité


*La plus haute résistance de la gamme KATANA™ Family


FRITTAGE À GRANDE VITESSE JUSQU'AUX BRIDGES 3 UNITES

QUALITÉ COMBINÉE À LA VITESSE

Une qualité exceptionnelle combinée à la vitesse est une caractéristique unique absolue de "KATANA™ Zirconia" par rapport à tous les produits concurrents. La technique unique de pressage et de préfrittage est la clé pour permettre à nos clients de réaliser des restaurations de bridges jusqu'à 3 éléments sans aucun compromis en termes d'esthétique ou de propriétés mécaniques en utilisant le programme de frittage à grande vitesse de 54 minutes*.

*Le matériau est retiré du four à 800°C/1472°F. Un four avec un programme de cuisson configurable est nécessaire.

COMPARAISON

KATANA™ Zirconia HTML PLUS A3 après un frittage de 54 minutes (à gauche) par rapport au Shade Guide A3 (à droite).

Sources photos : Kuraray Noritake Dental Inc.

Harmoniser avec la cavité orale

KATANA™ Zirconia HTML PLUS est développé en interne ce qui nous a permis d'améliorer
la translucidité et d'optimiser la couleur pour s'harmoniser avec la cavité buccale.

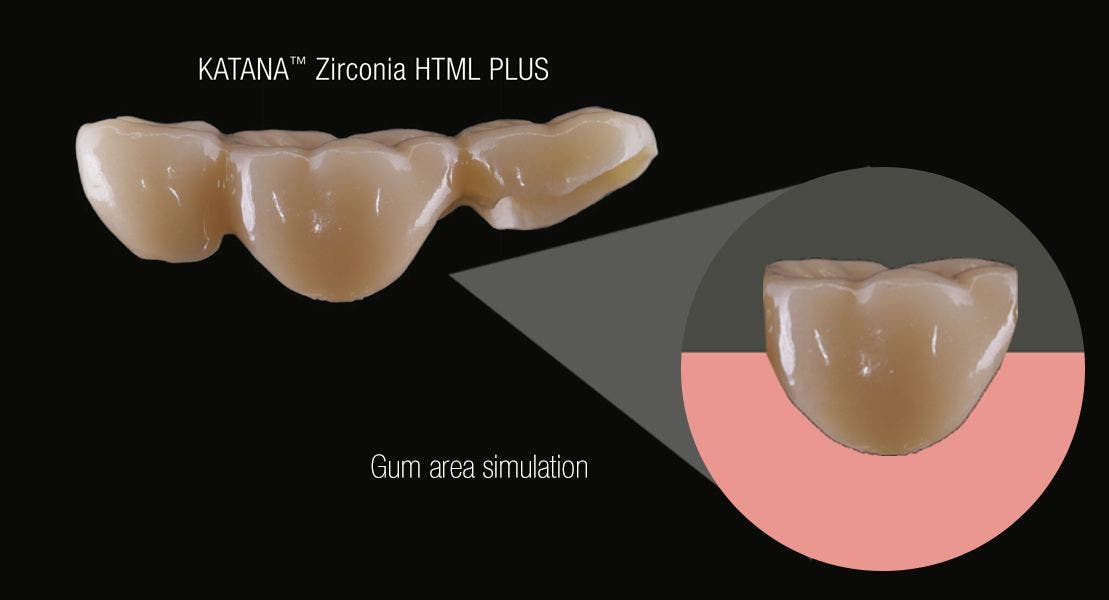

EXEMPLES DE TEINTES

Dans cet exemple, la couleur de KATANA™ Zirconia HTML PLUS est brillante,
profonde et vive même sur la zone des gencives.


Sources photos : Kuraray Noritake Dental Inc.

Programme de frittage unifié

Désormais, KATANA™ Zirconia HTML PLUS, YML, STML et UTML
peuvent tous être frittés en utilisant les mêmes programmes.


La recommandation de frittage ci-dessus n'est qu'une ligne directrice ; certains ajustements peuvent être nécessaires en fonction de chaque four.
Dans le cas d'un frittage de 54, 90 minutes, s'il ne peut pas être réglé selon le programme, il ne peut pas être fritté.

Sélection de teinte / épaisseur

Sélectionnez la teinte cible et l'épaisseur de disque correcte pour obtenir une
graduation appropriée entre la longueur de la couronne, l'émail et la dentine.

Produits

Pour commander, choisissez parmi les options suivantes.

KATANA™ Zirconia HTML PLUS 14MM
KATANA™ Zirconia HTML PLUS 14MM
-
+
KATANA™ Zirconia HTML PLUS 18MM
KATANA™ Zirconia HTML PLUS 18MM
-
+
KATANA™ Zirconia HTML PLUS 22MM
KATANA™ Zirconia HTML PLUS 22MM
-
+

Foire Aux Questions FAQ

Nous avons rassemblé une liste de réponses aux questions les plus pertinentes.

What has been improved compared to KATANA™ Zirconia HTML?

Compared to KATANA™ Zirconia HTML, KATANA™ Zirconia HTML PLUS has higher translucency, and can optimize colors to harmonize better with the oral cavity. KATANA™ Zirconia HTML PLUS is compatible with the 54-minute sintering program, and can be sintered according to same sintering schedule as UTML, STML and YML.



Photo source: Kuraray Noritake Dental Inc.



Comparison of color:

KATANA™ Zirconia HTML PLUS A3.5 vs. previous HTML A3.5.

Color of HTML PLUS is brighter, deeper and more vivid even on the gum area.

How has the translucency of KATANA™ Zirconia HTML PLUS been improved compared to that of HTML?

KATANA™ Zirconia HTML PLUS is made from a completely new raw material developed in-house, allowing us to improve its translucency.

What is the mechanical property of KATANA™ Zirconia HTML PLUS?

KATANA™ Zirconia HTML PLUS has the same mechanical strength as HTML, while its translucency has been improved compared to HTML. Please refer to the inserted chart below.



Comparison of physical properties of KATANA™ Zirconia series





*Measurement condition: Evaluated by base material (white color)

1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40mm.

2 All light transmittance, illuminant: D65, Thickness of sample: 1.0mm.

Data source: Kuraray Noritake Dental Inc. The numerical value varies according to existing conditions.

What is the sintering schedule of KATANA™ Zirconia HTML PLUS? Can HTML PLUS be sintered according to the conventional sintering schedule?

KATANA™ Zirconia HTML PLUS, YML, UTML, and STML can be sintered using 54-minute, 90-minute, or standard sintering schedule. UTML and STML can be sintered according to either the new or conventional sintering schedule, but HTML PLUS cannot be sintered according to the conventional HTML sintering schedule.





The above sintering recommendation is only a guideline; some adjustments may be required depending on each individual furnace.

In case of 54, 90-minute sintering, if it cannot be set according to the schedule, it cannot be sintered.

Why has the 90-minute sintering program been changed?

HTML PLUS and HTML are made from different raw materials. The sintering schedule has been adapted to sinter the raw materials of HTML PLUS appropriately.

What would be the result if the KATANA™ Zirconia HTML PLUS is sintered using the conventional sintering schedule?

This is not recommended as you will not be able to achieve your desired level of translucency or mechanical strength.

Why is the translucency measurement condition of KATANA™ Zirconia HTML PLUS different from conventional ones.

The measurement conditions differ depending on the manufacturer. Some manufacturers do not disclose this information. We adopt the All Light Transmittance Testing Method (Illuminant: D65, Thickness of sample: 1.0mm) of Tosoh, ltd., which other major manufacturers also adopt.

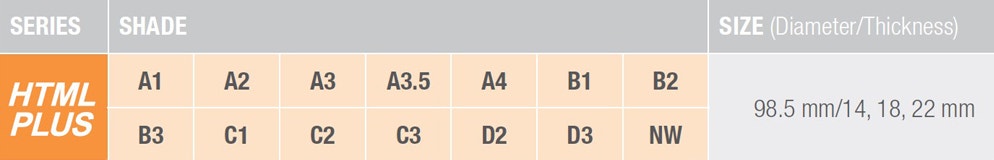

In what shades, disc size (thickness/diameter) is KATANA™ Zirconia HTML PLUS available?

KATANA™ Zirconia HTML PLUS is available in a selection of 14 shades. Please refer to the following table overview for more information about shade and disc thickness.



Shade / Thickness selection



Is it possible to speed sinter a KATANA™ Zirconia HTML PLUS long span bridge?

No, this is not possible. 54 or 90-minute sintering is only possible for up to a three-unit bridge restoration.

Which finishing methods are recommended for KATANA™ Zirconia HTML PLUS?

KATANA™ Zirconia HTML PLUS can be finished by glazing, staining or porcelain application.



COMPATIBLE MATERIALS



CERABIEN™ ZR

Glaze and Stain

- FC Paste Stain

- External & Internal Stain

- FL Glaze, VC Glaze

Layering porcelain

- Luster, etc.



CZR PRESS LF

Stain and Glaze

- LF External & Internal Stain

Layering porcelain

- LF Luster, etc.

Is it possible to finish KATANA™ Zirconia HTML PLUS restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with PEARL SURFACE™ Z (polishing paste).



Please note that the shade of KATANA™ Zirconia HTML PLUS should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

How have the colors KATANA™ Zirconia HTML PLUS been improved compared to HTML?

KATANA™ Zirconia PLUS has brighter, deeper and more vivid colors allowing it to harmonize better with the oral cavity, as well as, the gum color. The translucency has also been improved made possible by our newly developed inhouse raw materials.

Is there any difference in the recommended frame design (minimum thickness, connector size) between KATANA™ Zirconia HTML PLUS and HTML?

Recommended frame design and points to be kept in mind for KATANA™ Zirconia HTML PLUS are the same as those of HTML. Only the sintering schedule is different. Please use the new sintering schedule for KATANA™ Zirconia HTML PLUS.

Is it possible to wet mill KATANA™ Zirconia?

It is generally not recommended to wet-mill this product, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots to appear on the restoration during the sintering process. Causes for this are, for example, oily fingers, excessive purging with high air pressure, residuals of silicon point substance that were applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that were created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Are the sintering schedules for KATANA™ Zirconia the same as other manufacturers’ zirconia products?

The sintering parameters differ depending on manufacturers. KATANA™ Zirconia UTML, STML, YML and HTML PLUS (excluding HT and LT) can be sintered according to same sintering schedule.



The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Please refer to the sintering schedule when sintering restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace, regardless of the manufacturer, is capable of setting the KATANA™ Zirconia sintering program, on condition that its technical specifications can be used. If the KATANA™ Zirconia sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multi-layer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration.

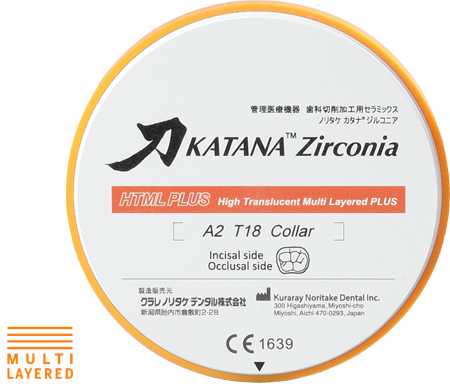

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which the “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).

Is the shade pre-set for staining, just for polishing?

The shade of KATANA™ Zirconia multi-layered series should be pre-set for glazing.

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials: By using materials that Kuraray Noritake Dental Inc. has developed by themselves specifically for KATANA™ Zirconia, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.
