KATANA ZirconiaHTML PLUS REBORN TO PUSH THE LIMITS.STRONG, AESTHETIC, WITH HIGH SPEED SINTERING CAPABILITY. 1150MPa SUPER STRONG 45% TRANSLUCENT 54MIN SUPER FAST
KATANA ZirconiaHTML PLUS REBORN TO PUSH THE LIMITS.STRONG, AESTHETIC,WITH HIGH SPEED SINTERING CAPABILITY. 1150MPa SUPER STRONG 45% TRANSLUCENT 54MIN SUPER FAST
HIGHEST STRENGTH VERSION OF KATANA™ Zirconia KATANA™ Zirconia HTML PLUS is characterized by the use of unique raw materials that correspond to high speed sintering, improved translucency and that without compromising strength. The result is a reliable framework or monolithic bridge with a beautiful shape and color fitting the patient’s natural dentition. Order now
WHY USE KATANA™Zirconia HTML PLUS? HIGHEST STRENGTH* Suitable for a variety of cases within minimum thickness. You may choose a monolithic, cut back or framework design with the appropriate fabrication procedure. *Highest strength of KATANA™ Zirconia series (1150 MPa). SIMPLE AESTHETICS & HANDLING The seamless multi-layered technology eliminates visible transition lines and optimizes layer balance for improved natural color, enabling a simplified, time-saving procedure. FAST PROCESSING Re-make and rush cases? No problem. High-speed sintering (54-minute) offers completely new possibilities. Finish the work easily within one day. EXCELLENT QUALITY Outstanding fitting accuracy of restorations after the final sintering process reduces remanufacturing risk. No waste of time and materials.
(..%) the thickness of each layer in a disc in % Measurement condition:Evaluated by base material (white color).1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40 mm.2 All light transmittance, illuminant: D65, Thickness of sample: 1.0 mm.Data source: Kuraray Noritake Dental Inc. The numerical value varies according to a condition.
(..%) the thickness of each layer in a disc in % Measurement condition:Evaluated by base material (white color).1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40 mm.2 All light transmittance, illuminant: D65, Thickness of sample: 1.0 mm.Data source: Kuraray Noritake Dental Inc. The numerical value varies according to a condition.

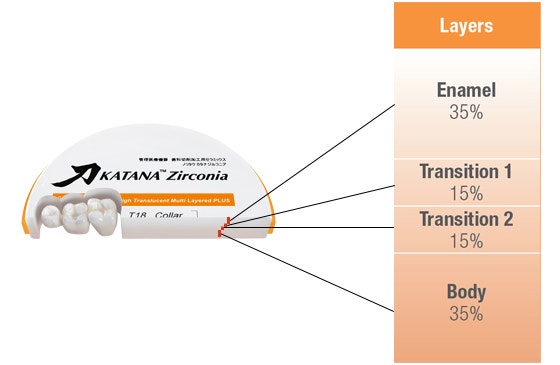

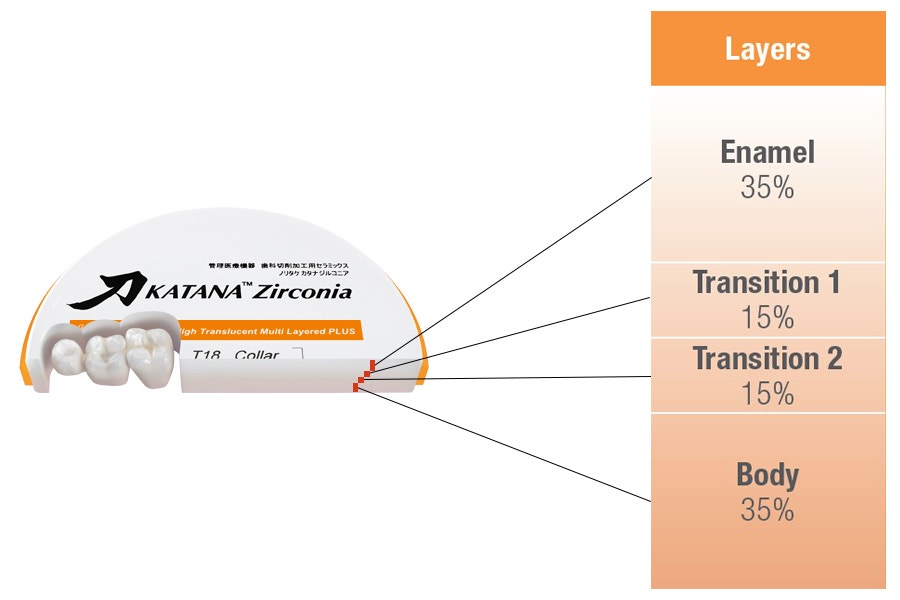

Innovative multi-layered technology KATANA™ Zirconia HTML PLUS was developed based on the concept of being “lifelike“ - accurately and naturally mimicking the color and translucency of natural teeth. Enamel Layer To provide high translucency that harmonizes with the anterior teeth. Body Layer 1 To provide seamless color and translucency towards the Enamel Layer. Body Layer 2, 3 To provide deep and vivid color while reducing whitening.
WHAT MAKES KATANA™ Zirconia HTML PLUS DIFFERENT? Kuraray Noritake Dental Inc. distinguishes itself from its competitors by its unique in-house production process of zirconia raw materials. Controlling every detail of this process provides for the superb features of our disc: Highest strength* Simple aesthetics & handling Fast processing Excellent quality *Highest strength of KATANA™ Zirconia series

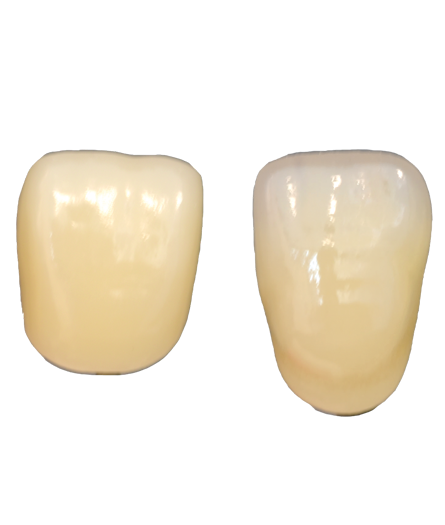

HIGH-SPEED SINTERING UP TO 3-UNIT BRIDGE QUALITY COMBINED WITH VELOCITY Outstanding quality combined with velocity is an absolute unique feature of "KATANA™ Zirconia" over all competitive products. The unique pressing and pre-sintering technique is the key to allow our customers to realize restorations of up to 3-unit bridges without any compromise in terms of aesthetics or mechanical properties using the 54-minute* high-speed sintering program. *The material is removed from the furnace at 800°C/1472°F. A furnace with a configurable firing program is required. COMPARISON KATANA™ Zirconia HTML PLUS A3 after 54-minute sintering (left) vs. Shade Guide A3 (right). Photo source: Kuraray Noritake Dental Inc.
Harmonize with the oral cavity KATANA™ Zirconia HTML PLUS is developed in-house which allowed us to improvethe translucency and optimize the color to harmonize with the oral cavity.

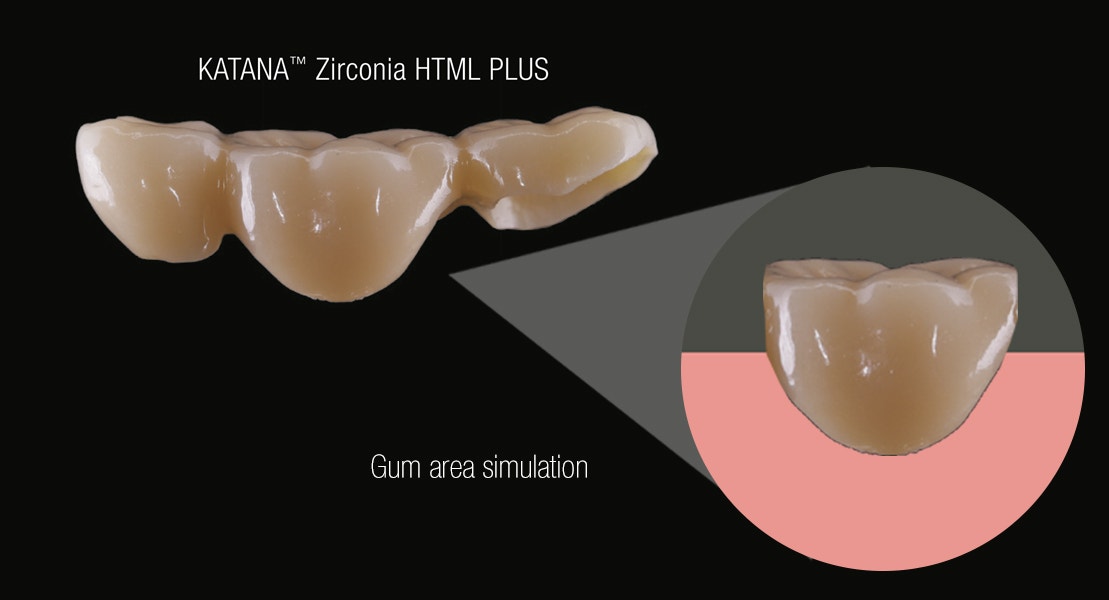

COLOR EXAMPLE In this examle the color of KATANA™ Zirconia HTML PLUSis bright, deep and vivid even on the gum area.
Unified sintering schedule KATANA™ Zirconia HTML PLUS, YML, STML and UTMLcan all be sintered using the same schedule.
The above sintering recommendation is only a guideline; some adjustments may be required depending on each individual furnace.In case of 54, 90-minute sintering, if it cannot be set according to the schedule, it cannot be sintered.

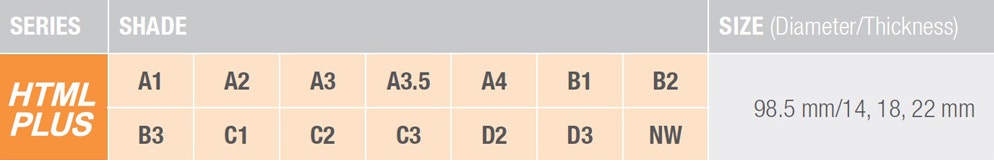

Shade / Thickness selection Select the target shade and the correct disc thickness to achieve anappropriate graduation between crown length, enamel and body (dentin).
