DAS ZIRKONOXID DER KATANA™ FAMILY MIT HÖCHSTER FESTIGKEIT

KATANA™ Zirconia HTML PLUS basiert auf einer einzigartigen Rohstofftechnologie. Daraus resultieren die Möglichkeit des High-Speed-Sinterns, die nochmals verbesserte Transluzenz und die kompromisslos hohe Festigkeit. Verlässlichkeit: Ergebnis ist ein stabiles Gerüst als optimale Grundlage für die ästhetische Finalisierung oder eine monolithische Restauration, die sich mit natürlichem Aussehen wunderbar in den Patientenmund integriert.

WARUM KATANA™ Zirconia HTML PLUS VERWENDEN?

HOHE FESTIGKEIT*

Geeignet für ein breites Spektrum, insbesondere für minimalinvasive Behandlungen. Sie haben die Wahl zwischen Gerüstkonstruktionen, Cut-Back-Konstruktionen oder auch monolithischen Lösungen mit entsprechenden Individualisierungen.

*Hohe Festigkeit innerhalb der KATANA™ Zirconia-Familie (1150 MPa).

EINFACHES HANDLING & HOHE ÄSTHETIK

Dank einheitlich durchgehender Multi-Layered-Technologie sind die gefrästen Restaurationen frei von sichtbaren Übergangslinien. Die Einfärbung wurde zusätzlich optimiert und verbessert. Ergebnis ist eine harmonische Grundlage für das effiziente Erreichen einer wunderbar natürlichen Ästhetik.

SCHNELLE VERARBEITUNG

Eine Sonderanfertigung oder ein Notfall? Kein Problem! Das High-Speed-Sintern (54 Minuten) bietet völlig neue Möglichkeiten. Beenden Sie Ihre Arbeit einfach innerhalb eines Tages.

AUSGEZEICHNETE QUALITÄT

Die Passgenauigkeit der Restaurationen nach dem abschließenden Sinterprozess reduziert das Wiederaufbereitungsrisiko. Keine Verschwendung von Zeit und Material.


Fotos mit freundlicher Genehmigung von MDT Daniele Rondoni und MDT Roberto Rossi

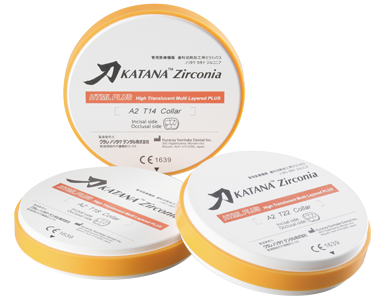

Image - desktop

(… %) die Dicke jeder Schicht in einer Disk in %

Messbedingung:
Bewertet nach Basismaterial (weiße Farbe).
1 Gemäß ISO 6872: 2015, Probengröße: 3 x 4 x 40 mm.
2 Jede Lichtdurchlässigkeit, Leuchtmittel: D65, Dicke der Probe: 1,0 mm.

Datenquelle: Kuraray Noritake Dental Inc. Der numerische Wert variiert je nach Zustand.

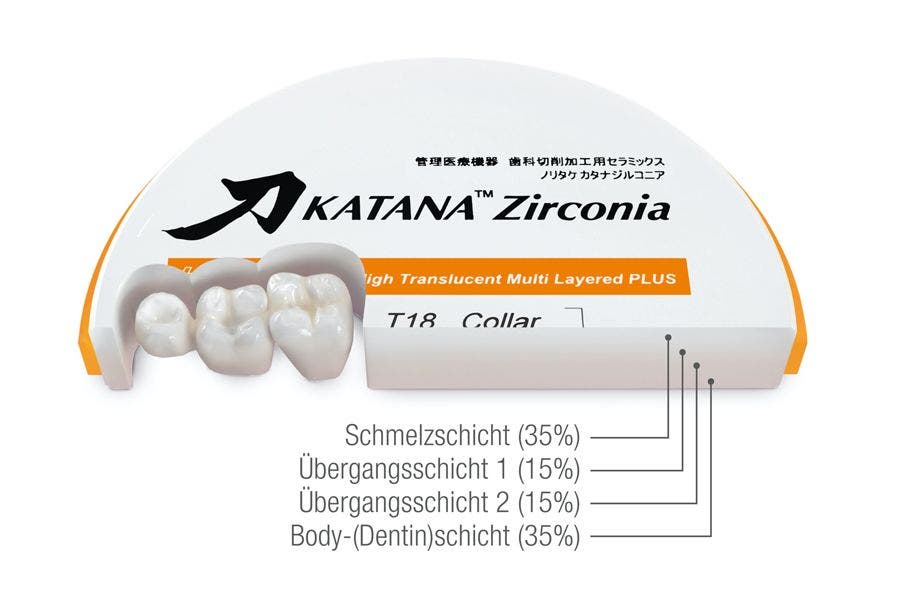

Image - mobile

(… %) die Dicke jeder Schicht in einer Disk in %

Messbedingung:
Bewertet nach Basismaterial (weiße Farbe).
1 Gemäß ISO 6872: 2015, Probengröße: 3 x 4 x 40 mm.
2 Jede Lichtdurchlässigkeit, Leuchtmittel: D65, Dicke der Probe: 1,0 mm.

Datenquelle: Kuraray Noritake Dental Inc. Der numerische Wert variiert je nach Zustand.

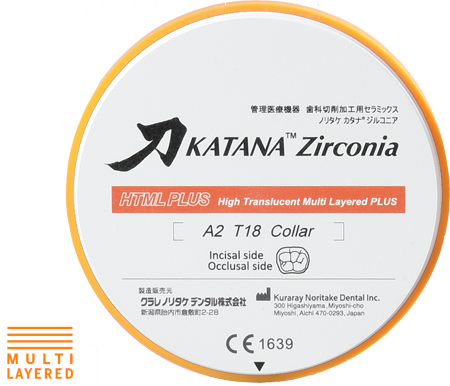

Innovative multi-layered-technologie

KATANA™ Zirconia HTML PLUS wurde auf der Grundlage des Konzepts „naturgetreu“ entwickelt – für eine exakte und lebendig wirkende Imitation von Farbe und Transluzenz natürlicher Zähne.

Schmelzschicht

Für eine hohe Transluzenz, die mit der von Frontzähnen harmoniert.

Übergangsschicht 1

Für eine nahtlose Farbe und Transluzenz zur Schmelzschicht.

Übergangsschicht 2, 3

Für tiefe und lebendige Farben bei gleichzeitig reduzierter Helligkeit.

WAS MACHT KATANA™ Zirconia HTML PLUS SO BESONDERS?

Kuraray Noritake Dental Inc. unterscheidet sich von seinen Mitbewerbern durch einen einzigartigen hauseigenen Herstellungsprozess von Zirkonoxid-Rohstoffen. Die Kontrolle jedes einzelnen Details bei der Herstellung sorgt für die besonderen Eigenschaften der KATANA™ Zirconia-Disks:

  • Hohe Festigkeit*
  • Einfaches Handling & hohe Ästhetik
  • Schnelle Verarbeitung
  • Ausgezeichnete Qualität


*Hohe Festigkeit innerhalb der KATANA™ Zirconia-Familie


HIGH-SPEED-SINTERN
VON BIS ZU 3-GLIEDRIGEN BRÜCKEN

QUALITÄT KOMBINIERT MIT GESCHWINDIGKEIT

Die hohe Qualität kombiniert mit Geschwindigkeit ist ein Alleinstellungsmerkmal von KATANA™ Zirconia. Schlüssel dafür ist die einzigartige Press- und Vorsintertechnik während der Herstellung. Basierend darauf können bis zu 3-gliedrige Brücken in einem 54-minütigen* High-Speed-Sinterprogramm – ohne Kompromisse in ästhetischen und mechanische Eigenschaften – realisiert werden.

*Das Material wird bei 800 °C/1472 °F aus dem Sinterofen entnommen. Benötigt wird ein Ofen mit konfigurierbarem Brennprogramm.

VERGLEICH

KATANA™ Zirconia HTML PLUS A3 nach 54-minütigem Sintern (links) vs. Shade Guide A3 (rechts).

Bildquelle: Kuraray Noritake Dental Inc.

Harmomie mit der
intraoralen situation

KATANA™ Zirconia HTML PLUS wurde im eigenen Haus entwickelt. Unsere Werkstoffspezialisten konnten die Transluzenz steigern und die Farbe optimieren,
sodass das Material noch besser mit der intraoralen Situation harmoniert.

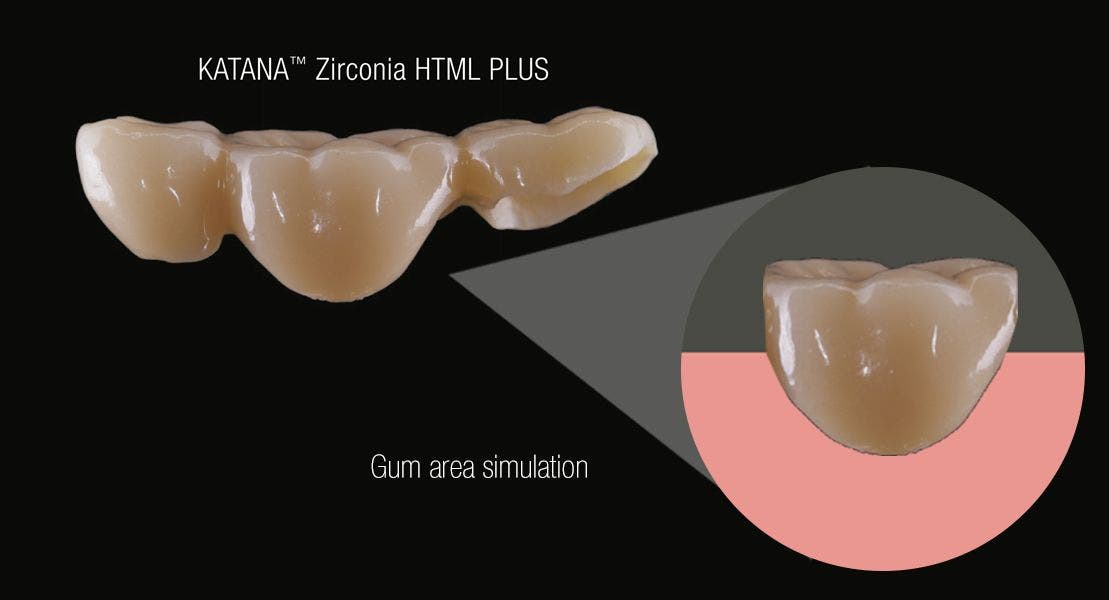

FARBBEISPIEL

In diesem Beispiel ist die Farbe von KATANA™ Zirconia HTML PLUS
selbst im Gingivabereich tief und lebendig.


Bildquelle: Kuraray Noritake Dental Inc.

Einheitliches sinterprogramm

KATANA™ Zirconia HTML PLUS, YML, STML UND UTML
können alle nach dem gleichen Schema gesintert werden.


Die obige Sinterempfehlung ist nur ein Richtwert; je nach Ofen können einige Anpassungen erforderlich sein.
Ist das 54- oder 90-Minuten-Sinterprogramm in Ihrem Ofen nicht programmierbar, ist es nicht möglich, den Ofen nach einem dieser Zeitpläne einzustellen.

Farb- und grössenauswahl

Wählen Sie die Zielfarbe und die richtige Scheibengröße, um eine
harmonische Abstufung zwischen Kronenlänge, Schmelz und Dentin zu erreichen.

Produkte

Wählen Sie zum Bestellen aus den folgenden Optionen.

KATANA™ Zirconia HTML PLUS 14MM
KATANA™ Zirconia HTML PLUS 14MM
-
+
KATANA™ Zirconia HTML PLUS 18MM
KATANA™ Zirconia HTML PLUS 18MM
-
+
KATANA™ Zirconia HTML PLUS 22MM
KATANA™ Zirconia HTML PLUS 22MM
-
+

Häufig gestellte Fragen

Wir haben eine umfassende Liste an Antworten auf die wichtigsten Fragen zusammengestellt.

What has been improved compared to KATANA™ Zirconia HTML?

Compared to KATANA™ Zirconia HTML, KATANA™ Zirconia HTML PLUS has higher translucency, and can optimize colors to harmonize better with the oral cavity. KATANA™ Zirconia HTML PLUS is compatible with the 54-minute sintering program, and can be sintered according to same sintering schedule as UTML, STML and YML.



Photo source: Kuraray Noritake Dental Inc.



Comparison of color:

KATANA™ Zirconia HTML PLUS A3.5 vs. previous HTML A3.5.

Color of HTML PLUS is brighter, deeper and more vivid even on the gum area.

How has the translucency of KATANA™ Zirconia HTML PLUS been improved compared to that of HTML?

KATANA™ Zirconia HTML PLUS is made from a completely new raw material developed in-house, allowing us to improve its translucency.

What is the mechanical property of KATANA™ Zirconia HTML PLUS?

KATANA™ Zirconia HTML PLUS has the same mechanical strength as HTML, while its translucency has been improved compared to HTML. Please refer to the inserted chart below.



Comparison of physical properties of KATANA™ Zirconia series





*Measurement condition: Evaluated by base material (white color)

1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40mm.

2 All light transmittance, illuminant: D65, Thickness of sample: 1.0mm.

Data source: Kuraray Noritake Dental Inc. The numerical value varies according to existing conditions.

What is the sintering schedule of KATANA™ Zirconia HTML PLUS? Can HTML PLUS be sintered according to the conventional sintering schedule?

KATANA™ Zirconia HTML PLUS, YML, UTML, and STML can be sintered using 54-minute, 90-minute, or standard sintering schedule. UTML and STML can be sintered according to either the new or conventional sintering schedule, but HTML PLUS cannot be sintered according to the conventional HTML sintering schedule.





The above sintering recommendation is only a guideline; some adjustments may be required depending on each individual furnace.

In case of 54, 90-minute sintering, if it cannot be set according to the schedule, it cannot be sintered.

Why has the 90-minute sintering program been changed?

HTML PLUS and HTML are made from different raw materials. The sintering schedule has been adapted to sinter the raw materials of HTML PLUS appropriately.

What would be the result if the KATANA™ Zirconia HTML PLUS is sintered using the conventional sintering schedule?

This is not recommended as you will not be able to achieve your desired level of translucency or mechanical strength.

Why is the translucency measurement condition of KATANA™ Zirconia HTML PLUS different from conventional ones.

The measurement conditions differ depending on the manufacturer. Some manufacturers do not disclose this information. We adopt the All Light Transmittance Testing Method (Illuminant: D65, Thickness of sample: 1.0mm) of Tosoh, ltd., which other major manufacturers also adopt.

In what shades, disc size (thickness/diameter) is KATANA™ Zirconia HTML PLUS available?

KATANA™ Zirconia HTML PLUS is available in a selection of 14 shades. Please refer to the following table overview for more information about shade and disc thickness.

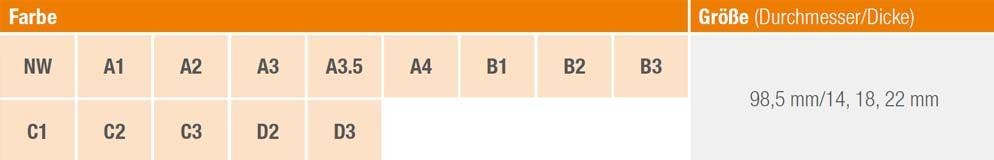

Shade / Thickness selection



Is it possible to speed sinter a KATANA™ Zirconia HTML PLUS long span bridge?

No, this is not possible. 54 or 90-minute sintering is only possible for up to a three-unit bridge restoration.

Which finishing methods are recommended for KATANA™ Zirconia HTML PLUS?

KATANA™ Zirconia HTML PLUS can be finished by glazing, staining or porcelain application.



COMPATIBLE MATERIALS



CERABIEN™ ZR

Glaze and Stain

- FC Paste Stain

- External & Internal Stain

- FL Glaze, VC Glaze

Layering porcelain

- Luster, etc.



CZR PRESS LF

Stain and Glaze

- LF External & Internal Stain

Layering porcelain

- LF Luster, etc.

Is it possible to finish KATANA™ Zirconia HTML PLUS restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with PEARL SURFACE™ Z (polishing paste).



Please note that the shade of KATANA™ Zirconia HTML PLUS should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

How have the colors KATANA™ Zirconia HTML PLUS been improved compared to HTML?

KATANA™ Zirconia PLUS has brighter, deeper and more vivid colors allowing it to harmonize better with the oral cavity, as well as, the gum color. The translucency has also been improved made possible by our newly developed inhouse raw materials.

Is there any difference in the recommended frame design (minimum thickness, connector size) between KATANA™ Zirconia HTML PLUS and HTML?

Recommended frame design and points to be kept in mind for KATANA™ Zirconia HTML PLUS are the same as those of HTML. Only the sintering schedule is different. Please use the new sintering schedule for KATANA™ Zirconia HTML PLUS.

Is it possible to wet mill KATANA™ Zirconia?

It is generally not recommended to wet-mill this product, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots to appear on the restoration during the sintering process. Causes for this are, for example, oily fingers, excessive purging with high air pressure, residuals of silicon point substance that were applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that were created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Are the sintering schedules for KATANA™ Zirconia the same as other manufacturers’ zirconia products?

The sintering parameters differ depending on manufacturers. KATANA™ Zirconia UTML, STML, YML and HTML PLUS (excluding HT and LT) can be sintered according to same sintering schedule.



The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Please refer to the sintering schedule when sintering restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace, regardless of the manufacturer, is capable of setting the KATANA™ Zirconia sintering program, on condition that its technical specifications can be used. If the KATANA™ Zirconia sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multi-layer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration.

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which the “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).

Is the shade pre-set for staining, just for polishing?

The shade of KATANA™ Zirconia multi-layered series should be pre-set for glazing.

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials: By using materials that Kuraray Noritake Dental Inc. has developed by themselves specifically for KATANA™ Zirconia, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.
