KATANA Zirconia YML (CB)


Revolutionäre struktur: eine disk
für alle fälle

Diese innovative Kombination von Rohmaterialien, die dem Werkstoff eine hohe Transluzenz und eine hohe Festigkeit verleihen, bringt volle Power in Ihr Labor.
KATANA™ Zirconia YML sorgt für Effizienz, Klarheit, Einfachheit und Präzision im Handling – ganz ohne Kompromisse beim Ergebnis!

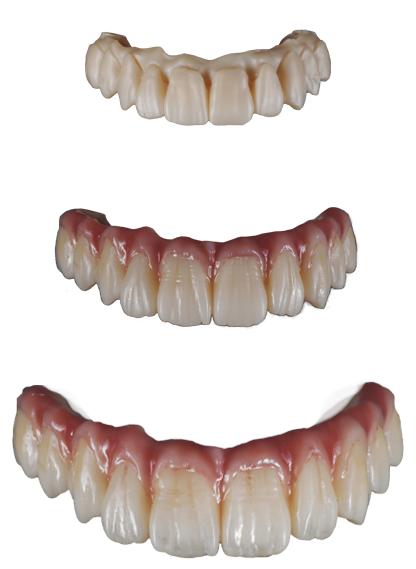

WAS SPRICHT FÜR KATANA™ Zirconia YML?

EINE DISK FÜR ALLE FÄLLE

Aufgrund der hohen Transluzenz und Festigkeit in einem Rohling lässt sich das gesamte Indikationsspektrum abdecken.

NAHTLOSE MULTILAYER-STRUKTUR

KATANA™ Zirconia YML vereint in sich drei Rohmaterialien mit unterschiedlich hohem Yttriumoxid-Anteil für einen ausgewogenen Farb-/Transluzenz- und Festigkeitsverlauf.

ÄSTHETIK LEICHT GEMACHT

Die nahtlose Multilayer-Technologie sorgt dafür, dass sichtbare Übergangslinien zwischen den Schichten gar nicht erst entstehen. Dadurch kommen die natürliche Farbe und Transluzenz optimal zur Geltung – für ein vereinfachtes, zeitsparendes Finish.

KONTROLLIERTE SINTERSCHRUMPFUNG

Eine hohe Passgenauigkeit der Restaurationen nach dem finalen Sinterprozess reduziert das Risiko von Neuanfertigungen. Das spart Zeit und Material.

SCHNELLE FERTIGUNG

Neuanfertigungen und Eilbestellungen? Das High-Speed-Sintern (innerhalb von 54 Minuten) eröffnet ganz neue Möglichkeiten. Restaurationen lassen sich einfach innerhalb eines Tages fertigstellen.


Restauration aus KATANA™ Zirconia YML A3, veredelt mit CERABIEN™ ZR FC Paste Stain
Mit freundlicher Genehmigung von ZT Marco Stoppaccioli – L’Aquila

Image - desktop

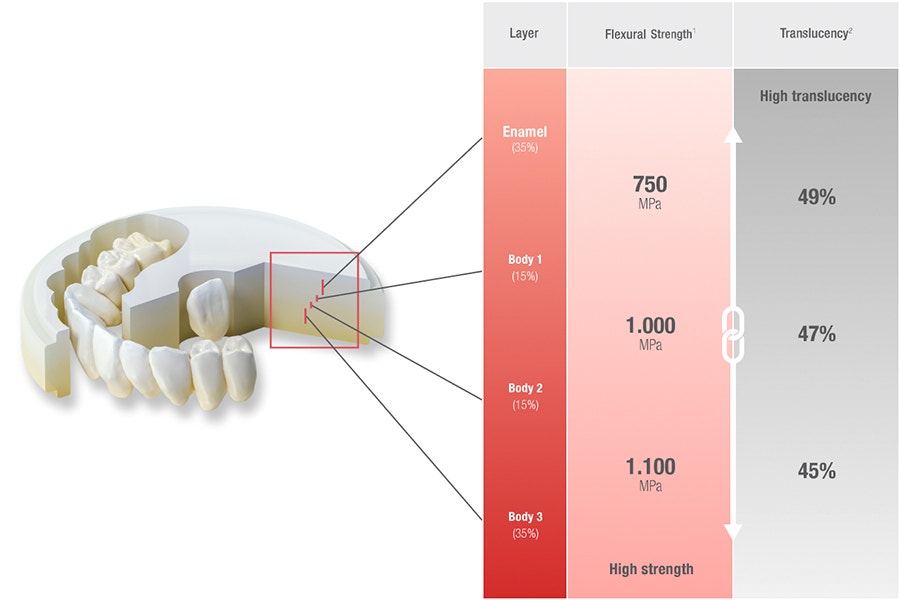

(… %) der Schichtstärken in einem Rohling in %

Messbedingungen:
Beurteilung nicht eingefärbten Materials (weiß).
1 Gemäß ISO 6872: 2015, Größe des Prüfkörpers: 3 x 4 x 40 mm
2 Gesamt-Lichtdurchlässigkeit, Lichtquelle: D65, Stärke des Prüfkörpers: 1,0 mm

Quelle der Daten: Kuraray Noritake Dental Inc. Der numerische Wert variiert je nach Rahmenbedingungen.

Image - mobile

(… %) der Schichtstärken in einem Rohling in %

Messbedingungen:
Beurteilung nicht eingefärbten Materials (weiß).
1 Gemäß ISO 6872: 2015, Größe des Prüfkörpers: 3 x 4 x 40 mm
2 Gesamt-Lichtdurchlässigkeit, Lichtquelle: D65, Stärke des Prüfkörpers: 1,0 mm

Quelle der Daten: Kuraray Noritake Dental Inc. Der numerische Wert variiert je nach Rahmenbedingungen.

Innovative multilayer-technologie

KATANA™ Zirconia YML wurde entwickelt, um durch die exakte Imitation der natürlichen Farbgebung und Transluzenz eine möglichst naturgetreue Nachbildung von Zähnen zu ermöglichen.

Schmelzschicht

Bietet eine auf Frontzähne abgestimmte, hohe Transluzenz.

Body-Schicht 1

Sorgt für einen nahtlosen Farb- und Transluzenzverlauf in Richtung Schmelzschicht.

Body-Schichten 2 und 3

Erzeugen einen Tiefeneffekt sowie eine lebendige Farbe und reduzieren den Aufhelleffekt.

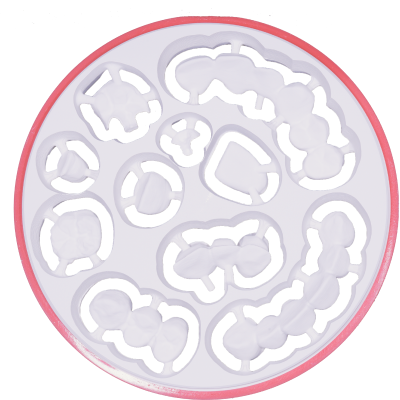

Vielseitige verwendbarkeit

ALL-IN-ONE-LÖSUNG

Die Design-Flexibilität ist außergewöhnlich groß – von Veneers bis Ganzkiefer-Versorgungen lassen sich alle Indikationen realisieren. Dabei haben Sie stets die Wahl zwischen monolithischem, Cutback- oder Gerüstdesign und der entsprechenden, auf die individuellen Bedürfnisse abgestimmten Veredelungsmethode.

  • Langspannige Brücken
  • Dreigliedrige Brücken
  • Kronen
  • Inlays und Onlays
  • Veneers

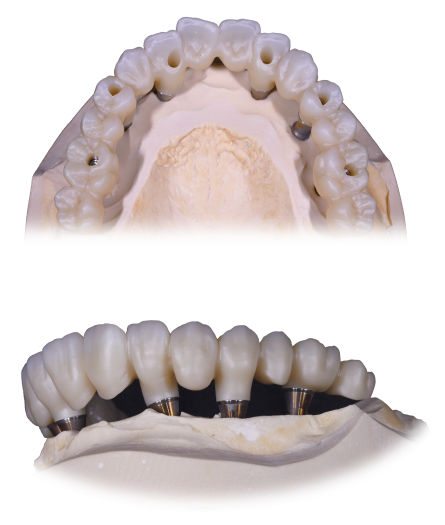

WIR HOLEN DAS BESTE AUS KATANA™ Zirconia YML HERAUS

KONTROLLIERTE SINTERSCHRUMPFUNG

Ein gleichmäßiges Schrumpfungsverhalten und stabile Wärmeausdehnungskoeffizienten über alle Schichten hinweg werden durch die Kontrolle des gesamten Produktionsprozesses von der Pulverzusammenstellung bis zur Blankherstellung sichergestellt. Zudem sorgen umfassende Maßnahmen zur Qualitätssicherung während der werkseigenen Rohlingsproduktion dafür, dass eines der hochwertigsten Zirkonoxide entsteht.

Der bei Kuraray Noritake Dental etablierte Rohmaterial-Herstellungsprozess ist etwas ganz Besonderes. Daraus entsteht ein Material, auf das stets Verlass ist.


ANWENDUNG

Video

Geringere wandstärken möglich

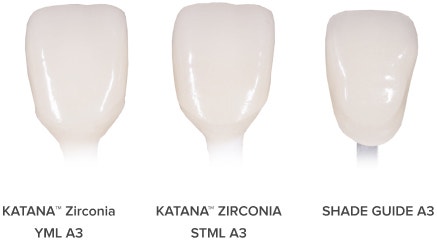

VERGLEICH MIT HOCHTRANSLUZENTEM ZIRKONOXID

Die nachfolgende Abbildung zeigt KATANA™ Zirconia YML und STML mit einer Wandstärke von 0.4*mm für YML, and 0.8*mm für STML. Die Body-Schicht von YML darf demnach dünner gestaltet werden als die des hochtransluzenten Zirkonoxids STML, wodurch sich die Transluzenz von YML wiederum erhöht.

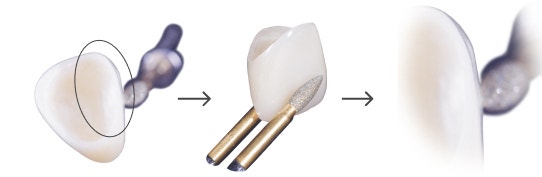

RANDSTABILITÄT UND PASSUNG

Restaurationen aus KATANA™ Zirconia YML weisen typischerweise gleichmäßige Ränder und kaum Ausbrüche auf und sorgen so für eine hervorragende Randpassung. Diese Tatsache ist ein weiterer Grund für die Verwendung des Materials.


Selbst sehr dünn ausgefräste Restaurationsränder sind glatt ohne Ausbrüche und Unregelmäßigkeiten.

High-speed-sintern bis zu dreigliedrige brücken

Eine ausgezeichnete Qualität gepaart mit einer ungewöhnlich schnellen Verarbeitung
– das sind einzigartige Eigenschaften von KATANA™ Zirconia YML.

Chart

Bei den Sinterangaben handelt es sich um Richtwerte. Je nach Typ und Zustand des Sinterofens könnten Anpassungen erforderlich sein.
Falls ein 54- oder 90-Minuten-Programm an Ihrem Ofen nicht wählbar ist, ist eine Durchführung dieser Speedsinterprotokolle nicht möglich.

Wahl der farbe und rohlingsgrösse

Wählen Sie die Zielfarbe und die korrekte Stärke des Fräsrohlings aus, um den gewünschten
Schichtverlauf von Schmelz zu Dentin über die gesamte Höhe der Krone zu erzielen.

Chart

Bei Glasur entspricht die Farbe von KATANA™ Zirconia YML der ermittelten Zahnfarbe. Wird die Restauration nur poliert,
erscheint diese tendenziell dunkler, sodass die Materialfarbe in diesem Fall eine Farbstufe heller sein sollte als die Zielfarbe.

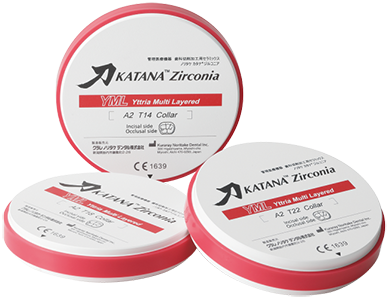

Produkte

Wählen Sie zum Bestellen aus den folgenden Optionen.

KATANA™ Zirconia YML 14MM
KATANA™ Zirconia YML 14MM
-
+
KATANA™ Zirconia YML 18MM
KATANA™ Zirconia YML 18MM
-
+
KATANA™ Zirconia YML 22MM
KATANA™ Zirconia YML 22MM
-
+

Häufig gestellte Fragen

Wir haben eine umfassende Liste an Antworten auf die wichtigsten Fragen zusammengestellt.

How do the mechanical properties of the KATANA™ Zirconia series differ from each other?

The existing KATANA™ Zirconia multi-layered materials (KATANA™ Zirconia UTML/ STML/HTML) have a color gradation, while the base material of the respective type is the same for all layers. The strength and translucency are the same for all layers of the respective type.



KATANA™ Zirconia YML is different in this regard. It is the latest KATANA™ multi-layered disc with a balanced combination of color/translucency and flexural strength gradation. Please refer to chart below, for the overview of the mechanical properties and translucency levels of each type of KATANA™ disc.

Gradation map and physical properties of KATANA™ Zirconia YML



Comparison of physical properties of KATANA™ zirconia series



What exactly does “All-In-One” mean?

“All-In-One” means all application range with one disc. KATANA™ Zirconia YML is characterized by a unique raw material combination of highly translucent zirconia with high strength, which are integrated together by an advanced manufacturing technology. As an “All-In-One” solution, KATANA™ Zirconia YML offers exceptional design flexibility, from long-span full-arch monolithic bridge restorations up to highly aesthetic anterior monolithic crown restorations.

What are the recommended and indicated application areas for KATANA™ Zirconia YML?

From complicated full-arch restorations to highly aesthetic demanding anterior single-unit restorations, an exceptional design flexibility is available. In each of these cases, you can choose a monolithic, cut-back or framework design with the appropriate fabrication process, depending on your specific needs.



 Framework

 Long span bridge

 Anterior / posterior crown

 Inlay, onlay

 Laminate veneer

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials. By using materials that Kuraray Noritake Dental Inc. has developed themselves specifically for the KATANA™ Zirconia series, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.

What shade selection is available for KATANA™ Zirconia YML and in which disc thicknesses and shapes are these available?

KATANA™ Zirconia YML is available in a shade selection of 14 shades, which are adapted to the VITA-classical A1-D4™ Shade Guide. Please refer to the following table overview for more information about shape and disc-thickness.



Shade / Thickness selection



What should be kept in mind when designing restorations with KATANA™ Zirconia YML?

Please observe the following guidelines of applicable minimum wall thickness:





The thickness specifications apply to full zirconia restorations. The thickness of build-up porcelain is not included. The minimum wall thicknesses apply to full zirconia restoration or to frame-work for build-up porcelain restoration. In these cases, 0.4 mm (anterior) or 0.5 mm (posterior) should be kept for the area located in the bottom (lower) half of the disc. If full zirconia veneer restoration is used for combination with the porcelain, 0.8 mm or more should be kept for the area located in the upper half of the disc.



Please observe the following guidelines of applicable cross-section wall thickness:





3 units or less Connector cross-section area can be placed in any layer.



A

The maximum number of pontics is one. Not suitable for a cantilevered bridge. 4 units or more - at least 50% of the connector cross section should be positioned in the bottom (lower) half of the disc.



B

The maximum number of pontics between two abutments (teeth) should not exceed two. For cantilever bridge, keep the number of pontics at one. In this case, the connector cross-section must be at least 12 mm.

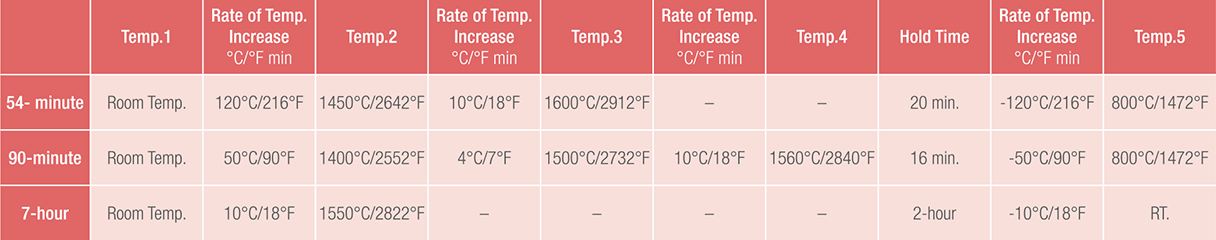

What is the sintering schedule of KATANA™ Zirconia YML?

Please observe the following of sintering schedule:





The above sintering recommendations represent only a guideline; depending on each individual furnace and condition, some adjustments might be necessary. If the 54 or 90-minute sintering program is not programmable in your furnace, it is not possible to set the furnace according to one of these schedules.

Is it possible to speed sinter a KATANA™ Zirconia YML long span bridge?

No, this is not possible. 54- or 90-minute sintering is only possible for up to a three-unit bridge restorations.

How is the crystal distribution within KATANA™ Zirconia YML structured?

The body layer has a higher content of tetragonal crystals, while the cubic content gradually increases towards the enamel layer.

Which finalization methods are recommended for KATANA™ Zirconia YML?

KATANA™ Zirconia YML can be finalized by glazing, staining or porcelain application. With an integrated translucency, color and strength gradient, KATANA™ Zirconia YML is designed to achieve highly aesthetic results by simply using the glazing technique. In case of additional color adjustments, characterizations or individualizations are desired, the unique CERABIEN™ ZR (CZR) FC Paste Stain can be used to achieve the final high aesthetic result according to your preferences.

Is it also possible to finalize KATANA™ Zirconia YML restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with the PEARL SURFACE™ Z (polishing paste). Please note that the shade of KATANA™ Zirconia YML should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

Is it possible to wet mill KATANA™ Zirconia YML?

It is generally not recommended to wet-mill KATANA™ Zirconia, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce the translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots on the restoration during the sintering process. Causes for this are for example oily fingers, excessive purging with high air pressure, residuals of silicon point substance that has been applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that has been created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Is it possible to use coloring liquids from other manufacturers for KATANA™ Zirconia YML?

This is not recommended, as the desired level of translucency or color development cannot be achieved.

Are the sintering schedules for KATANA™ Zirconia the same as other existing zirconia products?

The sintering parameters differ from other manufacturers’ zirconia products. The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Note: The material is removed from the furnace at 800°C. High-speed sintering is possible for up to three-unit bridge restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace capable of setting the KATANA™ Zirconia YML sintering program according to its technical specifications can be used, regardless of the manufacturer. If the KATANA™ Zirconia YML sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multilayer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration. Please refer to our “Handy Chart” as a guideline for this.

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which a “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).
