KATANA Zirconia UTML

For true-to-life anterior restorations.

Enamel-like translucency

Making natural veneers and other anterior prosthetics from zirconia? Yes!

KATANA Zirconia UTML is so translucent that light reaches the original tooth color, bringing you the natural result you need. This zirconia has one of the highest translucency levels on the market, as well as a natural color gradient.

The next time you plan to fabricate a veneer, think about milling KATANA Zirconia UTML. You will be thrilled using zirconia in a totally new way.

Comparable Translucency to e.max



Transmittance (%)
51%
UTML
49%
STML
44%
e.max Press LT

30 - 75 % Stronger to e.max

three-point bending test

Flexural strength (MPa)
550
UTML
750
STML
427
e.max Press LT

Minimum Wall Thickness of KATANA Zirconia UTML

Design a restoration using the suggested guidelines for minimum wall thickness.


Anterior Crown

Veneer*

Posterior Crown

Inlay

Onlay

*Thickness only for zirconia without porcelain build-up. Keep 0.8mm in case of porcelain build-up. You can reduce to 0.4mm when finishing with glaze and polish.

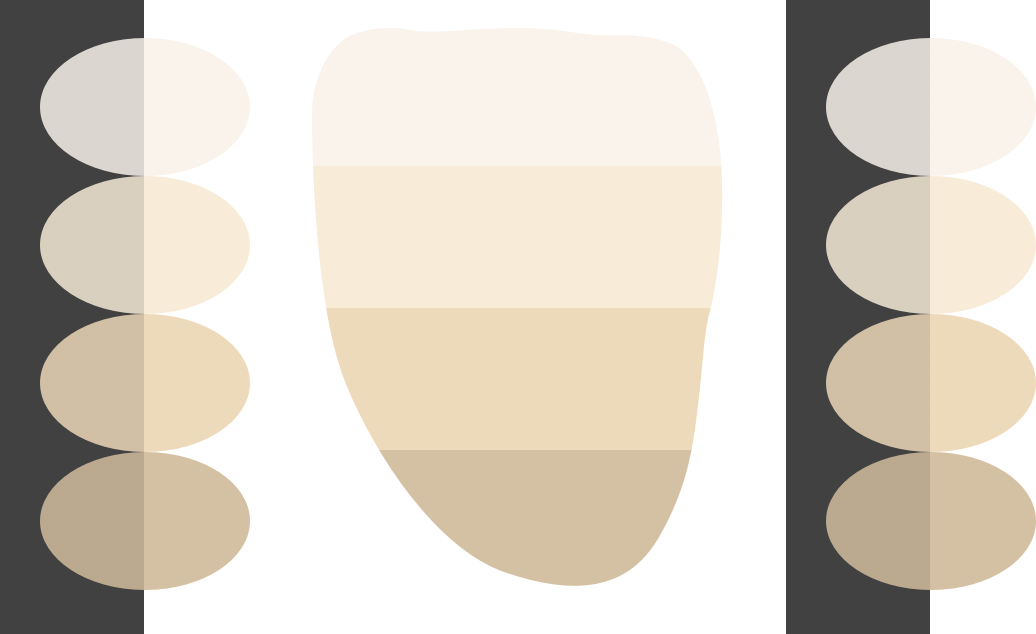

UTML Color Guide

After sintering

TRANSLUCENCY

High translucency through all the disks.

COLOR

Color of VITA Classical shade guide.

Standard
shade (A1 - D4)
Enamel shade
(ENW, EA1 - EA3)

Enamel Layer

Gradational Layer1

Gradational Layer2

Body(Dentine) Layer

TRANSLUCENCY

High translucency through all the disks layers.

COLOR

Reduced Chroma from incisal to middle layer.

MILLED ZIRCONIA PRECISION

EVEN FOR VENEERS NOW.

Made possible by the KATANA Zirconia Multi-Layered series.The  beauty  of  milling  zirconia  is  based  on  its  economics,  speed  and  precision.  With  the KATANA Zirconia Series digital dentistry finally moves to the anterior region too. From now on you don't have to hide your zirconia prosthetics anymore. Or under your veneering ceramics.To give you one example of its new potential. Just mill and sinter your veneers.

It's that simple. Apply stain, glaze and you're done.

Products

To order, choose from the following options.

KATANA™ Zirconia UTML 14MM
KATANA™ Zirconia UTML 14MM
-
+
KATANA™ Zirconia UTML 18MM
KATANA™ Zirconia UTML 18MM
-
+
