Optimizing clinical outcomes of KATANA™ Zirconia restorations The KATANA™ Zirconia Multi-Layered series from Kuraray Noritake Dental Inc. (Kuraray Noritake Dental) is popular among dental technicians and dentists around the world, as it offers great mechanical and optical properties. The available materials have different levels of translucency and strength, and a multi-layered structure that facilitates the creation of lifelike restorations. Furthermore, they are very well processable, which results in a high milling accuracy and smooth margins. Together, these properties are highly valuable for every dental office, as they result in precisely fitting, durable and beautiful restorations that help you exceed your patients’ expectations. Clinical long-term success of these zirconia restorations, however, is not only determined by the material choice and laboratory processing alone. The way clinical procedures such as cementation and intra-oral adjustments are carried out have a decisive impact as well. In order to support you in your striving for a long-lasting bond between the tooth and the restoration, and to facilitate intra-oral polishing, Kuraray Noritake Dental has developed a wide variety of in-office products designed to make your life easier and your practice even more successful. Remove bond-strength compromising proteins When proteins present in blood and saliva are deposited on the bonding surfaces of teeth or dental restorations, the bonding performance of dental adhesives and self-adhesive resin cements will be compromised. As it is impossible to keep these surfaces free of oral fluids at try-in, effective cleaning strategies are required. In tests comparing different methods and cleaning agents, sandblasting and the use of KATANA™ Cleaner have been highly successful in removing the proteins from the bonding surfaces1. As KATANA™ Cleaner is a biocompatible material (unlike other often strongly alkaline zirconia cleaners), it is suitable for intra- and extra-oral use. Hence, it is the perfect solution for cleaning your KATANA™ Zirconia restorations as well as prepared enamel and dentin before cementation. The product has a high cleaning effect and is easy to use: simply rub it in for ten seconds, rinse and dry. Obtain a reliable bond with fewer components Fewer components and fewer procedure steps, this is what an increasing number of dental practitioners strives for when it comes to cementing zirconia restorations. For all of them, PANAVIA™ SA Cement Universal is the solution. The self-adhesive resin cement contains the proprietary long carbon-chain silane coupling agent (LCSi Monomer) developed by Kuraray Noritake Dental that delivers a strong, durable chemical bond to porcelain, lithium disilicate and composite resin without the need for a separate primer. The original MDP monomer, also present in the paste, allows for chemical reactiveness with zirconia, dentin and enamel. Therefore, the product is indicated for a wide range of indications (including adhesion bridges) without the need for separate priming and bonding. Another important fact is that excess removal requires a significantly lower force compared to other cements. This was already the case for product’s predecessor PANAVIA™ SA Cement Plus, as reported by a researcher from Tufts University in Boston, Massachusetts2. For specifically demanding cases, you may increase the bond strength of PANAVIA™ SA Cement Universal to tooth structure with the aid of CLEARFIL™ Universal Bond Quick. Choose the proven and familiar multi-step system For all those who would like to stick to multi-step procedures they have trusted for years, PANAVIA™ V5 is the go-to product. It is suitable for all restorations, including those that demand the highest possible bond strength. It is the strongest cement Kuraray Noritake Dental ever developed, and with five shades, it is the most aesthetic one, too. This allows you to cement all tooth-coloured restorations with confidence, no matter whether they have a retentive or non-retentive design. PANAVIA™ V5 is designed to work perfectly with KATANA™ Zirconia, and is indicated for cementing a wide range of indirect restorations, and also for post-and-core procedures and amalgam bonding. Create antagonist-friendly surfaces Studies have shown that surface roughness of a restoration has a larger impact on the wear of the antagonist than the hardness of the dental material. This means that for an antagonist-friendly behaviour, the restoration surfaces need to be perfectly polished. This task is easily accomplished with TWIST™ DIA for Zirconia, which may be used after intra-oral adjustments or in the context of maintenance measures. The flexible polishing spirals with an innovative shape offer you various application benefits for excellent polishing results. TWIST™ DIA for Zirconia is highly suitable for occlusal surface polishing as the shape and contour of the zirconia restoration is maintained. As they are sterilizable, the spirals may be reused. A winning team for reliable results By using a restorative material, cleaning solution, cementation system and polishing spirals from Kuraray Noritake Dental, you will benefit from streamlined procedures and reliable results. The products are not only designed to work with each other, but also thoroughly tried and tested for combined use, so that you can carry out your procedures with utmost confidence. References 1 Data source: Kuraray Noritake Dental Inc.2 A. Roberta et. al., J Dent Res Vol #98 (Spec Iss A), #3624, Determination of Excess Removability of Self-adhesive Resin Cements May 10, 2022
KATANA Zirconia restoration: Pre-treatment for adhesive luting The prerequisite for adhesive luting is a reliable bond between the tooth and the restorative material. The quality of the bond depends on the resin cement and its correct application. The state of the bonding surface also plays a decisive role. The surfaces of the tooth and restoration must be conditioned and clean. We spoke with Dr. Adham Elsayed. All-ceramic restorations require adhesive luting. Is this true for all restorative materials (zirconia, lithium disilicate, hybrid ceramics, etc.)? Yes and no, several factors must be taken into account. The first important factor are the material properties, especially the flexural strength. Fortunately, clear guidelines based on scientific studies are available. As a guideline, all materials with a flexural strength of less than 350 MPa should be placed with an adhesively luted. Correct adhesive luting stabilizes the restoration and tooth structure. Restorative materials of higher strength (e.g. reinforced glass-ceramics, lithium disilicate ceramics, zirconia, etc.) can be cemented with conventional methods. However, some studies indicate that an adhesive luting can improve the overall stability, whereas others show no significant difference. Another factor guiding the decision for or against adhesive luting is the preparation design. For crowns and bridges, the decisive factor is whether the operator has been able to adhere to the preparation guidelines (minimum abutment height of 4 mm and maximum convergence of 15 degrees)1-5 in order to create the required retention and resistance form for conventional cementation. Minimally invasive restorations, such as resin-bonded fixed dental prothesis (FDPs), veneers and inlay FDPs, are based on a non-retentive preparation design. In such cases, only adhesive luting can ensure adequate retention. Aesthetics is another important factor. Besides the restorative material, the luting material also has a major impact on the optical outcome. For highly translucent ceramics in particular, it is recommended to resort to adhesive luting. While conventional cements are usually only available as opaque materials, resin composites come in different colours with higher colour stability (PANAVIA V5 or PANAVIA SA Universal). How should the surface be pre-treated or conditioned for adhesive luting? Pre-treatment of the surface depends on the structure or microstructure of the ceramic. Silicate ceramics (e.g. glass ceramics) have a glass phase and can be etched. Etching increases the surface area, thus preparing it for adhesive luting. In contrast, oxide ceramics like zirconia as well as composites have no or neglectable amount of glass phase. They cannot be etched. Their surface is conditioned by air-abrasion (with aluminium oxide). This is the only current method which is scientifically proven for achieving a dependable bond with these materials. How important is correct cleaning of the tooth and restoration surface for the quality of the bond? The restoration surface must be decontaminated immediately prior to luting. Contamination must be removed thoroughly. Rinsing with water or alcohol has been shown to be insufficient. Therefore, cleaning solutions such as KATANA Cleaner have been developed. Rub it in, rinse and dry—that's all—for optimal bonding procedures. Unlike other cleaning products, which have to be rubbed in for longer and are only suitable for extraoral use due to their high pH value, KATANA Cleaner is applied within 10 sec. and is suitable for both intraoral and extraoral use. Any contamination is detrimental for the adhesive bond. At try-in of the restoration, for example, its surface becomes contaminated. Saliva, possibly blood, etc. accumulate and the proteins contained act to isolate all subsequently applied components (e.g. the primer). Any contamination must therefore be thoroughly removed prior to the bonding procedure. This is also the case for direct adhesive restorations. KATANA Cleaner offers a simple and quick way to accomplish this task. What makes KATANA Cleaner so interesting for the user? The special features of KATANA Cleaner are its integrated MDP salt and mild pH-value. Let's look at the function of the MDP salt. Rubbed in (for 10 seconds), the cleaner causes the contaminant particles (e.g. remnants from the work process, proteins from saliva, blood, etc.) to adhere to the MDP salt, like a magnet. The contamination is flushed out of the surface by rinsing with water. This ability is attributable to the MDP salt and makes KATANA Cleaner interesting and easy to use. In addition, the pH-value allows us to use the cleaning solution both intraorally and extra-orally, which is another special feature. We generally recommend the use of KATANA Cleaner—for both direct and indirect restorations. Thanks to the universal applicability of the cleaning solution, only one material is needed, while the time required is extremely low. Even for bonding abutments on a titanium base, cleaning with KATANA Cleaner is recommendable as it provides for an ideal basis (before applying the primer). In this case, contamination (e.g. finger grease, residues of the air abrasive) could also act as an insulator and impair the quality of the bond. References: 1. Ladha K, Verma M. Conventional and contemporary luting cements: an overview. J Indian Prosthodont Soc. 2010;10(2):79-88.2. Edelhoff D, Özcan M. To what extent does the longevity of fixed dental prostheses depend on the function of the cement? Working Group 4 materials: cementation. Clin Oral Implants Res. 2007;18 Suppl 3:193-204.3. Güth JF, Stawarczyk B, Edelhoff D, Liebermann A. Zirconia and its novel compositions: What do clinicians need to know? Quintessence Int. 2019;50(7):512-20.4. Smith CT, Gary JJ, Conkin JE, Franks HL. Effective taper criterion for the full veneer crown preparation in preclinical prosthodontics. J Prosthodont. 1999;8(3):196-200.5. Uy JN, Neo JC, Chan SH. The effect of tooth and foundation restoration heights on the load fatigue performance of cast crowns. J Prosthet Dent. 2010;104(5):318-24. Dec 13, 2022

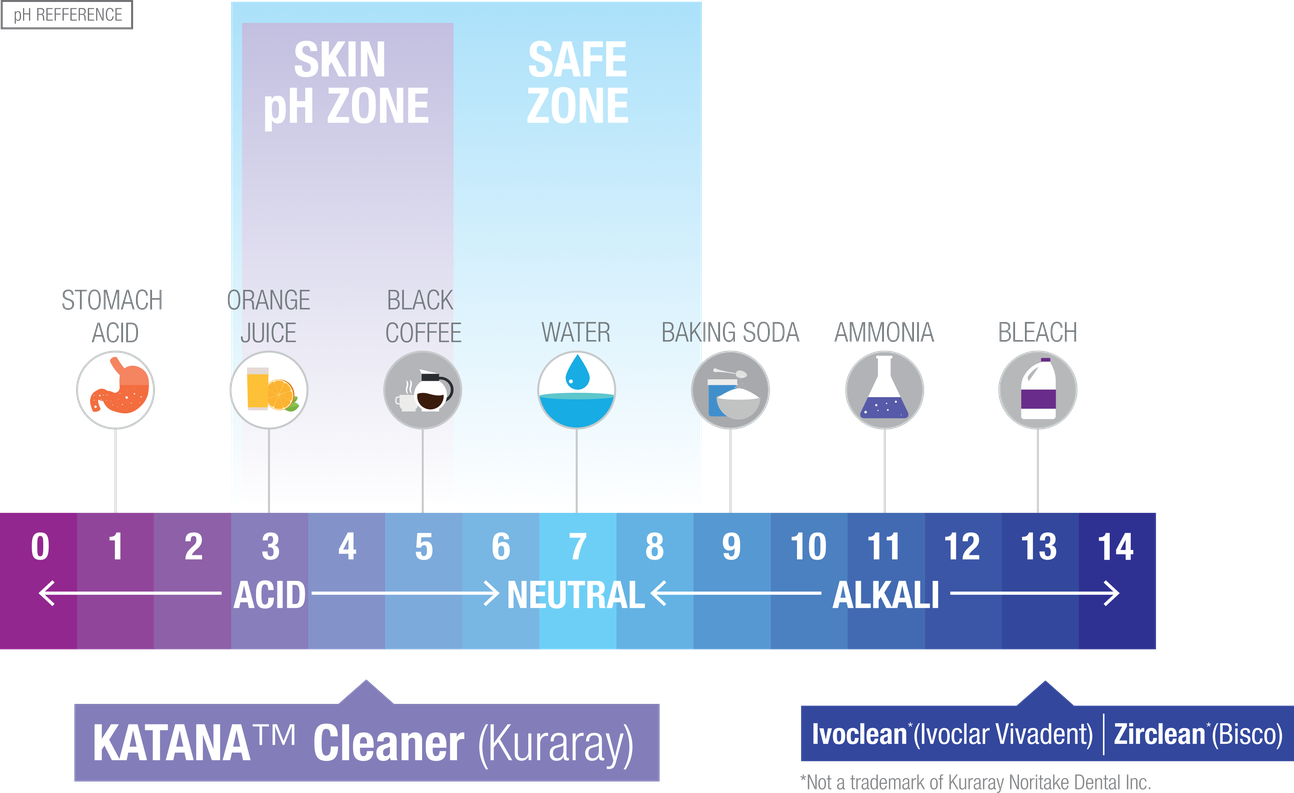

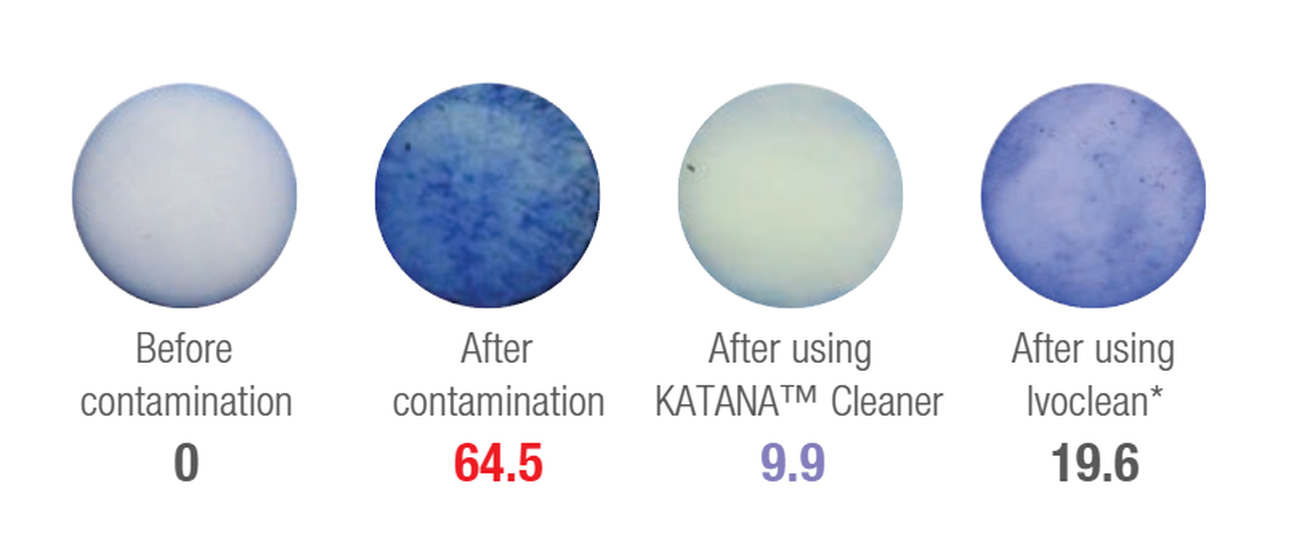

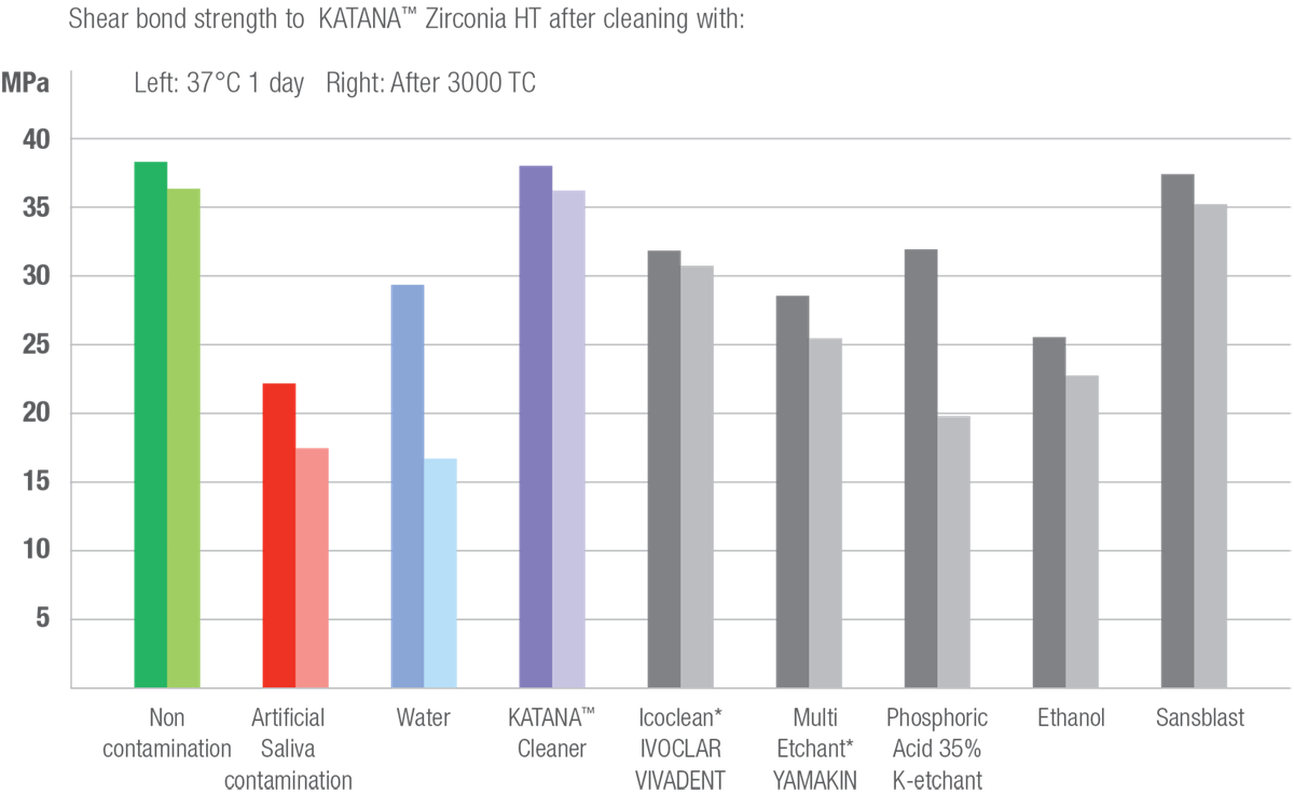

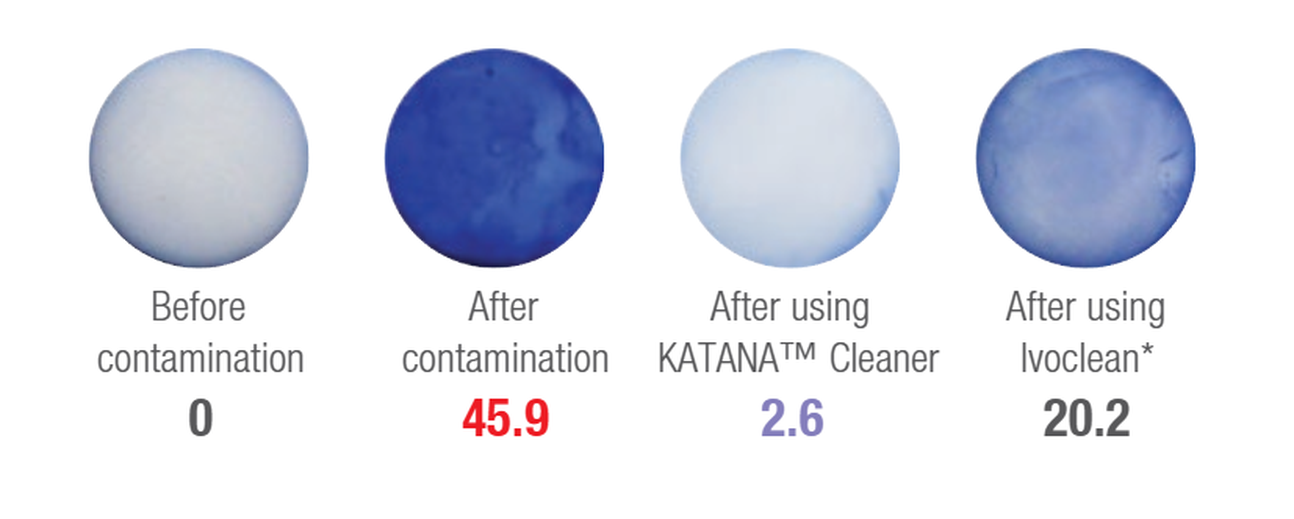

Innovation - Optimising bond quality with Katana Cleaner from Kuraray Noritake dental A strong and durable bond between the tooth and the restoration is a decisive factor influencing the long-term performance of dental restorations. The quality of the bond, however, is not only affected by the bonding agent or cementation solution used, but also by the condition of the bonding surface. For those who would like to ensure clean tooth and restoration surfaces in an easy way, Kuraray Noritake Dental has developed KATANA™ Cleaner, a universal cleaner with MDP salt and a pH of 4.5 for intra- and extra-oral application. It has been proven that proteins present in saliva and blood have a negative effect on the performance of dental adhesives. Especially in indirect procedures, however, it is impossible to keep the bonding surfaces free of oral fluids. At try-in at the latest, the prepared tooth and the restoration are contaminated and need to be cleaned. Rinsing with water does not have the desired effect, and even with many available cleaners, a certain amount of proteins are usually left on the surface. Tests show that by using KATANA™ Cleaner or by sandblasting, the desired high cleaning effect needed is obtained, without compromising bond strength. This is true for KATANA™ Zirconia restorations, while KATANA™ Cleaner also leads to the desired results on dentin and enamel – surfaces in the oral cavity for which sandblasting and most of the other cleaners are not indicated. The use of KATANA™ Cleaner offers yet another advantage: the cleaning procedure is extraordinarily simple, quick and neat. The universal cleaner comes in a bottle with an innovative flip-top cap, enabling single-handed dispensing onto the dish. It is then rubbed into the surface of the restoration and the prepared tooth structure or the abutment for ten seconds, rinsed with water and dried. Thanks to the high surface activity of MDP salt, these ten seconds are sufficient to remove the proteins on the substrate almost completely, creating conditions very similar to those found on a non-contaminated bonding surface. Subsequently, the selected bonding agent or cementation solution – e.g. PANAVIA™ V5 or PANAVIA™ SA Cement Universal – is applied according to the maufacturer’s usage instructions. The result is a strong long-lasting bond, which gives users a peace of mind. Pilot users who have already tested the product agree that KATANA™ Cleaner is the easy way to optimise bond quality and streamline any adhesive procedure. Feb 19, 2020

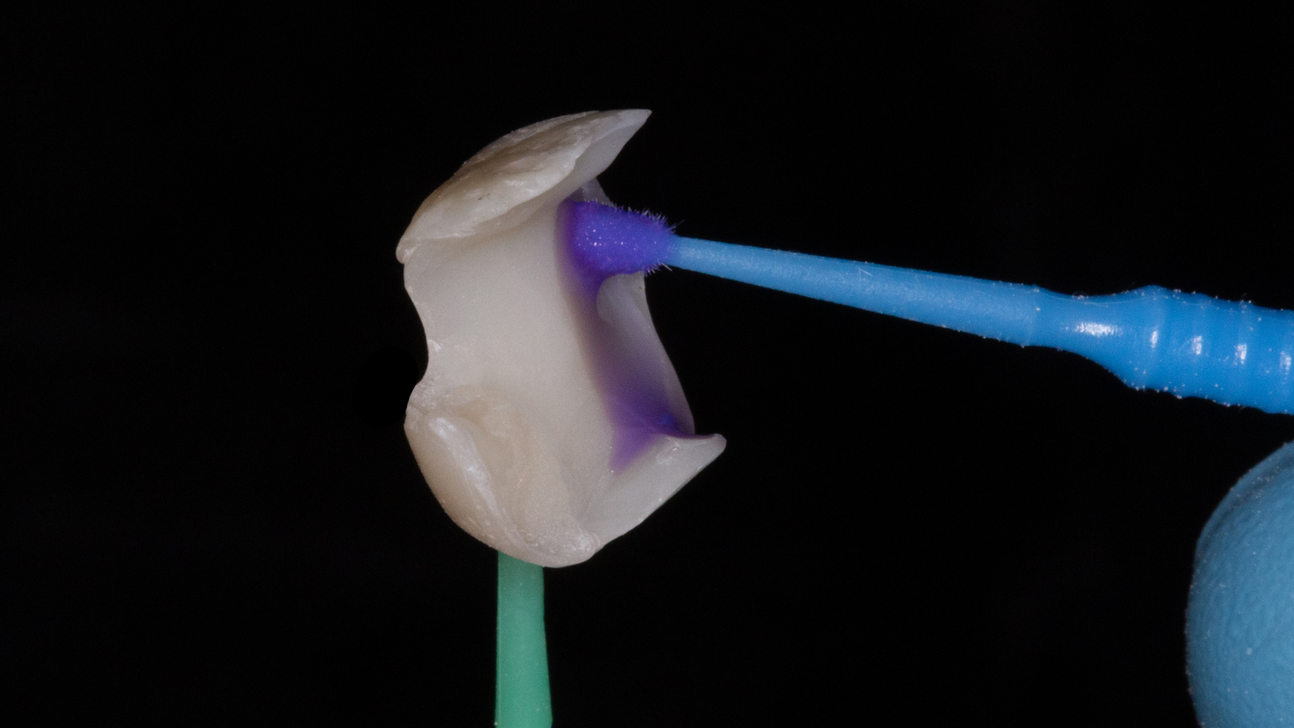

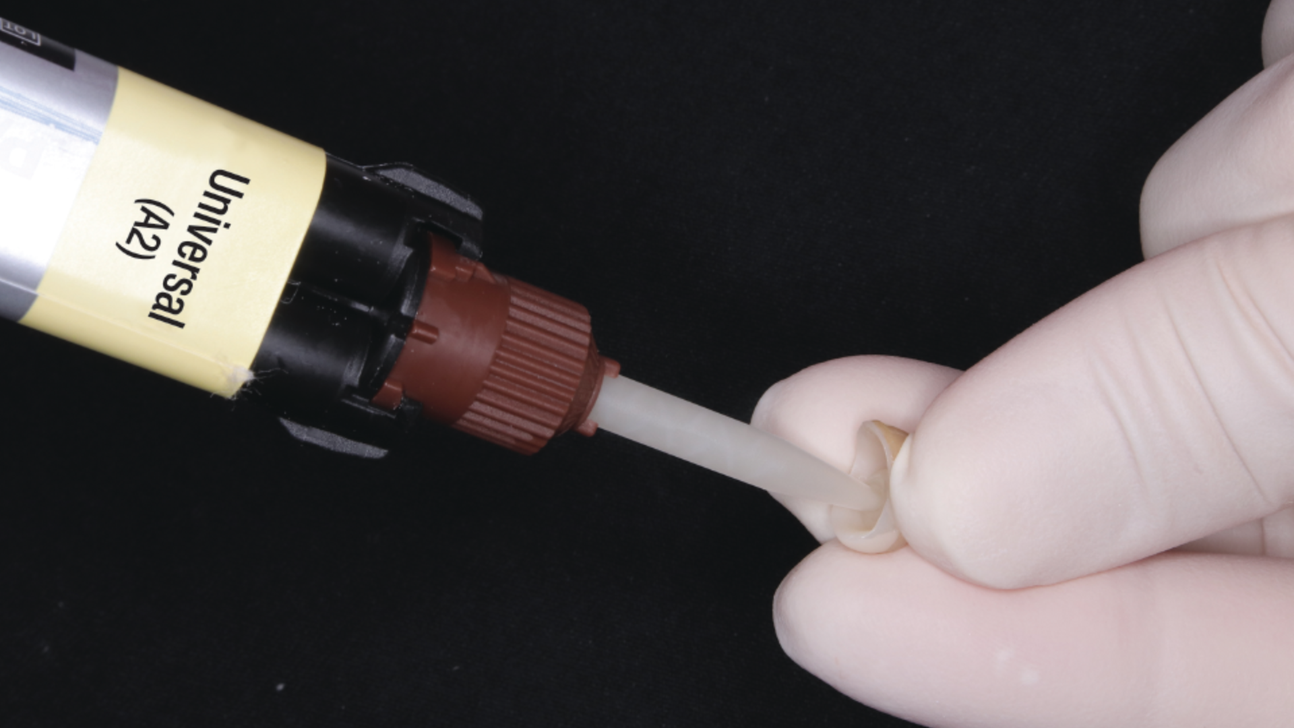

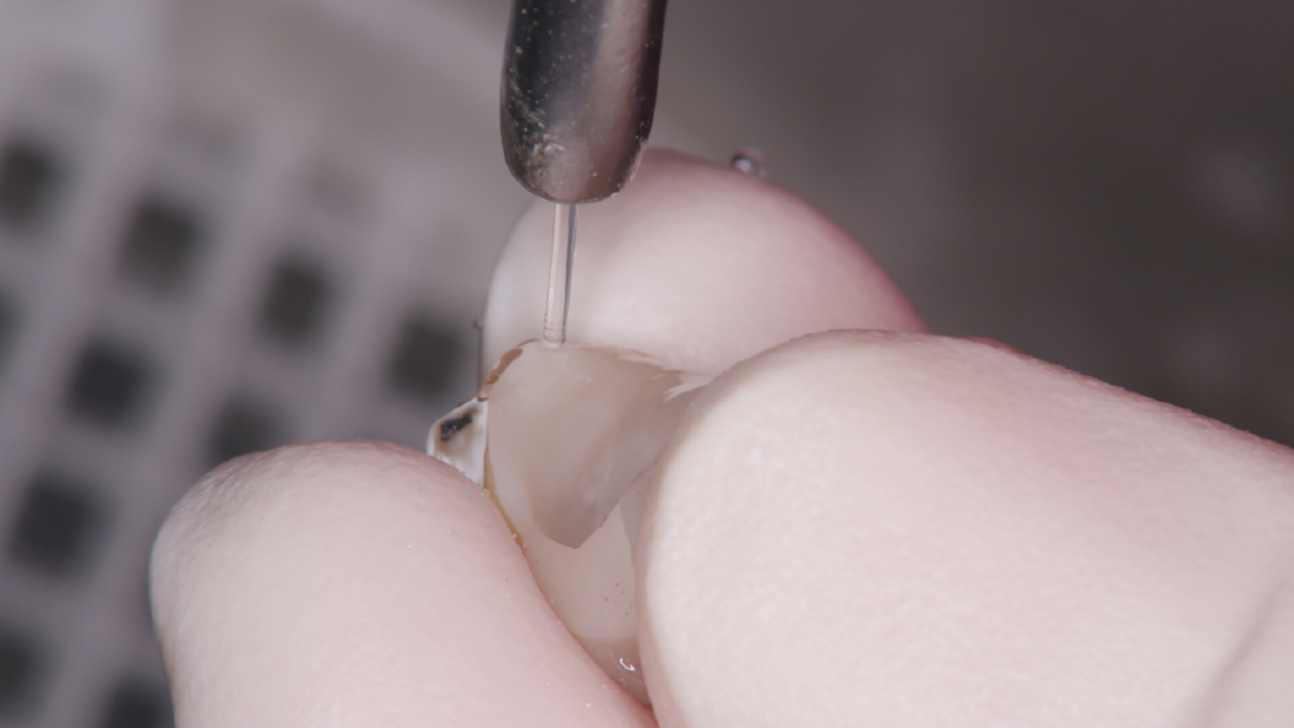

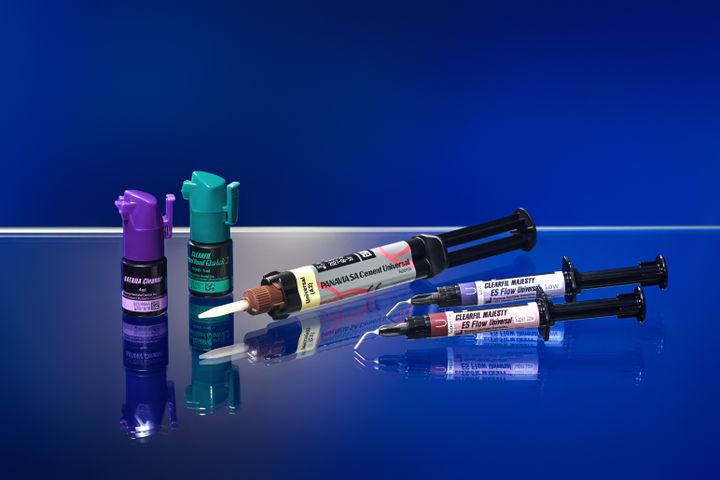

Cementation of lithium disilicate crown Using KATANA™ Cleaner and PANAVIA™ SA Cement Universal Case by Dr. Richard Young Fig. 1. HF etch and try-in complete. Fig. 2. Dispense KATANA™ Cleaner into mixing well. Fig. 3. Rub for 10 seconds, then rinse and dry. Fig. 4. Rub for 10 seconds, then rinse and dry. KATANA™ Cleaner contains MDP based surfactant that breaks down blood and saliva - removing contamination. Fig. 5. Apply cement directly onto restoration (glass ceramic, zirconia, metal or composite resin). Fig. 6. PANAVIA™ SA Cement Universal contains MDP and LCSi monomers, providing for durable bonding even to lithium disilicate restorations. Fig. 7. Tack-cure for 2-5 seconds. Fig. 8. Tack-curing results in nice gel-like-state and excess is removed with ease. FINAL SITUATION Fig. 9. Final situation. Dentist: DR. RICHARD YOUNG Dec 21, 2021
