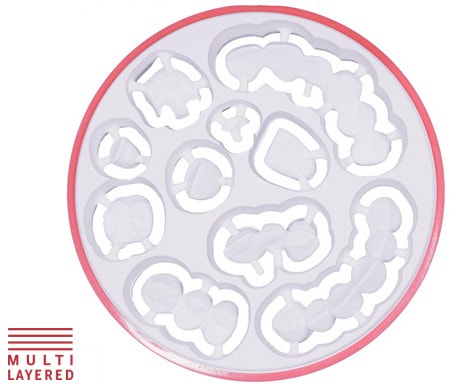

KATANA Zirconia YML (CB)


Un design rivoluzionario per
il disco all-in-one

Il nostro materiale grezzo, con la sua innovativa combinazione di zirconia ad elevata traslucenza e elevata resistenza, ti permetterà di massimizzare le potenzialità del tuo laboratorio.
KATANA™ Zirconia YML permette procedure efficienti, chiare, semplici e precise, senza compromettere la qualità del risultato.

PERCHE’ USARE KATANA™ Zirconia YML?

LA SOLUZIONE ALL-IN-ONE

Con KATANA™ Zirconia YML è possibile coprire l’intera gamma di indicazioni grazie alla combinazione di elevata traslucenza e elevata resistenza.

STRUTTURA MULTISTRATO SENZA SOLUZIONE DI CONTINUITA’

KATANA™ Zirconia YML combina tre diversi materiali grezzi con diverso valore di ittrio per un’equilibrata gradazione di colore/traslucenza e resistenza alla flessione.

RISULTATI ESTETICI SEMPLIFICATI

La tecnologia multistrato senza soluzione di continuità elimina le linee di transizione visibili, enfatizzando il colore naturale e la traslucenza, assicurando una procedura semplificata e veloce.

DEFORMAZIONE DA COTTURA CONTROLLATA

L’adattamento più preciso del restauro al termine del processo di sinterizzazione finale riduce il rischio di dover eseguire rilavorazioni. Nessuno spreco di tempo e di materiali.

RAPIDO PROCESSO DI LAVORAZIONE

Rilavorazioni o casi urgenti? La sinterizzazione rapida (54 minuti) offre nuove opportunità. Finisci il lavoro facilmente in un giorno.

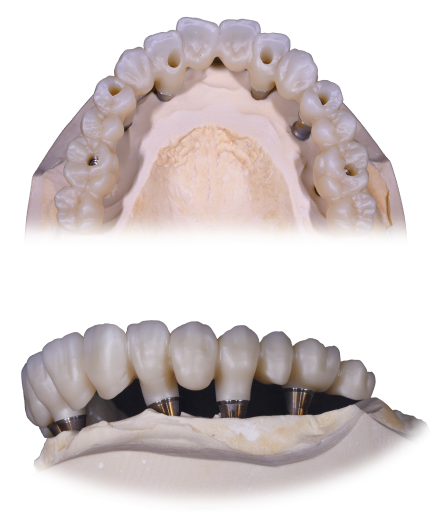

Eseguito con KATANA™ Zirconia YML A3 e CERABIEN™ ZR FC Paste Stain
Per gentile concessione di Odt. Marco Stoppaccioli – L’Aquila

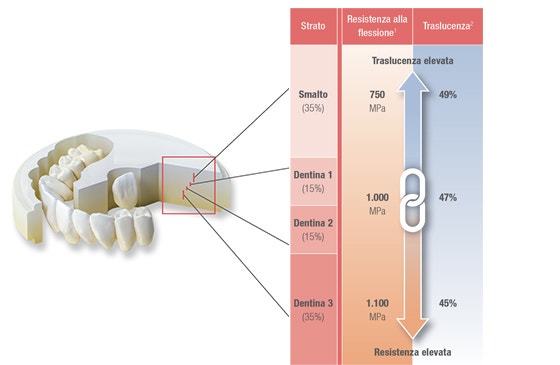

Image - desktop

(..%) spessore di ciascuno strato del disco, espresso in termini percentuali

Condizioni di misurazione:
Test eseguiti sul materiale base (colore bianco).
1 Secondo ISO 6872: 2015, Dimensioni Campione: 3 x 4 x 40 mm
2 Trasmittanza luminosa, illuminante: D65, Spessore del campione: 1,0 mm

Fonte: Kuraray Noritake Dental Inc. I valori numerici variano in funzione delle condizioni.

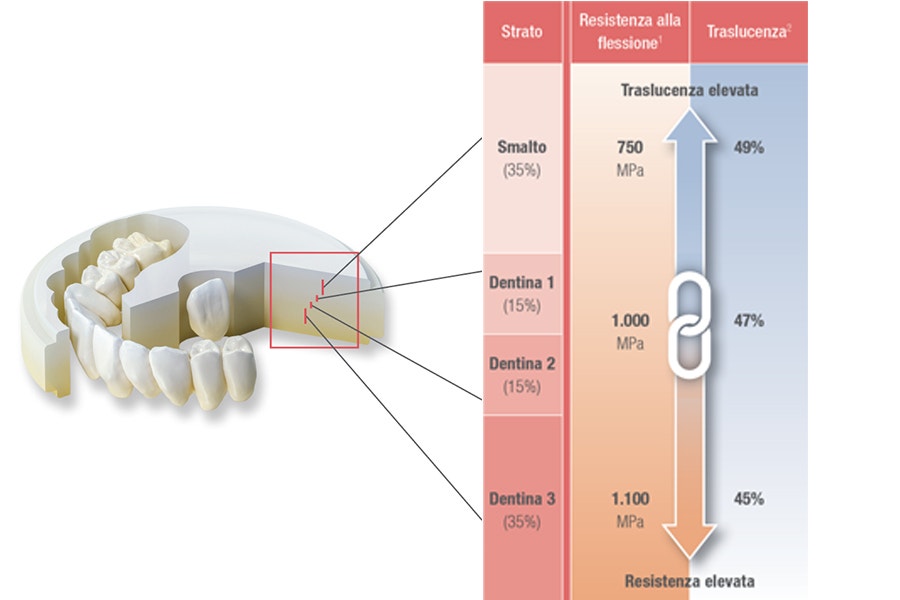

Image - mobile

(..%) spessore di ciascuno strato del disco, espresso in termini percentuali

Condizioni di misurazione:
Test eseguiti sul materiale base (colore bianco).
1 Secondo ISO 6872: 2015, Dimensioni Campione: 3 x 4 x 40 mm
2 Trasmittanza luminosa, illuminante: D65, Spessore del campione: 1,0 mm

Fonte: Kuraray Noritake Dental Inc. I valori numerici variano in funzione delle condizioni.

Innovativa tecnologia multistrato

KATANA™ Zirconia YML è stata sviluppata in base al concetto di “aspetto naturale” (Lifelike), che permette di riprodurre in maniera accurata e non artificiosa il colore e la traslucenza dei denti naturali.

Strato Smalto

Per garantire una traslucenza elevata che si armonizzi perfettamente con i denti anteriori.

Strato Dentina 1

Per garantire traslucenza e colore senza soluzione di continuità rispetto allo Strato Smalto.

Strati Dentina 2, 3

Per garantire profondità e vividezza cromatica riducendo lo sbiancamento.


Versatilità della gamma di applicazioni Possibili

LA SOLUZIONE ALL-IN-ONE

Massima flessibilità del disegno protesico: dalle faccette alle protesi circolari. In base alle esigenze del singolo caso, si potrà scegliere una soluzione monolitica, con tecnica cut-back, o con struttura, con il relativo procedimento di fabbricazione.

  • Ponte a più elementi
  • Ponte a 3 elementi
  • Corone
  • Inlay e onlay
  • Faccette in laminato

SFRUTTARE AL MEGLIO LE CARATTERISTICHE DI KATANA™ Zirconia YML

DEFORMAZIONE DA COTTURA CONTROLLATA

Con la diversa composizione dei suoi strati, è possibile ottenere una contrazione precisa e valori stabili del coefficiente di espansione termica (CTE), grazie al controllo dell’intero processo, dalla raffinazione al processo di pressatura brevettata. Il nostro controllo qualità puntuale e pervasivo, in combinazione con la produzione in-house del materiale grezzo, ci ha consentito di offrire oggi la nostra migliore zirconia di sempre.

Kuraray Noritake Dental si distingue per la sua esclusiva produzione in-house di zirconia grezza per offrire un materiale altamente affidabile.


COME FUNZIONA

Video

Restauri piu’ sottili

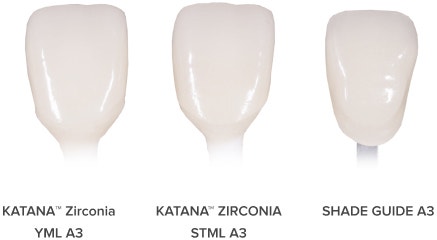

CONFRONTO CON LA ZIRCONIA AD ALTA TRASLUCENZA

Qui di seguito, KATANA™ Zirconia YML e STML sono raffigurate con strato dentina di spessore ridotto a 0,4*mm e 0,8*mm, rispettivamente per la serie YML e per la serie STML. Lo strato dentina di YML può essere portato a spessori inferiori a quelli della zirconia HT, aumentandone ulteriormente la traslucenza.

*Spessore minimo raccomandato dal produttore.

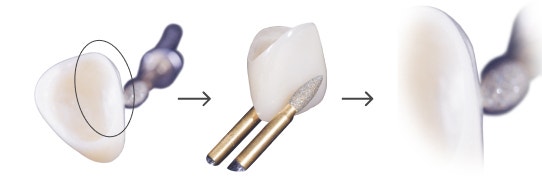

STABILITÀ MARGINALE E MAGGIORE PRECISIONE DELL’ADATTAMENTO

KATANA™ Zirconia YML, con i suoi margini precisi e priva di scheggiature, consente un miglior adattamento marginale. I manufatti protesici più sottili, con la loro elevata precisione dei margini, confermano che KATANA™ Zirconia YML è la scelta ideale.


I margini del restauro, anche quando fresati fino a raggiungere spessori estremamente sottili, continuano a essere lisci e privi di scheggiature.

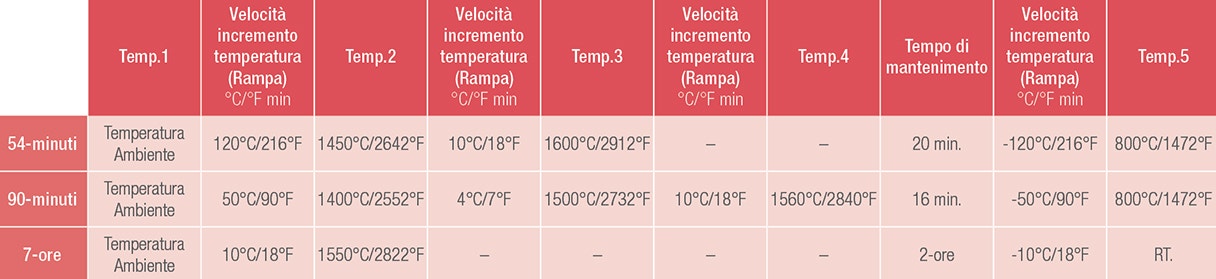

Sinterizzazione veloce di ponti fino a 3 elementi

L’unione tra velocità e qualità d’eccellenza è una caratteristica unica di KATANA™ Zirconia, che la distingue da tutti gli altri prodotti concorrenti.

Chart

Le raccomandazioni di sinterizzazione qui sopra sono solo una linea guida, potrebbero essere necessari degli aggiustamenti in base al tipo di forno.
Se il forno utilizzato non prevede il programma di sinterizzazione da 54 o da 90 minuti, questi due programmi non potranno essere utilizzati.

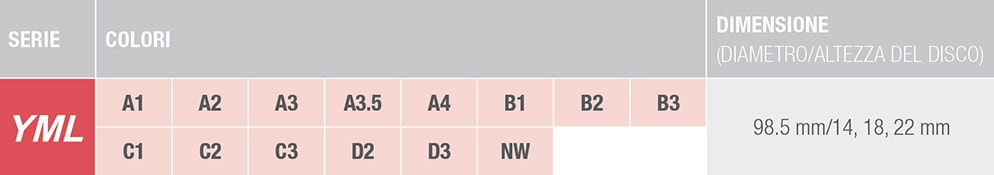

Scelta colore/altezza del disco

Scegliere il colore e l‘altezza più adatti per ottenere una giusta transizione cromatica tra la lunghezza della corona, la dentina e lo smalto.

Chart

Il colore di KATANA™ Zirconia YML dovrebbe essere selezionando tenendo conto della glasura e della lucidatura.
Durante la lucidatura, infatti, il colore tende a scurirsi. Si consiglia quindi di scegliere una tonalità più chiara rispetto a quella finale desiderata

LINEE GUIDA

Consulta il manuale per un corretto uso di KATANA Zirconia

SCARICA IL MANUALE
  • Ottimi apprezzamenti a livello internazionale



    Testimonial

  • Afbeelding Professor Dr. Florian Beuer
  •



    Prof. Dr. Florian Beuer
    Germania

    “Nuova classe di zirconia che combina forza e traslucenza in un unico disco. Garantisce stabilità dove necessario ed estetica dove serve. Il meglio dei due mondi.”

  •



    Odt. Nondas Vlacholoulos
    Grecia

    “Un unico materiale con la massima estetica, resistenza e affidabilità per ogni indicazione.”

  • Afbeelding Nondas Vlacholoulos, MDT
  • Afbeelding Daniele Rondoni, MDT
  •



    Odt. Daniele Rondoni
    Italia

    “L’evoluzione della zirconia è una perfetta combinazione di proprietà ottiche e resistenza. Finalmente possiamo realizzare ponti monolitici di elevata estetica e duraturi nel tempo con KATANA YML, grazie alla nuova tecnologia di Kuraray Noritake Dental.”

  •



    Odt. Andreas Chatzimpatzakis
    Grecia

    “Perchè uso KATANA YML? La risposta è…Υπεροχή (η) [Yperochí ]: Eccellenza…in estetica, resistenza e affidabilità!”

  • Afbeelding Andreas Chatzimpatzakis, MDT
  • Afbeelding Martin Laurik, MDT
  •



    Odt. Martin Laurik
    Estonia

    “L'estetica superiore di KATANA YML è un’ottima opzione per le corone monolitiche, con una resistenza affidabile in situazioni difficili.”

  •



    Odt. Michael Braian
    Svezia

    “Questo è quello che stavo cercando, una zirconia multistrato con una resistenza straordinaria dall’alto in basso. In alcuni casi, non è neanche necessario caratterizzare la superficie.”

  • Afbeelding Michael Braian, MDT

Prodotti

Per ordinare, scegliere tra le seguenti opzioni.

KATANA™ Zirconia YML 14MM
KATANA™ Zirconia YML 14MM
-
+
KATANA™ Zirconia YML 18MM
KATANA™ Zirconia YML 18MM
-
+
KATANA™ Zirconia YML 22MM
KATANA™ Zirconia YML 22MM
-
+

Domande frequenti

Ecco un elenco di risposte alle domande più frequenti.

How do the mechanical properties of the KATANA™ Zirconia series differ from each other?

The existing KATANA™ Zirconia multi-layered materials (KATANA™ Zirconia UTML/ STML/HTML) have a color gradation, while the base material of the respective type is the same for all layers. The strength and translucency are the same for all layers of the respective type.



KATANA™ Zirconia YML is different in this regard. It is the latest KATANA™ multi-layered disc with a balanced combination of color/translucency and flexural strength gradation. Please refer to chart below, for the overview of the mechanical properties and translucency levels of each type of KATANA™ disc.

Gradation map and physical properties of KATANA™ Zirconia YML



Comparison of physical properties of KATANA™ zirconia series



What exactly does “All-In-One” mean?

“All-In-One” means all application range with one disc. KATANA™ Zirconia YML is characterized by a unique raw material combination of highly translucent zirconia with high strength, which are integrated together by an advanced manufacturing technology. As an “All-In-One” solution, KATANA™ Zirconia YML offers exceptional design flexibility, from long-span full-arch monolithic bridge restorations up to highly aesthetic anterior monolithic crown restorations.

What are the recommended and indicated application areas for KATANA™ Zirconia YML?

From complicated full-arch restorations to highly aesthetic demanding anterior single-unit restorations, an exceptional design flexibility is available. In each of these cases, you can choose a monolithic, cut-back or framework design with the appropriate fabrication process, depending on your specific needs.



 Framework

 Long span bridge

 Anterior / posterior crown

 Inlay, onlay

 Laminate veneer

Why is it possible to sinter KATANA™ Zirconia at such a high speed without compromising optical and mechanical properties?

KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials. By using materials that Kuraray Noritake Dental Inc. has developed themselves specifically for the KATANA™ Zirconia series, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.

What shade selection is available for KATANA™ Zirconia YML and in which disc thicknesses and shapes are these available?

KATANA™ Zirconia YML is available in a shade selection of 14 shades, which are adapted to the VITA-classical A1-D4™ Shade Guide. Please refer to the following table overview for more information about shape and disc-thickness.



Shade / Thickness selection



What should be kept in mind when designing restorations with KATANA™ Zirconia YML?

Please observe the following guidelines of applicable minimum wall thickness:





The thickness specifications apply to full zirconia restorations. The thickness of build-up porcelain is not included. The minimum wall thicknesses apply to full zirconia restoration or to frame-work for build-up porcelain restoration. In these cases, 0.4 mm (anterior) or 0.5 mm (posterior) should be kept for the area located in the bottom (lower) half of the disc. If full zirconia veneer restoration is used for combination with the porcelain, 0.8 mm or more should be kept for the area located in the upper half of the disc.



Please observe the following guidelines of applicable cross-section wall thickness:





3 units or less Connector cross-section area can be placed in any layer.



A

The maximum number of pontics is one. Not suitable for a cantilevered bridge. 4 units or more - at least 50% of the connector cross section should be positioned in the bottom (lower) half of the disc.



B

The maximum number of pontics between two abutments (teeth) should not exceed two. For cantilever bridge, keep the number of pontics at one. In this case, the connector cross-section must be at least 12 mm.

What is the sintering schedule of KATANA™ Zirconia YML?

Please observe the following of sintering schedule:





The above sintering recommendations represent only a guideline; depending on each individual furnace and condition, some adjustments might be necessary. If the 54 or 90-minute sintering program is not programmable in your furnace, it is not possible to set the furnace according to one of these schedules.

Is it possible to speed sinter a KATANA™ Zirconia YML long span bridge?

No, this is not possible. 54- or 90-minute sintering is only possible for up to a three-unit bridge restorations.

How is the crystal distribution within KATANA™ Zirconia YML structured?

The body layer has a higher content of tetragonal crystals, while the cubic content gradually increases towards the enamel layer.

Which finalization methods are recommended for KATANA™ Zirconia YML?

KATANA™ Zirconia YML can be finalized by glazing, staining or porcelain application. With an integrated translucency, color and strength gradient, KATANA™ Zirconia YML is designed to achieve highly aesthetic results by simply using the glazing technique. In case of additional color adjustments, characterizations or individualizations are desired, the unique CERABIEN™ ZR (CZR) FC Paste Stain can be used to achieve the final high aesthetic result according to your preferences.

Is it also possible to finalize KATANA™ Zirconia YML restorations by simply polishing them after sintering?

Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with the PEARL SURFACE™ Z (polishing paste). Please note that the shade of KATANA™ Zirconia YML should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.

Is it possible to wet mill KATANA™ Zirconia YML?

It is generally not recommended to wet-mill KATANA™ Zirconia, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce the translucency.

After sintering KATANA™ Zirconia, white spots appeared on the restoration surface. What could be the reason for this?

If a restoration is contaminated before sintering, it will cause white spots on the restoration during the sintering process. Causes for this are for example oily fingers, excessive purging with high air pressure, residuals of silicon point substance that has been applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that has been created during the milling process/removal of sprue. Please take care not to contaminate the restoration.

Is it possible to use coloring liquids from other manufacturers for KATANA™ Zirconia YML?

This is not recommended, as the desired level of translucency or color development cannot be achieved.

Are the sintering schedules for KATANA™ Zirconia the same as other existing zirconia products?

The sintering parameters differ from other manufacturers’ zirconia products. The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).



Note: The material is removed from the furnace at 800°C. High-speed sintering is possible for up to three-unit bridge restorations.

What type of sintering furnace can be used? Is it possible to use a sintering furnace that is not able to reach the maximum sintering temperature or heating rate?

Any sintering furnace capable of setting the KATANA™ Zirconia YML sintering program according to its technical specifications can be used, regardless of the manufacturer. If the KATANA™ Zirconia YML sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.

Is it possible to adjust the vertical position of KATANA™ Zirconia multilayer gradation in order to suit each clinical case more effectively?

Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration. Please refer to our “Handy Chart” as a guideline for this.

When placing the disc in the milling unit, how is it possible to identify the right side from the wrong side of KATANA™ Zirconia disc?

The side on which a “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).
