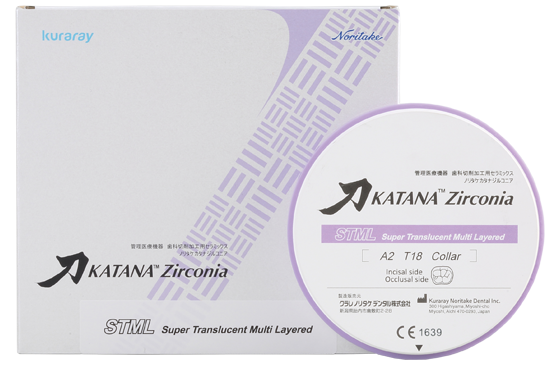

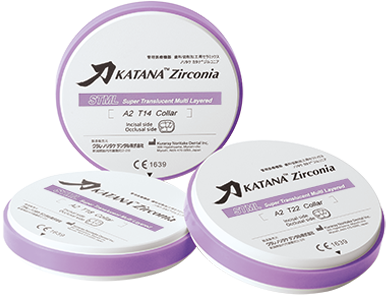

KATANA Zirconia STML NEW POTENTIALS FOR ZIRCONIA IN DENTISTRY.A NEW GENERATION OF ZIRCONIA. 750MPa SUPER STRONG 49% SUPER TRANSLUCENT 54MIN SUPER FAST *Please see image below for detailed information about color, strength and translucency gradation.
KATANA Zirconia STML NEW POTENTIALS FOR ZIRCONIAIN DENTISTRY.A NEW GENERATION OF ZIRCONIA. 750MPa SUPER STRONG 49% SUPERTRANSLUCENT 54MIN SUPER FAST * please see image below for detailed information about color, strength and translucency gradation.
First choice for crowns up to three-unit bridges What are the material properties needed to produce a beautiful monolithic restoration? The material should have a medium to high flexural strength and different levels of translucency in the incisal and cervical area. This is because a lot of light is transmitted in the enamel area, while the color of the abutment tooth should not be revealed. KATANA™ Zirconia STML with its mainly cubic formulation offers exactly these well-balanced properties. Order now

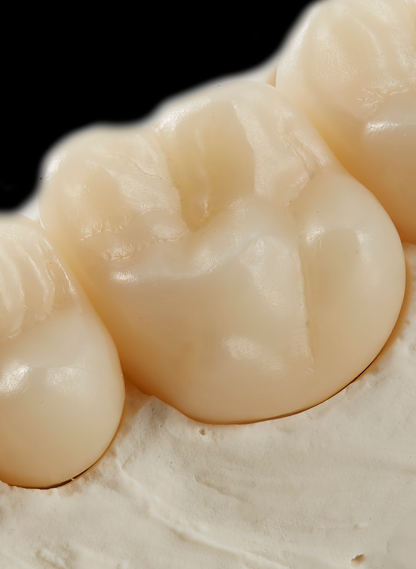

WHY USE KATANA™Zirconia STML? ALL-IN-ONE SOLUTION The entire indication spectrum can be covered due to the combined high translucency and high strength. HIGH FLEXURAL STRENGTH Suitable for a variety of cases within minimum thickness. SUPER TRANSLUCENT The zirconia has a glass like translucency. Different levels of translucency in the incisal and cervical area. Ideal for up to 3 units posterior bridges with a well-balanced combination of chromatic and gradational translucency, which reproduces aesthetic enamel and dentin effects. SIMPLE AESTHETICS Reduced complexity and making it possible to create a highly aesthetic anterior restoration. Ideal for efficient aesthetic anterior teeth restorations. The seamless multi-layered technology eliminates visible transition lines, emphasizing natural color and translucency, ensuring a simplified, time-saving procedure. OPTIMIZED FOR FULL-ZIRCONIA RESTORATIONS Aesthetic full-zirconia restorations can be fabricated efficiently by combining FC Paste Stain with KATANA™ Zirconia STML. FAST PROCESSING Re-make and rush cases? High-speed sintering (54-minute) offers completely new possibilities. Finish the work easily within one day.
(..%) the thickness of each layer in a disc in % Measurement condition:Evaluated by base material (white color).1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40mm2 All light transmittance, illuminant: D65, Thickness of sample: 1.0mmData source: Kuraray Noritake Dental Inc. The numerical value varies according to a condition.
(..%) the thickness of each layer in a disc in % Measurement condition:Evaluated by base material (white color).1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40mm2 All light transmittance, illuminant: D65, Thickness of sample: 1.0mmData source: Kuraray Noritake Dental Inc. The numerical value varies according to a condition.

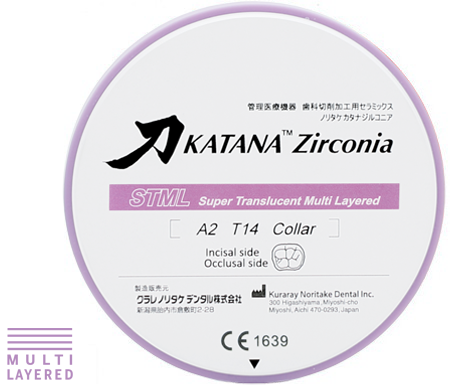

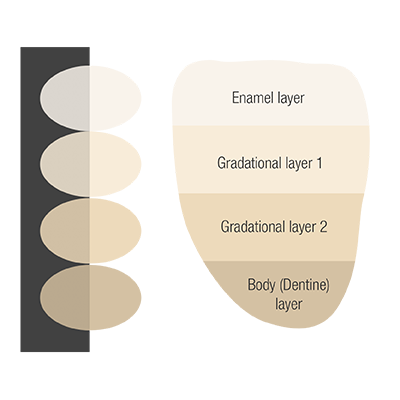

Innovative multi-layered technology KATANA™ Zirconia STML was developed based on the concept of being “lifelike“, that accurately and naturally expresses the color and translucency of natural teeth. Enamel Layer To provide high translucency that harmonizes with the anterior teeth. Body Layer 1 To provide seamless color and translucency towards the Enamel Layer. Body Layer 2, 3 To provide deep and vivid color while reducing whitening.
Well-balanced Translucency and Strength Do full contour zirconia prosthetics look natural? Yes! With KATANA Zirconia STML light is transmitted in the incisal area and blocked in the cervical area. You have the flexibility to make beautiful full contour prosthetics, regardless of the abutment color. It’s a pioneer of zirconia with a color/natural translucency and color gradient. Use KATANA Zirconia STML for your next full contour prosthetics. The results will be so lifelike, you’ll be eager to fabricate more. Long-span bridges Three-unit bridges Crowns Inlays and onlays Laminate veneers
HIGH-SPEED SINTERING UP TO 3-UNIT BRIDGE QUALITY COMBINED WITH VELOCITY Outstanding quality combined with velocity is an absolute unique feature of "KATANA™ Zirconia" over all competitive products. The unique pressing and pre-sintering technique is the key to allow our customers to realize restorations of up to 3-unit bridges without any compromise in terms of aesthetics or mechanical properties using the 54-minute* high-speed sintering program. *The material is removed from the furnace at 800°C/1472°F. A furnace with a configurable firing program is required. TRANSLUCENCY Translucency is gradually decreased from the incisal to the cervical region to increase the masking level in the cervical region.

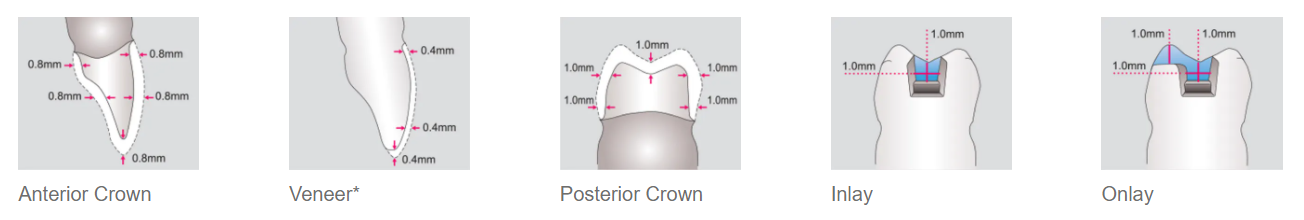

MINIMUM WALL THICKNESS OF KATANA™ Zirconia STML Design a restoration using the suggested guidelines for minimum wall thickness.
*Thickness only for zirconia without porcelain build-up. Keep 0.8mm in case of porcelain build-up.You can reduce to 0.4mm when finishing with glaze and polish.

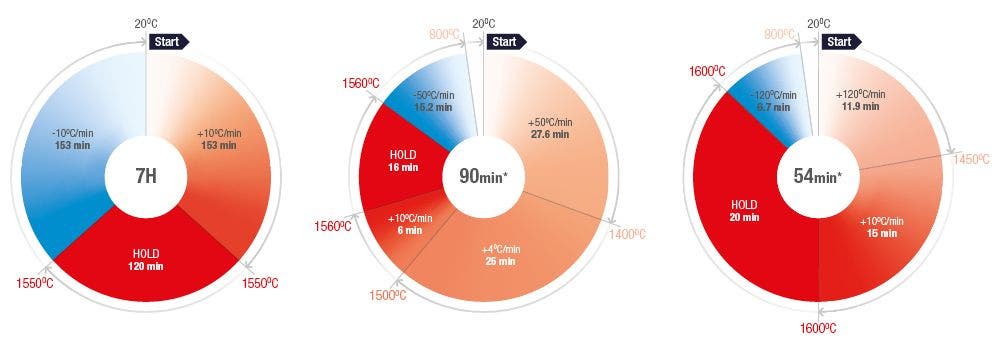

Unified sintering schedule KATANA™ Zirconia STML, UTML, HTML PLUS and YMLcan all be sintered using the same schedule.
The above sintering recommendation is only a guideline; some adjustments may be required depending on each individual furnace.In case of 54, 90-minute sintering, if it cannot be set according to the schedule, it cannot be sintered.
Give your Milling machine more to do EVEN FOR VENEERS NOW Milling full contour prosthetics thanks to natural color and opacity gradients.You can choose two strategies for finishing your milled full contour work. Just glaze. Or if you like to make it even more natural, stain the buccal surface with External Stain (CERABIEN ZR) or LF External Stain (CZR PRESS LF). Cover it with FL Glaze (CERABIEN ZR) to protect the stains and bring your prosthetic to life with natural fluorensence. Making beautiful full contour prosthetics means more business for your milling machine.

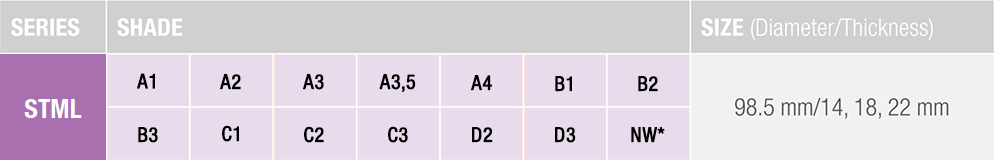

Shade / Thickness selection Select the target shade and the correct disc thickness to achieve anappropriate graduation between crown length, enamel and body (dentin).
