KATANA Zirconia
HTML PLUS
HERONTWIKKELD EN GRENSVERLEGGEND.
STERK, ESTHETISCH, SUPERSNEL SINTEREN.
1.150MPa
SUPERSTERK
|
45%
TRANSLUCENT
|
54MIN.
SUPERSNEL
|
KATANA Zirconia HTML PLUS (CB)
De unieke grondstoffen die gebruikt worden in KATANA™ Zirconia HTML PLUS maken snel sinteren mogelijk en zorgen voor een geoptimaliseerde translucentie. Bovendien met behoud van sterkte. Het resultaat is een betrouwbare onderstructuur, of zelfs een meervoudige monolithische brug met een vorm en kleur die aansluiten op het natuurlijke gebit van de patiënt.
Geschikt voor uiteenlopende werkstukken met minimale wanddikten. U kiest een monolithisch-, cutback- of framedesign, in combinatie met de bijbehorende vervaardigingsprocedure.
*De sterkste binnen de KATANA™ Zirconia-familie (1.150 MPa).
De naadloze multi-layertechnologie voorkomt zichtbare overgangslijnen en optimaliseert de kleurbalans met een natuurlijk voorkomen als resultaat binnen een vereenvoudigde en tijdbesparende procedure.
Een spoedklus? Geen probleem. Supersnel sinteren (54 minuten) biedt de mogelijkheid om nog dezelfde dag een kant en klaar werkstuk te produceren.
De buitengewoon goede pasvorm van gesinterde restauraties verlaagt het productierisico. Geen verspilling van tijd en materialen.
Fotoverantwoording: MDT Daniele Rondoni en MDT Roberto Rossi
KATANA™ Zirconia HTML PLUS is ontwikkeld volgens het 'levensechtheidconcept'. Op precieze en natuurgetrouwe wijze kleur en translucentie van natuurlijke tanden nabootsen.
Voor een hoge translucentie in harmonie met de anterieure dentitie.
Voor een naadloos kleur- en translucentieverloop richting de glazuurlaag.
Voor een diepe en levendige kleur en een verminderde 'witheid'.
Kuraray Noritake Dental onderscheidt zich van de concurrentie door het unieke eigen productieproces van de zirkoniumoxide grondstoffen. Volledige beheersing van alle details van dit proces staat garant voor de superieure eigenschappen van onze disc:
*De sterkste binnen de KATANA™ Zirconia-familie
De combinatie van snelheid en uitstekende kwaliteit, is een absoluut uniek voordeel van KATANA™ Zirconia ten opzichte van alle concurrerende producten. De unieke pers- en voorsintertechniek spelen een sleutelrol, die onze klanten - door supersnel sinteren in 54 minuten - restauraties tot 3-delige sbruggen laat realiseren zonder enige concessie aan esthetiek of mechanische eigenschappen te moeten doen.
*Het werksuk wordt bij 800°C uit de oven gehaald. Er is een oven met een aanpasbaar bakprogramma nodig.

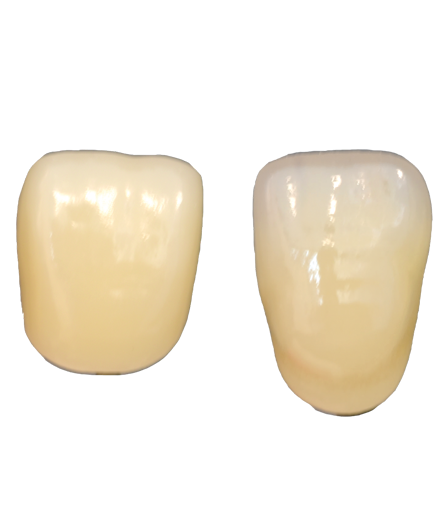

KATANA™ Zirconia HTML PLUS A3 na 54 minuten sinteren (links) t.o.v. kleurstaal A3 (rechts).
Fotobron: Kuraray Noritake Dental Inc.
KATANA™ Zirconia HTML PLUS is volledig in huis ontwikkeld. Daardoor konden wij de translucentie en de kleur optimaliseren om zo te harmoniëren met de natuurlijke situatie
In dit voorbeeld is de kleur van KATANA™ Zirconia HTML PLUS
- zelfs in het gingivale gebied - helder, diep en levendig.
Fotobron: Kuraray Noritake Dental Inc.
KATANA™ Zirconia HTML PLUS, YML, STML en UTML
kunnen stuk voor stuk via hetzelfde schema worden gesinterd.
Bovenstaand sinteradvies is slechts een richtlijn; afhankelijk van de gebruikte oven kan enige aanpassing nodig zijn.
Sinteren in 54 of 90 minuten is uitgesloten wanneer het schema niet als zodanig kan worden ingesteld.

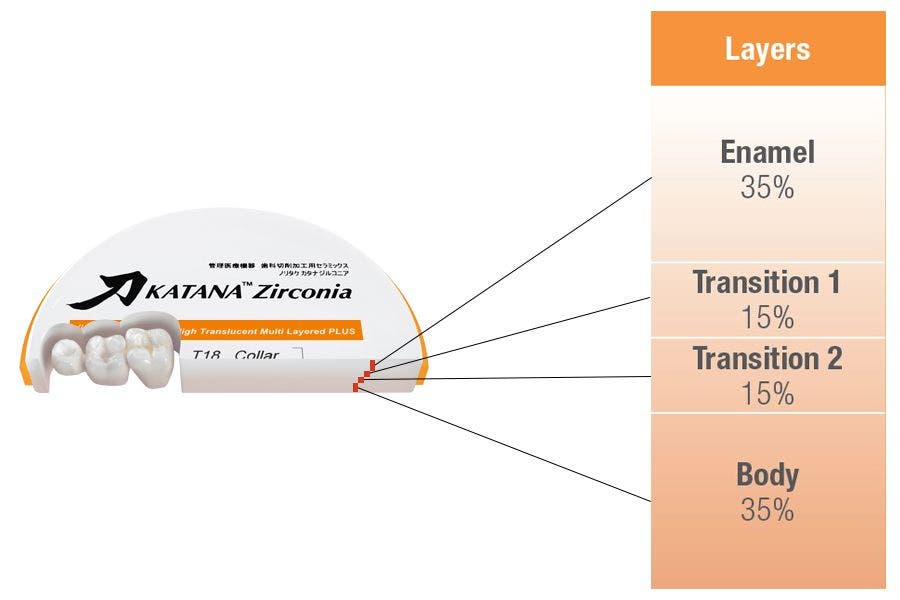

Kies de beoogde kleur en de correcte schijfdikte om het juiste verloop
van glazuur naar body (dentine) te realiseren in verhouding tot de kroonlengte.
Kies voor uw bestelling uit de volgende opties.
Troubleshooting guide KATANA™ Zirconia Discs - Desktop version (EN)
Troubleshooting guide KATANA™ Zirconia Discs - Mobile version (EN)
Brochure KATANA™ Zirconia HTML PLUS (EN)
Technical guide KATANA™ Zirconia Discs (EN)
Brochure KATANA™ Zirconia Discs (EN)
Brochure KATANA™ Zirconia HTML PLUS (NL)
KATANA™ Zirconia Discs processing handbook - Desktop version (EN)
KATANA™ Zirconia Discs processing handbook - Mobile version (EN)
We hebben een lijst samengesteld met antwoorden op de meest relevante vragen.
Compared to KATANA™ Zirconia HTML, KATANA™ Zirconia HTML PLUS has higher translucency, and can optimize colors to harmonize better with the oral cavity. KATANA™ Zirconia HTML PLUS is compatible with the 54-minute sintering program, and can be sintered according to same sintering schedule as UTML, STML and YML.
Photo source: Kuraray Noritake Dental Inc.

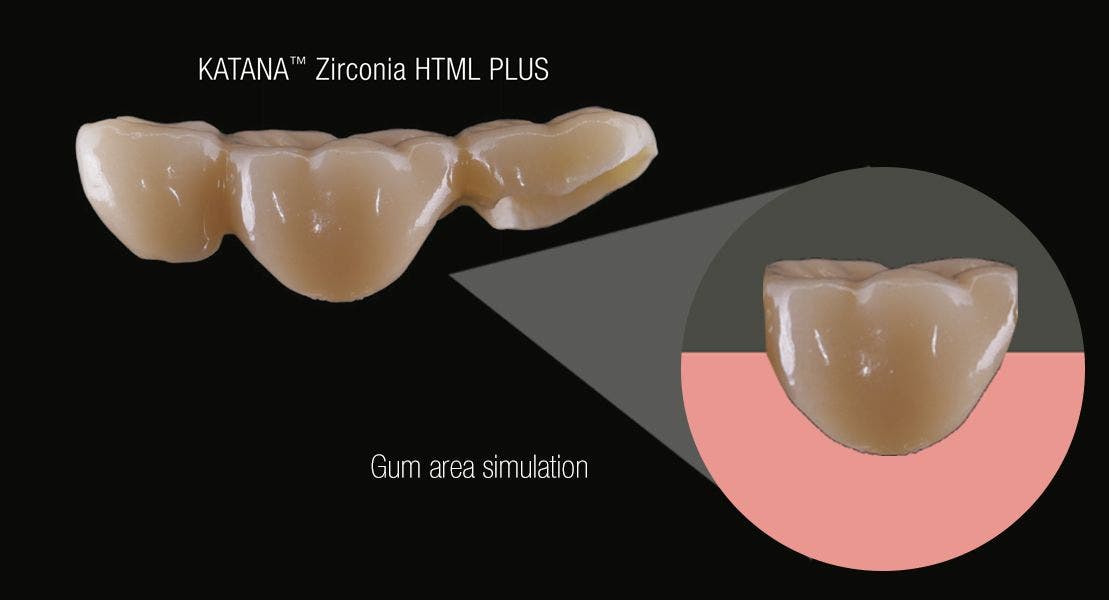

Comparison of color:
KATANA™ Zirconia HTML PLUS A3.5 vs. previous HTML A3.5.
Color of HTML PLUS is brighter, deeper and more vivid even on the gum area.
KATANA™ Zirconia HTML PLUS is made from a completely new raw material developed in-house, allowing us to improve its translucency.
KATANA™ Zirconia HTML PLUS has the same mechanical strength as HTML, while its translucency has been improved compared to HTML. Please refer to the inserted chart below.
Comparison of physical properties of KATANA™ Zirconia series
*Measurement condition: Evaluated by base material (white color)
1 According to ISO 6872: 2015, Sample size: 3 x 4 x 40mm.
2 All light transmittance, illuminant: D65, Thickness of sample: 1.0mm.
Data source: Kuraray Noritake Dental Inc. The numerical value varies according to existing conditions.
KATANA™ Zirconia HTML PLUS, YML, UTML, and STML can be sintered using 54-minute, 90-minute, or standard sintering schedule. UTML and STML can be sintered according to either the new or conventional sintering schedule, but HTML PLUS cannot be sintered according to the conventional HTML sintering schedule.
The above sintering recommendation is only a guideline; some adjustments may be required depending on each individual furnace.
In case of 54, 90-minute sintering, if it cannot be set according to the schedule, it cannot be sintered.
HTML PLUS and HTML are made from different raw materials. The sintering schedule has been adapted to sinter the raw materials of HTML PLUS appropriately.
This is not recommended as you will not be able to achieve your desired level of translucency or mechanical strength.
The measurement conditions differ depending on the manufacturer. Some manufacturers do not disclose this information. We adopt the All Light Transmittance Testing Method (Illuminant: D65, Thickness of sample: 1.0mm) of Tosoh, ltd., which other major manufacturers also adopt.

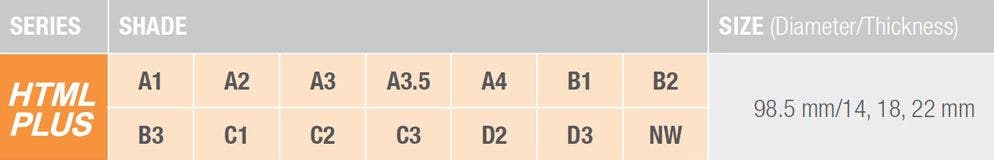

KATANA™ Zirconia HTML PLUS is available in a selection of 14 shades. Please refer to the following table overview for more information about shade and disc thickness.
Shade / Thickness selection
No, this is not possible. 54 or 90-minute sintering is only possible for up to a three-unit bridge restoration.
KATANA™ Zirconia HTML PLUS can be finished by glazing, staining or porcelain application.
COMPATIBLE MATERIALS
CERABIEN™ ZR
√ Glaze and Stain
- FC Paste Stain
- External & Internal Stain
- FL Glaze, VC Glaze
√ Layering porcelain
- Luster, etc.
CZR PRESS LF
√ Stain and Glaze
- LF External & Internal Stain
√ Layering porcelain
- LF Luster, etc.
Of course, this is possible. For this purpose, the desired high-polished finishing can easily be achieved with PEARL SURFACE™ Z (polishing paste).
Please note that the shade of KATANA™ Zirconia HTML PLUS should be pre-set for glazing, due to the fact that zirconia has a tendency to become darker during the polishing process. Therefore, select in advance one shade lighter than the target shade.
KATANA™ Zirconia PLUS has brighter, deeper and more vivid colors allowing it to harmonize better with the oral cavity, as well as, the gum color. The translucency has also been improved made possible by our newly developed inhouse raw materials.
Recommended frame design and points to be kept in mind for KATANA™ Zirconia HTML PLUS are the same as those of HTML. Only the sintering schedule is different. Please use the new sintering schedule for KATANA™ Zirconia HTML PLUS.
It is generally not recommended to wet-mill this product, because the desired aesthetic effect may not be achieved due to the possibility of contamination, which can reduce translucency.
If a restoration is contaminated before sintering, it will cause white spots to appear on the restoration during the sintering process. Causes for this are, for example, oily fingers, excessive purging with high air pressure, residuals of silicon point substance that were applied to the pre-sintered zirconia during adjustment procedures, the use of scanning spray, or the insufficient removal of zirconia powder that were created during the milling process/removal of sprue. Please take care not to contaminate the restoration.
The sintering parameters differ depending on manufacturers. KATANA™ Zirconia UTML, STML, YML and HTML PLUS (excluding HT and LT) can be sintered according to same sintering schedule.
The maximum sintering temperature for the 54-minute program is 1600°C (2912°F), for the 90-minute program 1560°C (2840°F) and for the 7-hour program 1550°C (2822°F).
Please refer to the sintering schedule when sintering restorations.
Any sintering furnace, regardless of the manufacturer, is capable of setting the KATANA™ Zirconia sintering program, on condition that its technical specifications can be used. If the KATANA™ Zirconia sintering program is not programmable in your sintering furnace, it is unfortunately not possible to set the furnace according to this schedule.
Yes, this is possible using several options in your CAD/CAM software. These options allow the designer to change the restoration position within the disc profile to achieve the best gradation map for the restoration.

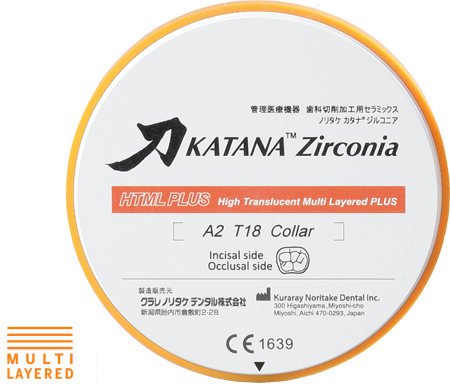

The side on which the “occlusal surface” sketch has been imprinted represents the upper layer (the enamel layer).
The shade of KATANA™ Zirconia multi-layered series should be pre-set for glazing.
KATANA™ Zirconia is characterized by the unique in-house production of zirconia raw materials: By using materials that Kuraray Noritake Dental Inc. has developed by themselves specifically for KATANA™ Zirconia, completely different from those of other competitors, it is possible to realize high-speed sintering without compromising the aesthetic and mechanical properties.
